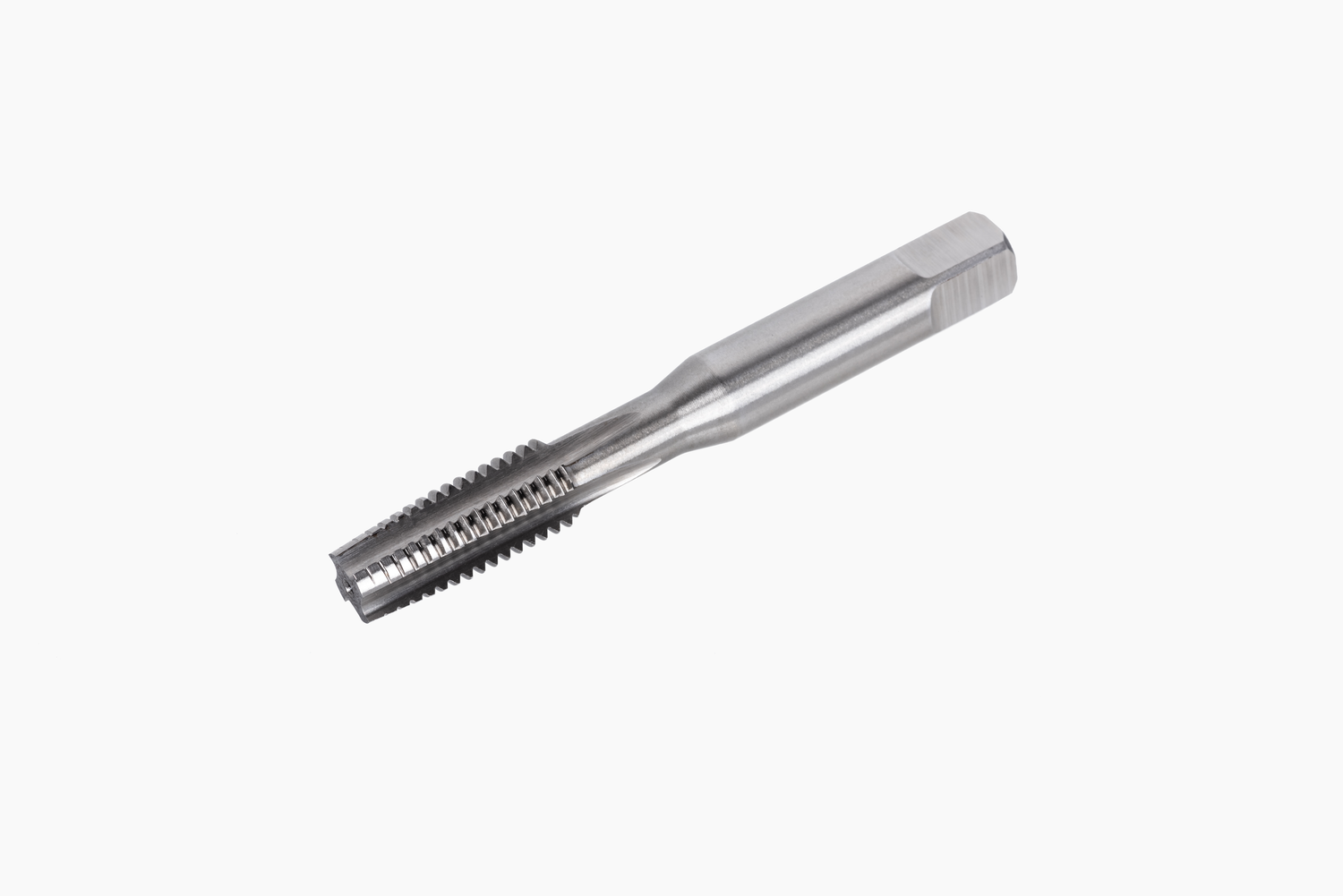

Home » Shop » CUTTING TOOLS (HSS & Carbide) » Threading » DORMER E559UNC5/16NO1 Professional HSS Taps
$14.17$12.88 Ex. GST
Thread size UNC 0.312 inch – 18 TPI, with thread tolerance class 93707.
3603607151570
Description: Value Product name: E559UNC5/16NO1 Thread diameter size (TDZ): 5/16 Threads per inch (TPI): 18 Overall length – millimeter (OAL): 72 mm Thread diameter – millimeter (TD): 7.937 mm Threading length – millimeter (THL): 22 mm Connection diameter – millimeter (DCON MS): 8 mm Clamping width – millimeter (WSC): 6.3 mm Clamping Length – millimeter (LSC): 9 mm Flute count (NOF): 4 Premachined hole diameter – millimeter (PHD): 6.6 mm Usable Length – millimeter (LU): 35 mm
