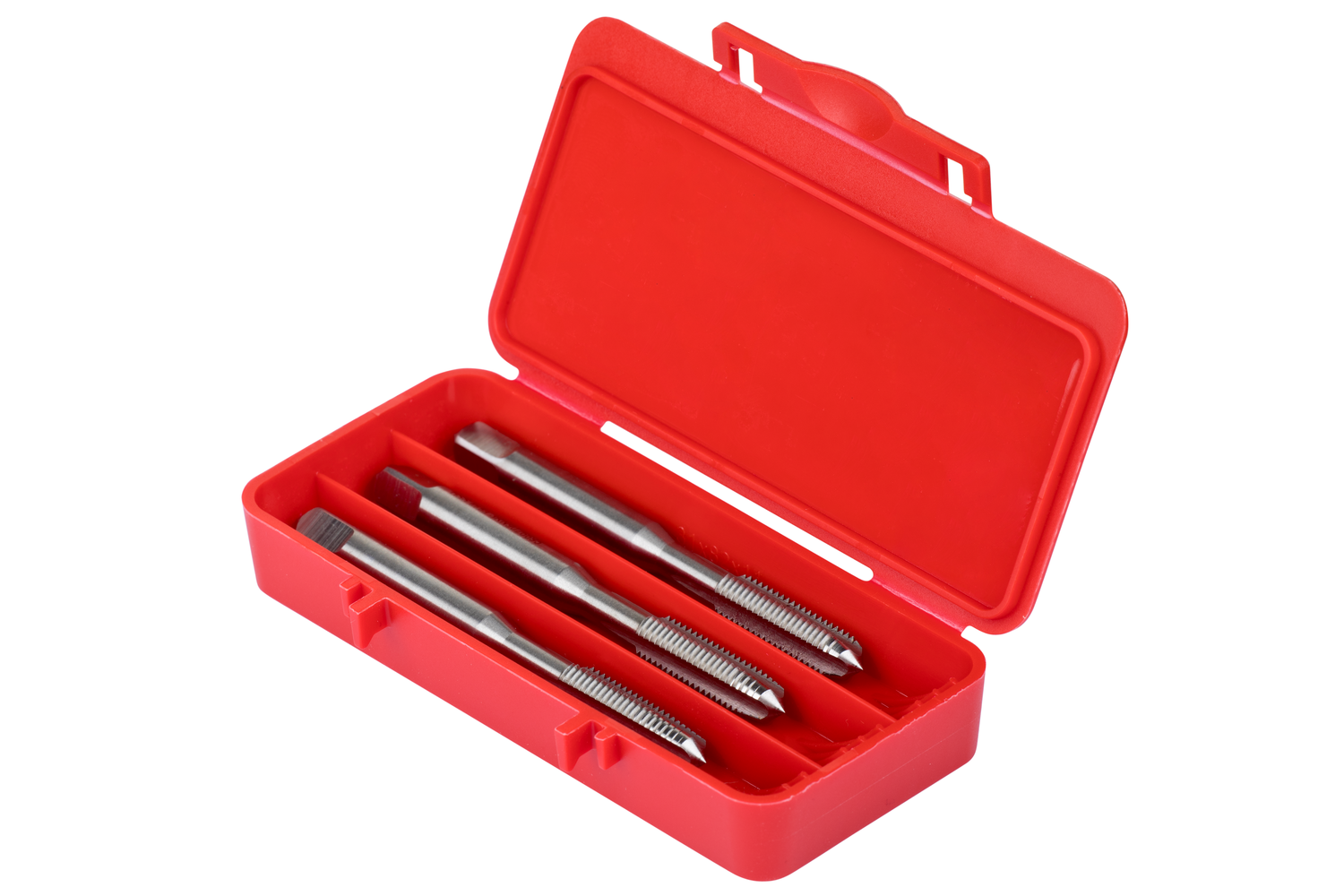

DORMER E559UNF1/4NO6 Professional HSS Taps

Description: Value
Product name: E559UNF1/4NO6
Thread diameter size (TDZ): 1/4
Threads per inch (TPI): 28
Overall length – millimeter (OAL): 66 mm
Thread diameter – millimeter (TD): 6.35 mm
Threading length – millimeter (THL): 19 mm
Connection diameter – millimeter (DCON MS): 6.3 mm
Clamping width – millimeter (WSC): 5 mm
Clamping Length – millimeter (LSC): 8 mm
Flute count (NOF): 3
Premachined hole diameter – millimeter (PHD): 5.5 mm
Usable Length – millimeter (LU): 30 mm
