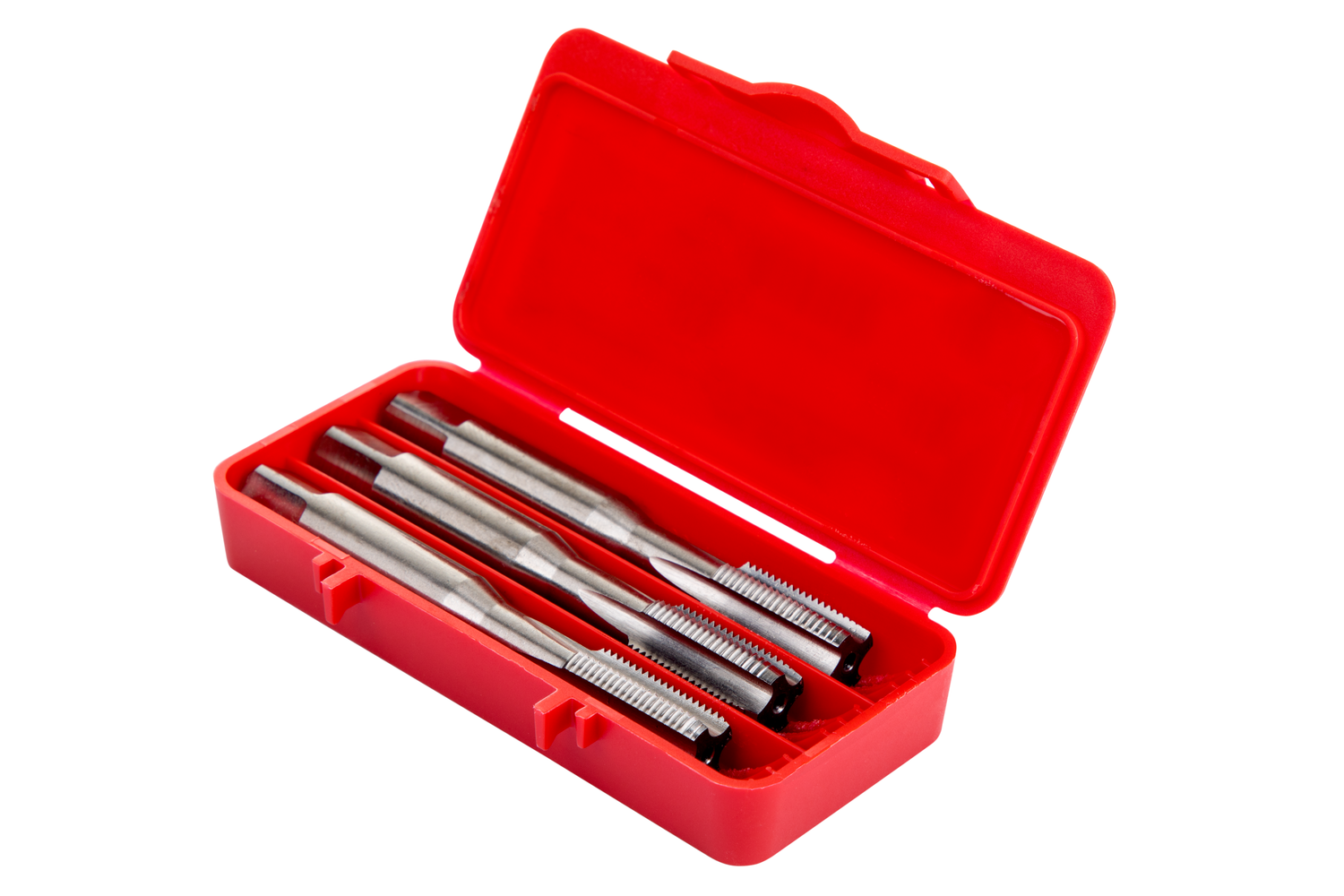

DORMER E559UNF5/16NO6 Professional HSS Taps

Description: Value
Product name: E559UNF5/16NO6
Thread diameter size (TDZ): 5/16
Threads per inch (TPI): 24
Overall length – millimeter (OAL): 72 mm
Thread diameter – millimeter (TD): 7.938 mm
Threading length – millimeter (THL): 22 mm
Connection diameter – millimeter (DCON MS): 8 mm
Clamping width – millimeter (WSC): 6.3 mm
Clamping Length – millimeter (LSC): 9 mm
Flute count (NOF): 4
Premachined hole diameter – millimeter (PHD): 6.9 mm
Usable Length – millimeter (LU): 35 mm
