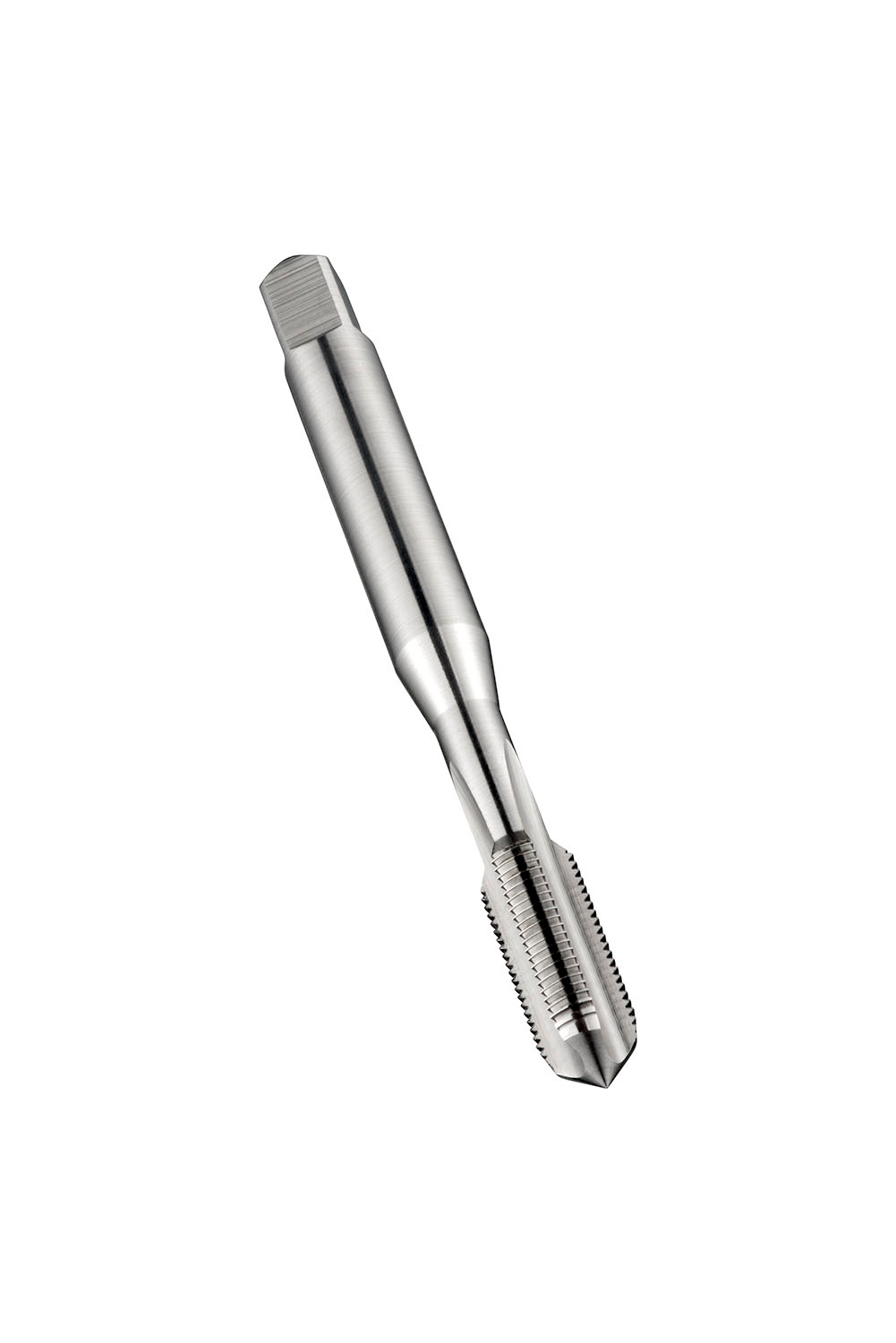

DORMER E5701.1/16X12NO3 ISO Machine Taps

Description: Value
Product name: E5701.1/16X12NO3
Product number (SAP): 86017122
EAN number: 7320760200803
Thread diameter size (TDZ): 1.1/16
Thread diameter – millimeter (TD): 26.988 mm
Threads per inch (TPI): 12
Overall length – millimeter (OAL): 127 mm
Overall length – inch (OAL): 5 inch
Threading length – millimeter (THL): 37 mm
Threading length – inch (THL): 1.4567 inch
Connection diameter – inch (DCON MS): 0.7874 inch
Connection diameter – millimeter (DCON MS): 20 mm
Flute count (NOF): 4
Clamping width – inch (WSC): 0.6299 inch
Clamping width – millimeter (WSC): 16 mm
Premachined hole diameter – inch (PHD): 0.9744 inch
Premachined hole diameter – millimeter (PHD): 24.75 mm
Gross weight – grams: 346.6
ISO: E5701.1/16X12NO3
Ordering code ANSI: E5701.1/16X12NO3
