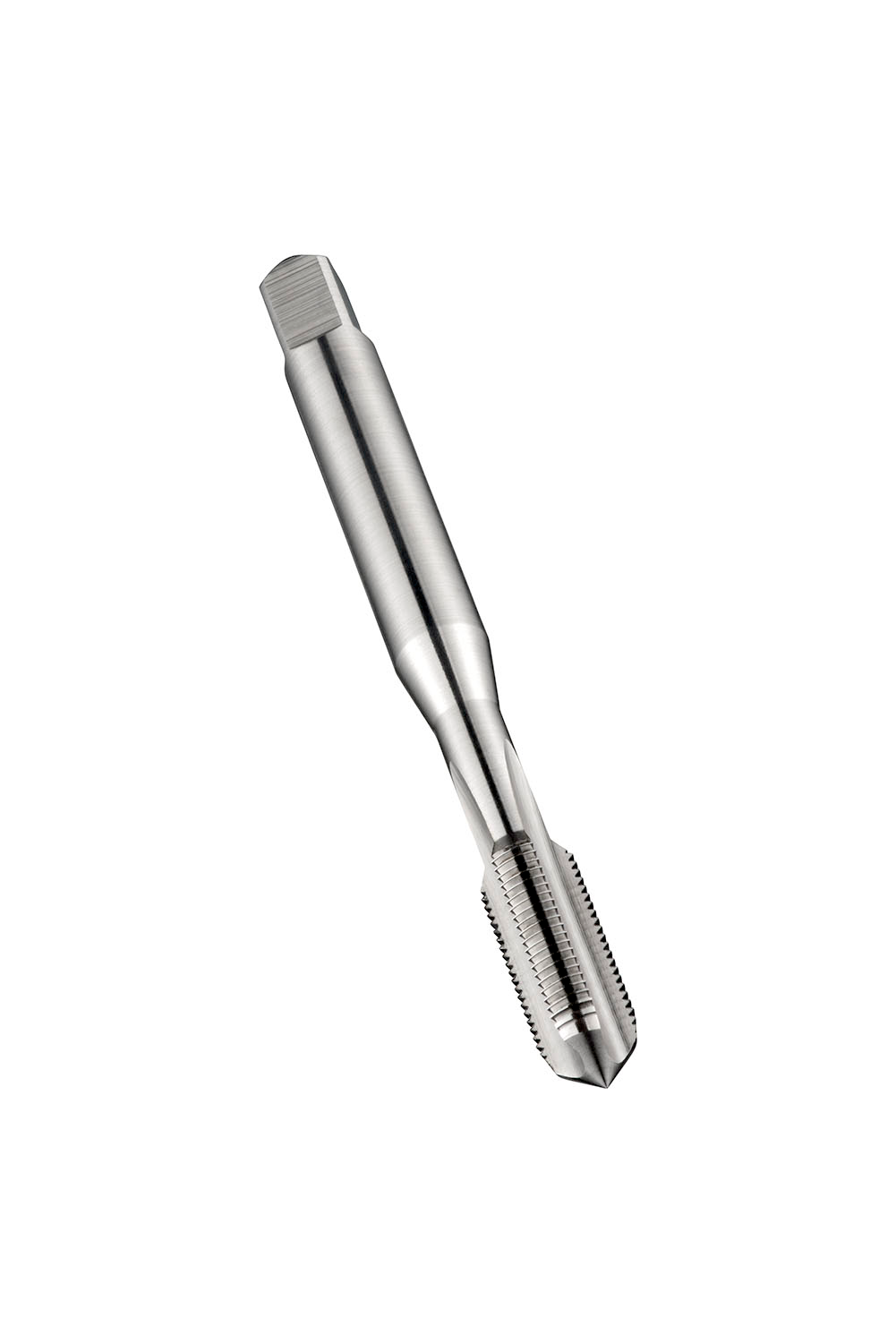

DORMER E5701.1/8X8NO3 ISO Machine Taps

Description: Value
Product name: E5701.1/8X8NO3
Product number (SAP): 86017124
EAN number: 7320760200841
Thread diameter size (TDZ): 1.1/8
Thread diameter – millimeter (TD): 28.575 mm
Threads per inch (TPI): 8
Overall length – millimeter (OAL): 138 mm
Overall length – inch (OAL): 5.4331 inch
Threading length – millimeter (THL): 35 mm
Threading length – inch (THL): 1.378 inch
Connection diameter – inch (DCON MS): 0.7874 inch
Connection diameter – millimeter (DCON MS): 20 mm
Flute count (NOF): 4
Clamping width – inch (WSC): 0.6299 inch
Clamping width – millimeter (WSC): 16 mm
Premachined hole diameter – inch (PHD): 1.0039 inch
Premachined hole diameter – millimeter (PHD): 25.5 mm
Gross weight – grams: 360.1
ISO: E5701.1/8X8NO3
Ordering code ANSI: E5701.1/8X8NO3
