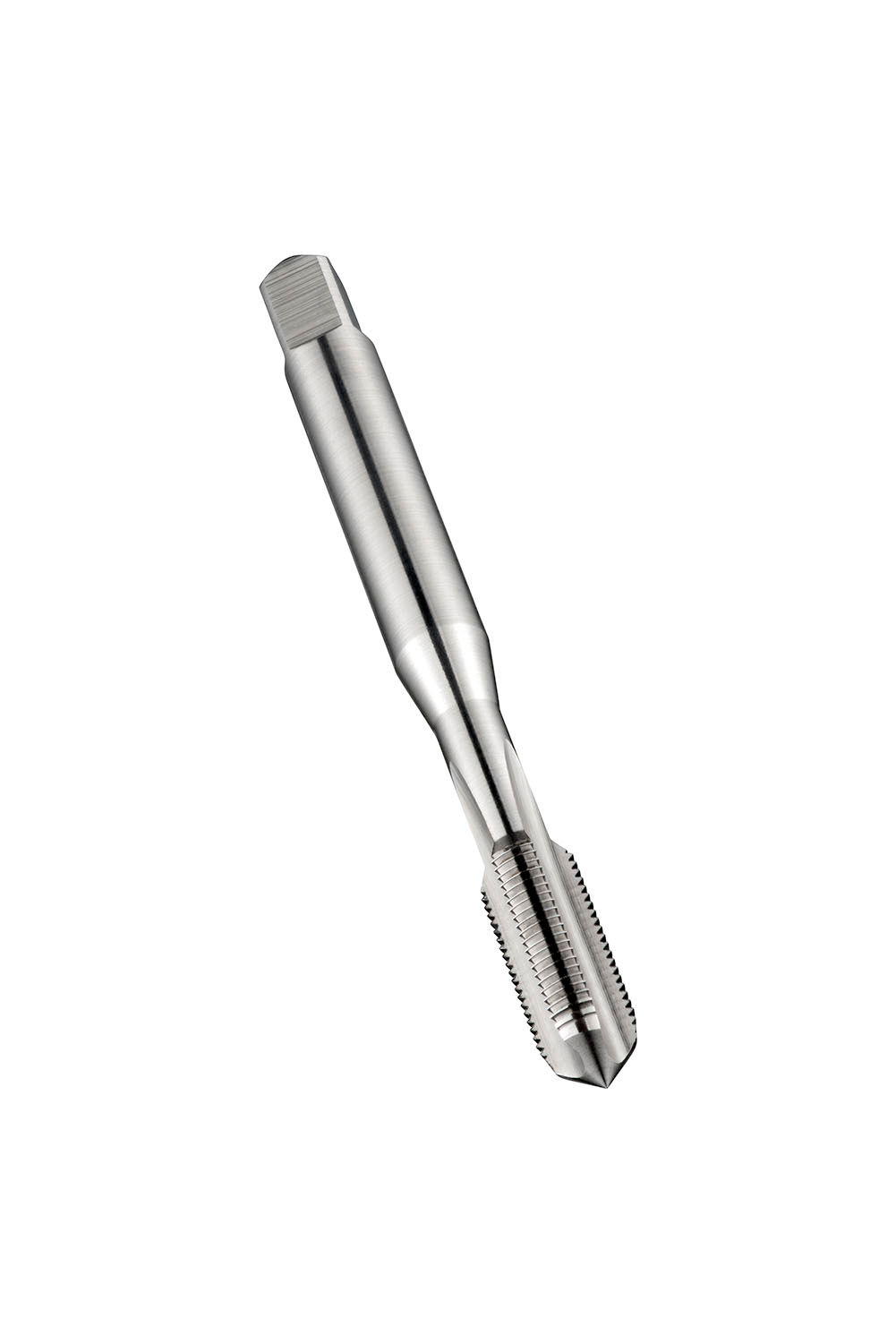

DORMER E5701X14NO3 ISO Machine Taps

Description

Straight flute hand tap NO3 with a 2-3xP plug lead, for Unified National thread UN 1″ with 14 TPI and 2B class of fit, dimensions according to ISO 529 standard with 18.0mm shank and 14.0mm square drive, HSS with bright finish for 1.5xD through or blind hole threading in free machining and plain carbon steel and copper or copper alloys

Additional information

Weight	0.2970 kg
Dimensions
barcode
Additional Information	Description: Value Product name: E5701X14NO3 Product number (SAP): 86017131 EAN number: 7320760200742 Thread diameter size (TDZ): 1" Thread diameter – millimeter (TD): 25.4 mm Threads per inch (TPI): 14 Overall length – millimeter (OAL): 130 mm Overall length – inch (OAL): 5.1181 inch Threading length – millimeter (THL): 36 mm Threading length – inch (THL): 1.4173 inch Connection diameter – inch (DCON MS): 0.7087 inch Connection diameter – millimeter (DCON MS): 18 mm Flute count (NOF): 4 Clamping width – inch (WSC): 0.5512 inch Clamping width – millimeter (WSC): 14 mm Premachined hole diameter – inch (PHD): 0.9252 inch Premachined hole diameter – millimeter (PHD): 23.5 mm Gross weight – grams: 269 ISO: E5701X14NO3 Ordering code ANSI: E5701X14NO3

Need Technical Advice?

Description

Additional information

Brand

DORMER
