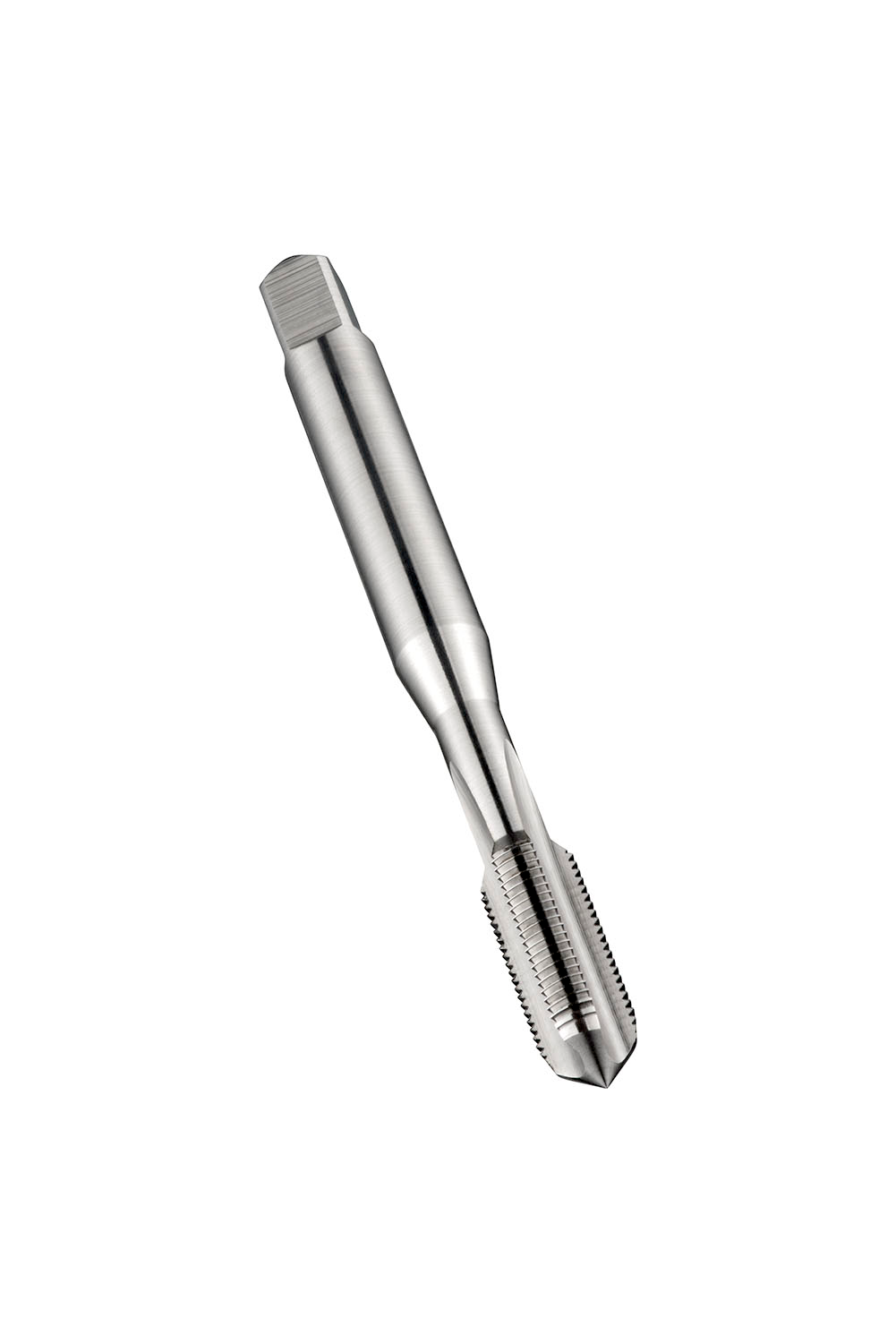

DORMER E5705/16X32NO3 ISO Machine Taps

Description: Value
Product name: E5705/16X32NO3
Product number (SAP): 86017134
EAN number: 7320760200261
Thread diameter size (TDZ): 5/16
Thread diameter – millimeter (TD): 7.938 mm
Threads per inch (TPI): 32
Overall length – millimeter (OAL): 72 mm
Overall length – inch (OAL): 2.8346 inch
Threading length – millimeter (THL): 16 mm
Threading length – inch (THL): 0.6299 inch
Connection diameter – inch (DCON MS): 0.315 inch
Connection diameter – millimeter (DCON MS): 8 mm
Flute count (NOF): 3
Usable Length – inch (LU): 1.1417 inch
Usable Length – millimeter (LU): 29 mm
Clamping width – inch (WSC): 0.248 inch
Clamping width – millimeter (WSC): 6.3 mm
Premachined hole diameter – inch (PHD): 0.2835 inch
Premachined hole diameter – millimeter (PHD): 7.2 mm
Gross weight – grams: 27.2
ISO: E5705/16X32NO3
Ordering code ANSI: E5705/16X32NO3
