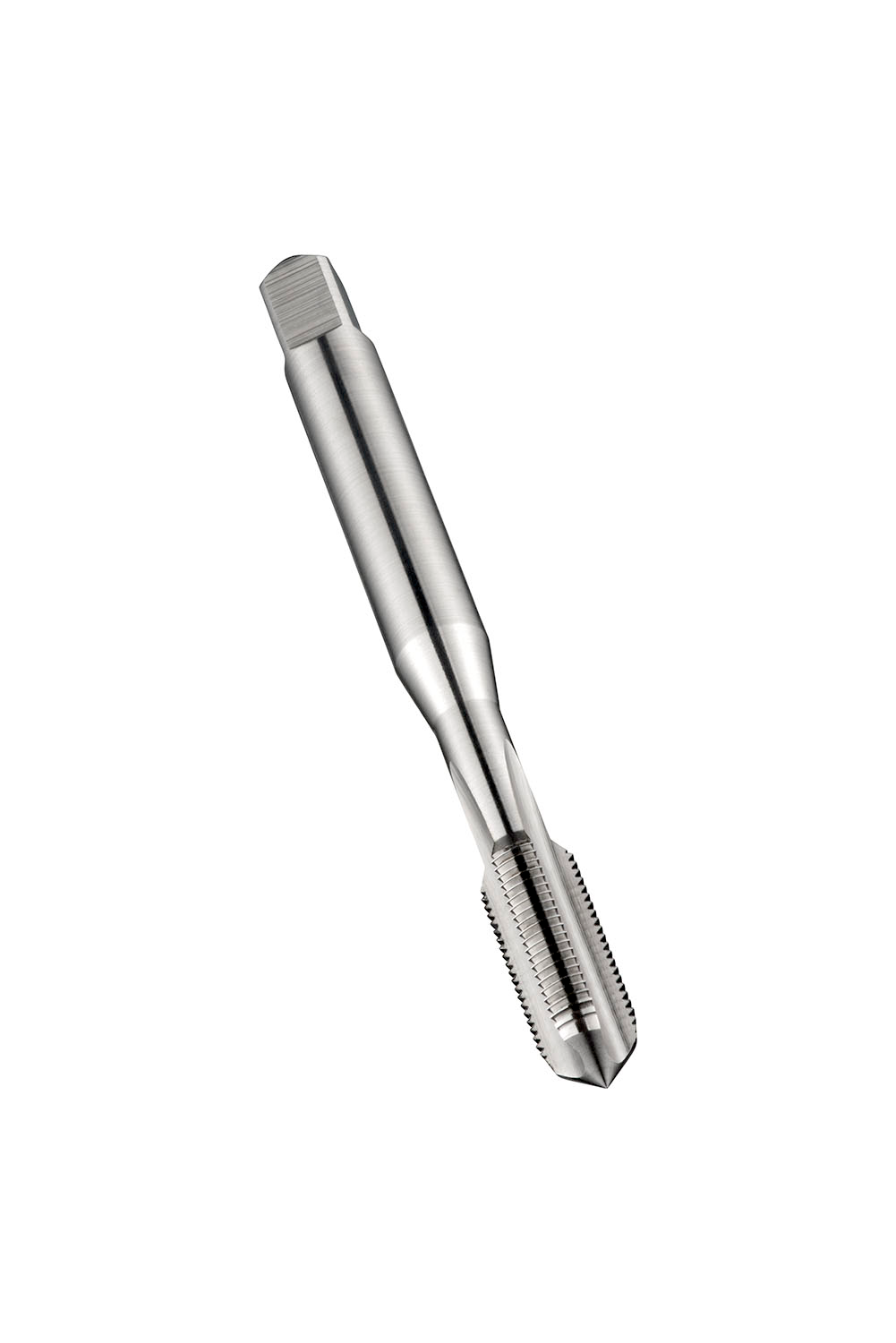

DORMER E5709/16X24NO3 ISO Machine Taps

Description

Straight flute hand tap NO3 with a 2-3xP plug lead, for Unified National thread UN 9/16″ with 24 TPI and 2B class of fit, dimensions according to ISO 529 standard with 11.2mm shank and 9.0mm square drive, HSS with bright finish for 1.5xD through or blind hole threading in free machining and plain carbon steel and copper or copper alloys

Additional information

Weight	0.1441 kg
Dimensions
barcode
Additional Information	Description: Value Product name: E5709/16X24NO3 Product number (SAP): 86017139 EAN number: 7320760200445 Thread diameter size (TDZ): 9/16 Thread diameter – millimeter (TD): 14.288 mm Threads per inch (TPI): 24 Overall length – millimeter (OAL): 95 mm Overall length – inch (OAL): 3.7402 inch Threading length – millimeter (THL): 24 mm Threading length – inch (THL): 0.9449 inch Connection diameter – inch (DCON MS): 0.4409 inch Connection diameter – millimeter (DCON MS): 11.2 mm Flute count (NOF): 4 Clamping width – inch (WSC): 0.3543 inch Clamping width – millimeter (WSC): 9 mm Premachined hole diameter – inch (PHD): 0.5217 inch Premachined hole diameter – millimeter (PHD): 13.25 mm Gross weight – grams: 73 ISO: E5709/16X24NO3 Ordering code ANSI: E5709/16X24NO3

Need Technical Advice?

Description

Additional information

Brand

DORMER
