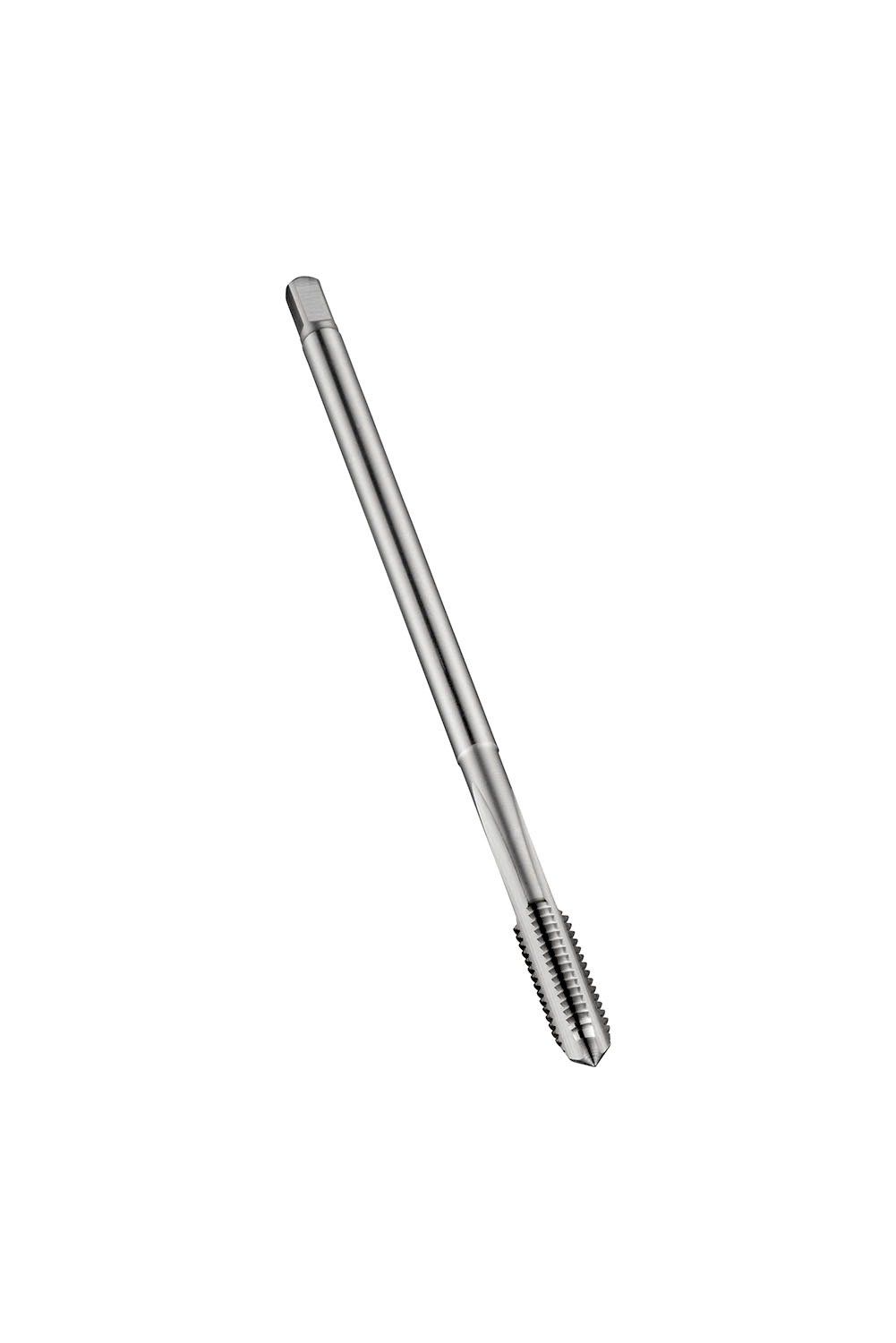

DORMER E600M10NO2 ISO Machine Taps

Description: Value
Product name: E600M10NO2
Product number (SAP): 86017141
EAN number: 7320760155950
Thread diameter size (TDZ): 10
Thread pitch – millimeter (TP): 1.5 mm
Overall length – millimeter (OAL): 108 mm
Overall length – inch (OAL): 4.252 inch
Threading length – millimeter (THL): 19 mm
Threading length – inch (THL): 0.748 inch
Connection diameter – inch (DCON MS): 0.315 inch
Connection diameter – millimeter (DCON MS): 8 mm
Flute count (NOF): 3
Clamping width – inch (WSC): 0.248 inch
Clamping width – millimeter (WSC): 6.3 mm
Clamping Length – inch (LCS): 0.3543 inch
Clamping Length – millimeter (LSC): 9 mm
Premachined hole diameter – inch (PHD): 0.3346 inch
Premachined hole diameter – millimeter (PHD): 8.5 mm
Gross weight – grams: 46.4
ISO: E600M10NO2
Ordering code ANSI: E600M10NO2
