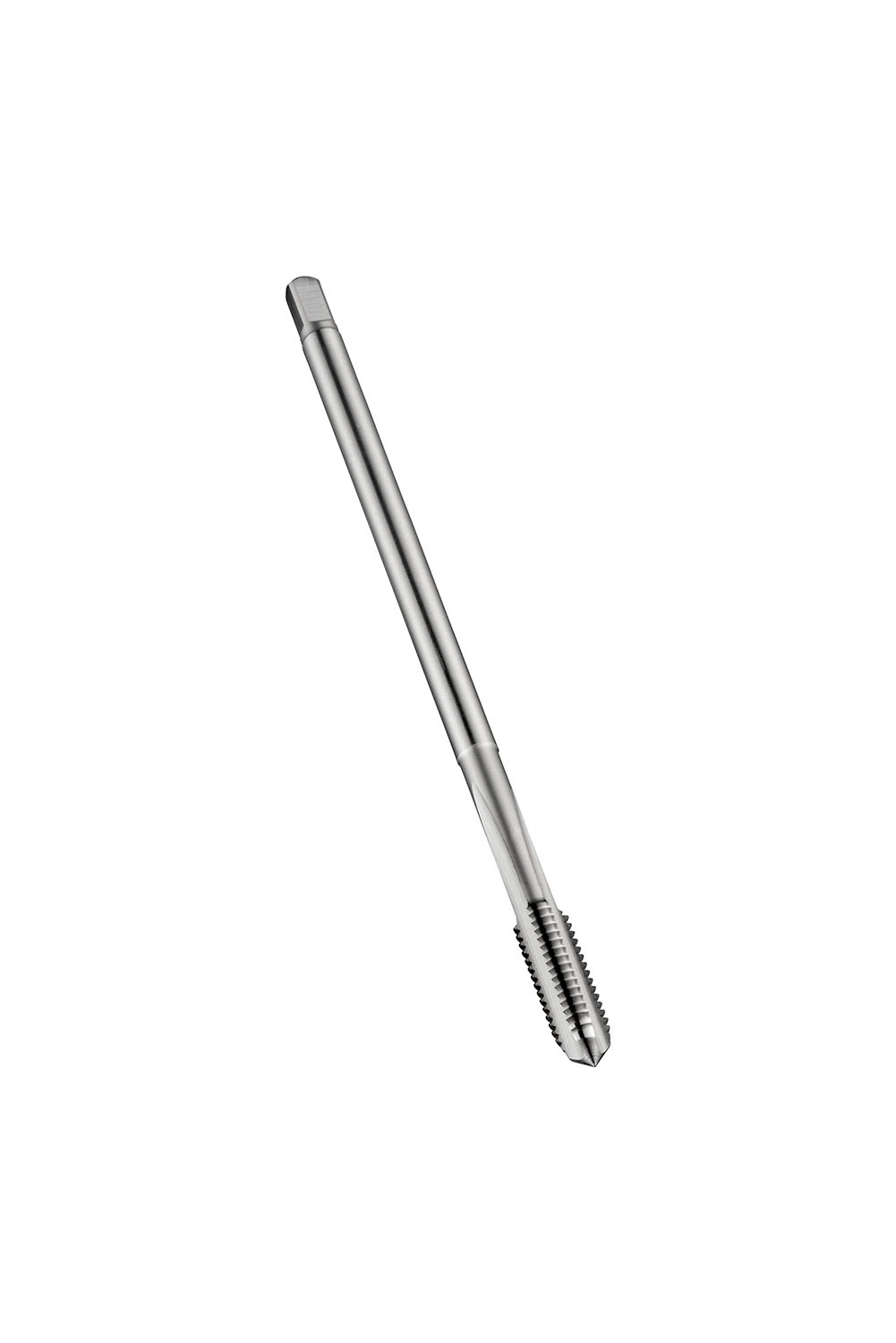

DORMER E600M20NO3 ISO Machine Taps

Description: Value
Product name: E600M20NO3
Product number (SAP): 86017154
EAN number: 7320760156056
Thread diameter size (TDZ): 20
Thread pitch – millimeter (TP): 2.5 mm
Overall length – millimeter (OAL): 149 mm
Overall length – inch (OAL): 5.8661 inch
Threading length – millimeter (THL): 30 mm
Threading length – inch (THL): 1.1811 inch
Connection diameter – inch (DCON MS): 0.5512 inch
Connection diameter – millimeter (DCON MS): 14 mm
Flute count (NOF): 4
Clamping width – inch (WSC): 0.4409 inch
Clamping width – millimeter (WSC): 11.2 mm
Clamping Length – inch (LCS): 0.5512 inch
Clamping Length – millimeter (LSC): 14 mm
Premachined hole diameter – inch (PHD): 0.689 inch
Premachined hole diameter – millimeter (PHD): 17.5 mm
Gross weight – grams: 185.3
ISO: E600M20NO3
Ordering code ANSI: E600M20NO3
