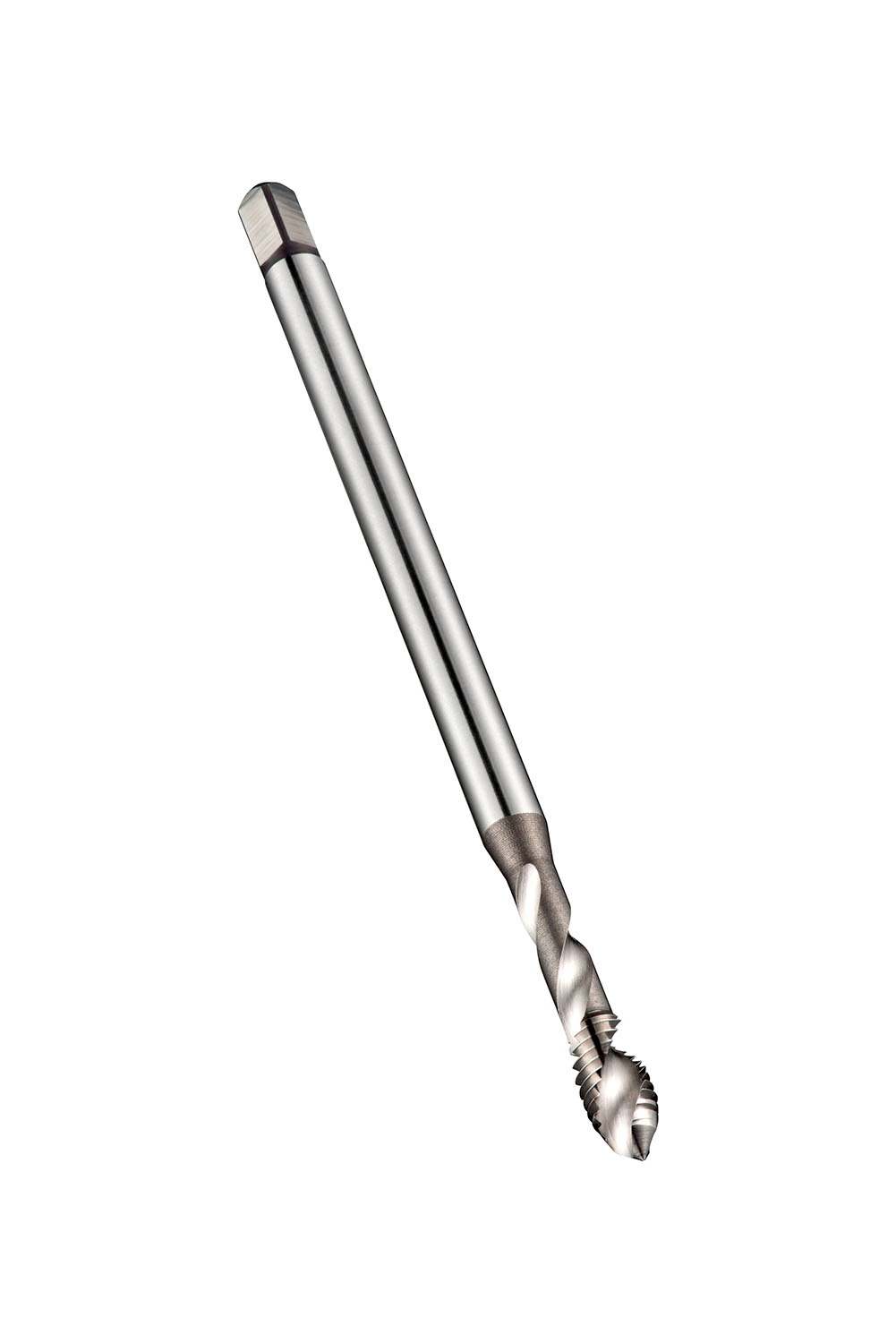

DORMER E605M10 ISO Machine Taps

Description

Long shank spiral flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M10 with 1.50 mm pitch and 6H class of fit, dimensions according to ISO 2283 standard with 8.0mm shank and 6.3mm square drive, powder metallurgical HSS-E with bright finish and 40° helix angle for 2xD blind hole threading in plain carbon steel

Additional information

Weight	0.1320 kg
Dimensions
barcode
Additional Information	Description: Value Product name: E605M10 Product number (SAP): 86017176 EAN number: 7320760123898 Thread diameter size (TDZ): 10 Thread pitch – millimeter (TP): 1.5 mm Overall length – millimeter (OAL): 108 mm Overall length – inch (OAL): 4.252 inch Threading length – millimeter (THL): 14 mm Threading length – inch (THL): 0.5512 inch Connection diameter – inch (DCON MS): 0.315 inch Connection diameter – millimeter (DCON MS): 8 mm Flute count (NOF): 3 Clamping width – inch (WSC): 0.248 inch Clamping width – millimeter (WSC): 6.3 mm Clamping Length – inch (LCS): 0.3543 inch Clamping Length – millimeter (LSC): 9 mm Premachined hole diameter – inch (PHD): 0.3346 inch Premachined hole diameter – millimeter (PHD): 8.5 mm Gross weight – grams: 44.4 ISO: E605M10 Ordering code ANSI: E605M10

Need Technical Advice?

Description

Additional information

Brand

DORMER
