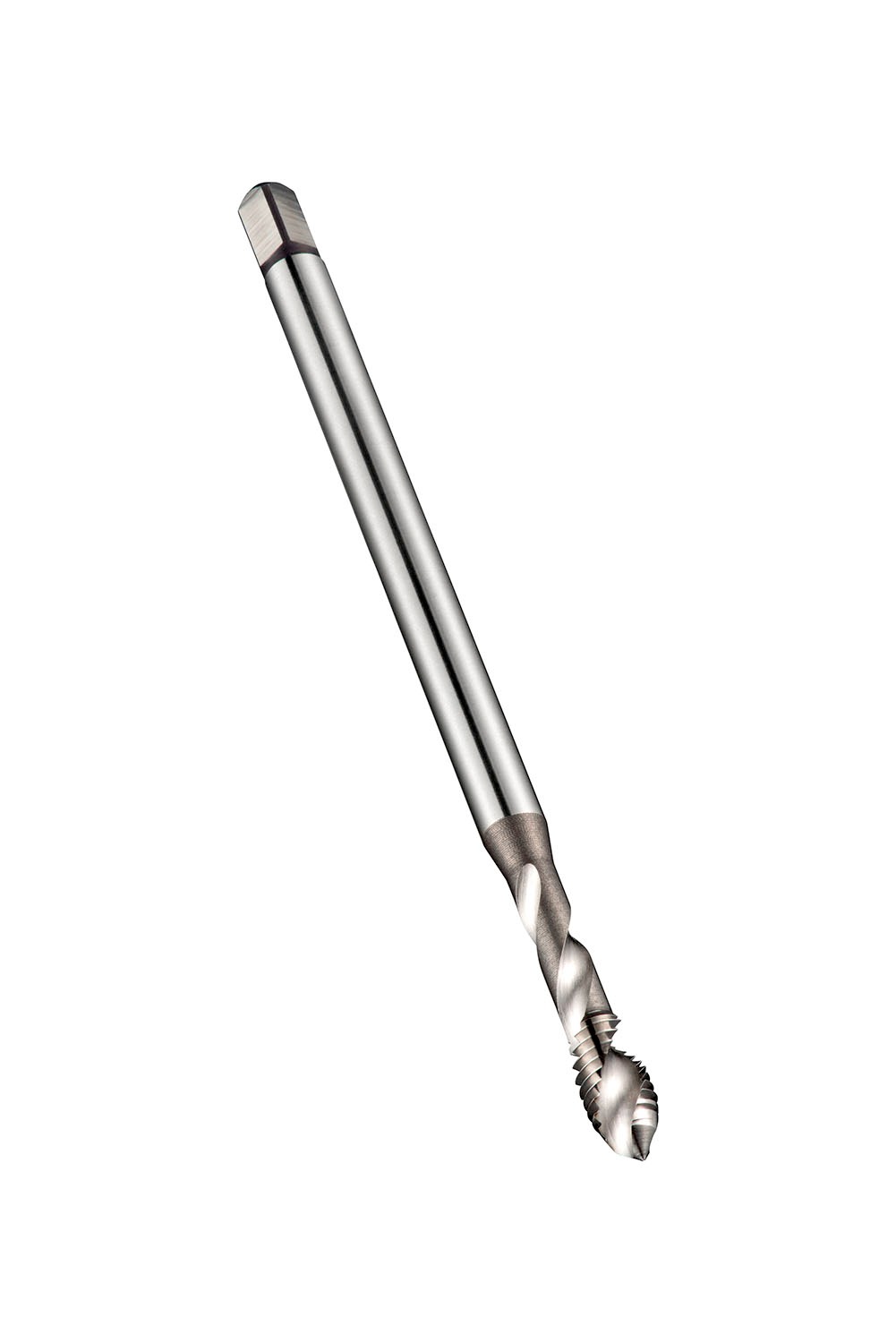

DORMER E605M16 ISO Machine Taps

Description: Value
Product name: E605M16
Product number (SAP): 86017179
EAN number: 7320760123928
Thread diameter size (TDZ): 16
Thread pitch – millimeter (TP): 2 mm
Overall length – millimeter (OAL): 137 mm
Overall length – inch (OAL): 5.3937 inch
Threading length – millimeter (THL): 25 mm
Threading length – inch (THL): 0.9843 inch
Connection diameter – inch (DCON MS): 0.4921 inch
Connection diameter – millimeter (DCON MS): 12.5 mm
Flute count (NOF): 3
Clamping width – inch (WSC): 0.3937 inch
Clamping width – millimeter (WSC): 10 mm
Clamping Length – inch (LCS): 0.5118 inch
Clamping Length – millimeter (LSC): 13 mm
Premachined hole diameter – inch (PHD): 0.5512 inch
Premachined hole diameter – millimeter (PHD): 14 mm
Gross weight – grams: 124.8
ISO: E605M16
Ordering code ANSI: E605M16
