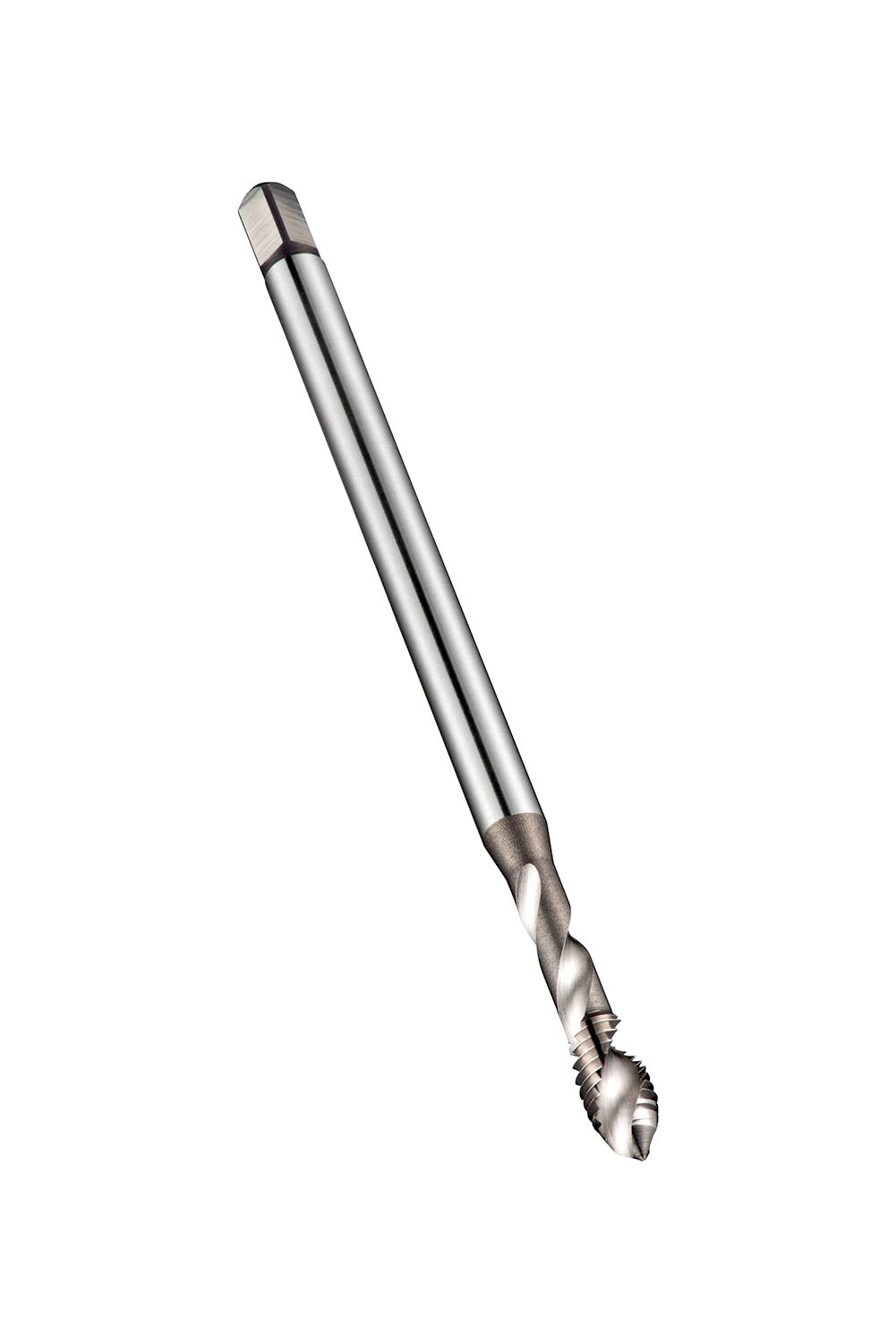

DORMER E605M8 ISO Machine Taps

Description: Value
Product name: E605M8
Product number (SAP): 86017185
EAN number: 7320760123881
Thread diameter size (TDZ): 8
Thread pitch – millimeter (TP): 1.25 mm
Overall length – millimeter (OAL): 97 mm
Overall length – inch (OAL): 3.8189 inch
Threading length – millimeter (THL): 12 mm
Threading length – inch (THL): 0.4724 inch
Connection diameter – inch (DCON MS): 0.248 inch
Connection diameter – millimeter (DCON MS): 6.3 mm
Flute count (NOF): 3
Clamping width – inch (WSC): 0.1969 inch
Clamping width – millimeter (WSC): 5 mm
Clamping Length – inch (LCS): 0.315 inch
Clamping Length – millimeter (LSC): 8 mm
Premachined hole diameter – inch (PHD): 0.2677 inch
Premachined hole diameter – millimeter (PHD): 6.8 mm
Gross weight – grams: 26.8
ISO: E605M8
Ordering code ANSI: E605M8
