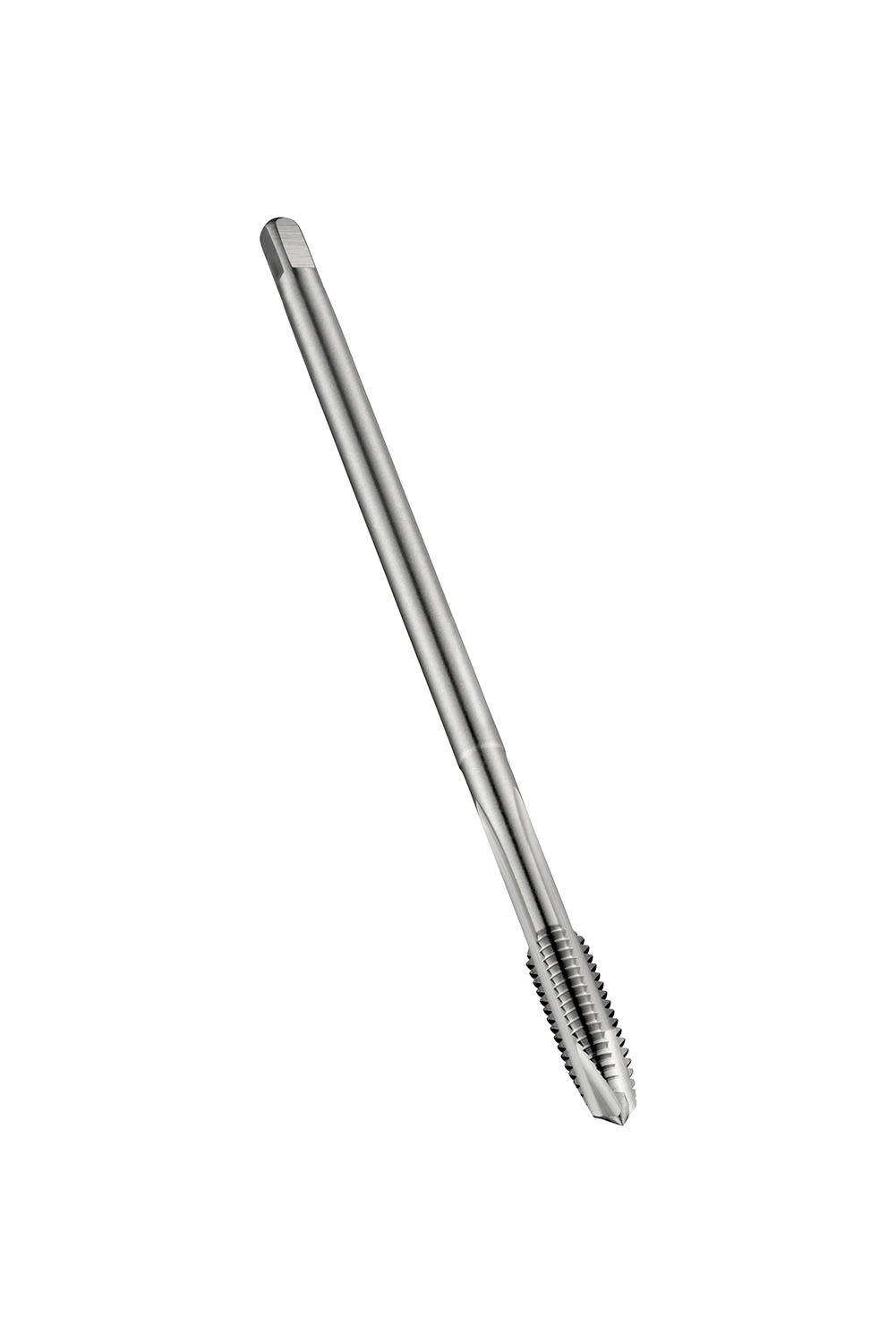

DORMER E606M3 ISO Machine Taps

Description: Value
Product name: E606M3
Product number (SAP): 86017192
EAN number: 7320760123942
Thread diameter size (TDZ): 3
Thread pitch – millimeter (TP): 0.5 mm
Overall length – millimeter (OAL): 66 mm
Overall length – inch (OAL): 2.5984 inch
Threading length – millimeter (THL): 9 mm
Threading length – inch (THL): 0.3543 inch
Connection diameter – inch (DCON MS): 0.124 inch
Connection diameter – millimeter (DCON MS): 3.15 mm
Flute count (NOF): 3
Usable Length – inch (LU): 0.7087 inch
Usable Length – millimeter (LU): 18 mm
Clamping width – inch (WSC): 0.0984 inch
Clamping width – millimeter (WSC): 2.5 mm
Clamping Length – inch (LCS): 0.1969 inch
Clamping Length – millimeter (LSC): 5 mm
Premachined hole diameter – inch (PHD): 0.0984 inch
Premachined hole diameter – millimeter (PHD): 2.5 mm
Gross weight – grams: 6.1
ISO: E606M3
Ordering code ANSI: E606M3
