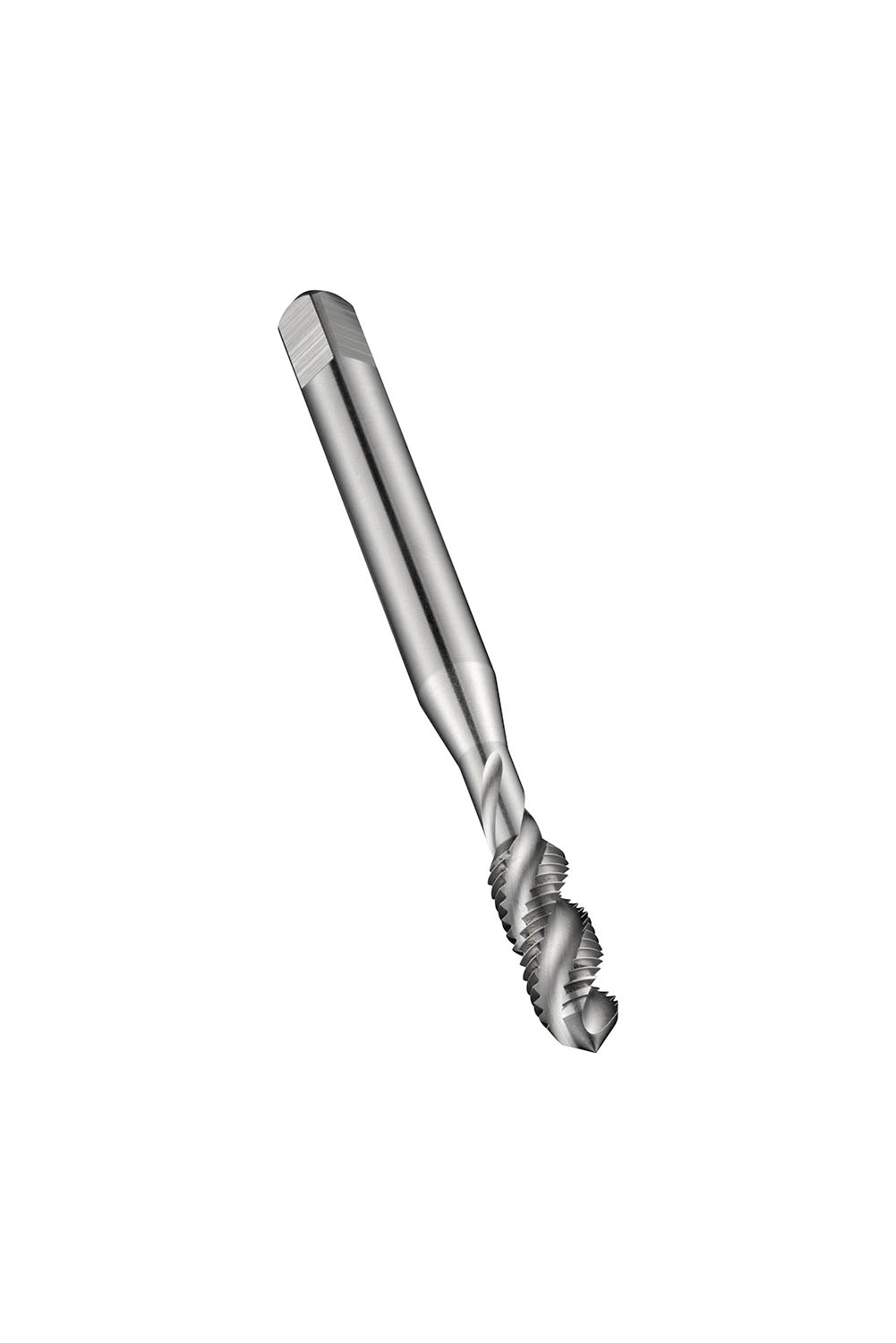

DORMER E621M3 ISO Machine Taps

Description: Value
Product name: E621M3
Product number (SAP): 86017219
EAN number: 7320760384916
Thread diameter size (TDZ): 3
Thread diameter – millimeter (TD): 3.65 mm
Thread pitch – millimeter (TP): 0.5 mm
Overall length – millimeter (OAL): 53 mm
Overall length – inch (OAL): 2.0866 inch
Threading length – millimeter (THL): 14 mm
Threading length – inch (THL): 0.5512 inch
Connection diameter – inch (DCON MS): 0.1575 inch
Connection diameter – millimeter (DCON MS): 4 mm
Flute count (NOF): 3
Usable Length – inch (LU): 0.5512 inch
Usable Length – millimeter (LU): 14 mm
Clamping width – inch (WSC): 0.124 inch
Clamping width – millimeter (WSC): 3.15 mm
Clamping Length – inch (LCS): 0.2362 inch
Clamping Length – millimeter (LSC): 6 mm
Premachined hole diameter – inch (PHD): 0.126 inch
Premachined hole diameter – millimeter (PHD): 3.2 mm
Gross weight – grams: 6.5
ISO: E621M3
Ordering code ANSI: E621M3
