DORMER E650M10 HSS / HSCo DIN Taps

Product Code: E650M10

$142.76$129.78 Ex. GST

Product Code: E650M10 SKU E650M10 Categories , ,
DORMER E650M10 HSS / HSCo DIN Taps

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

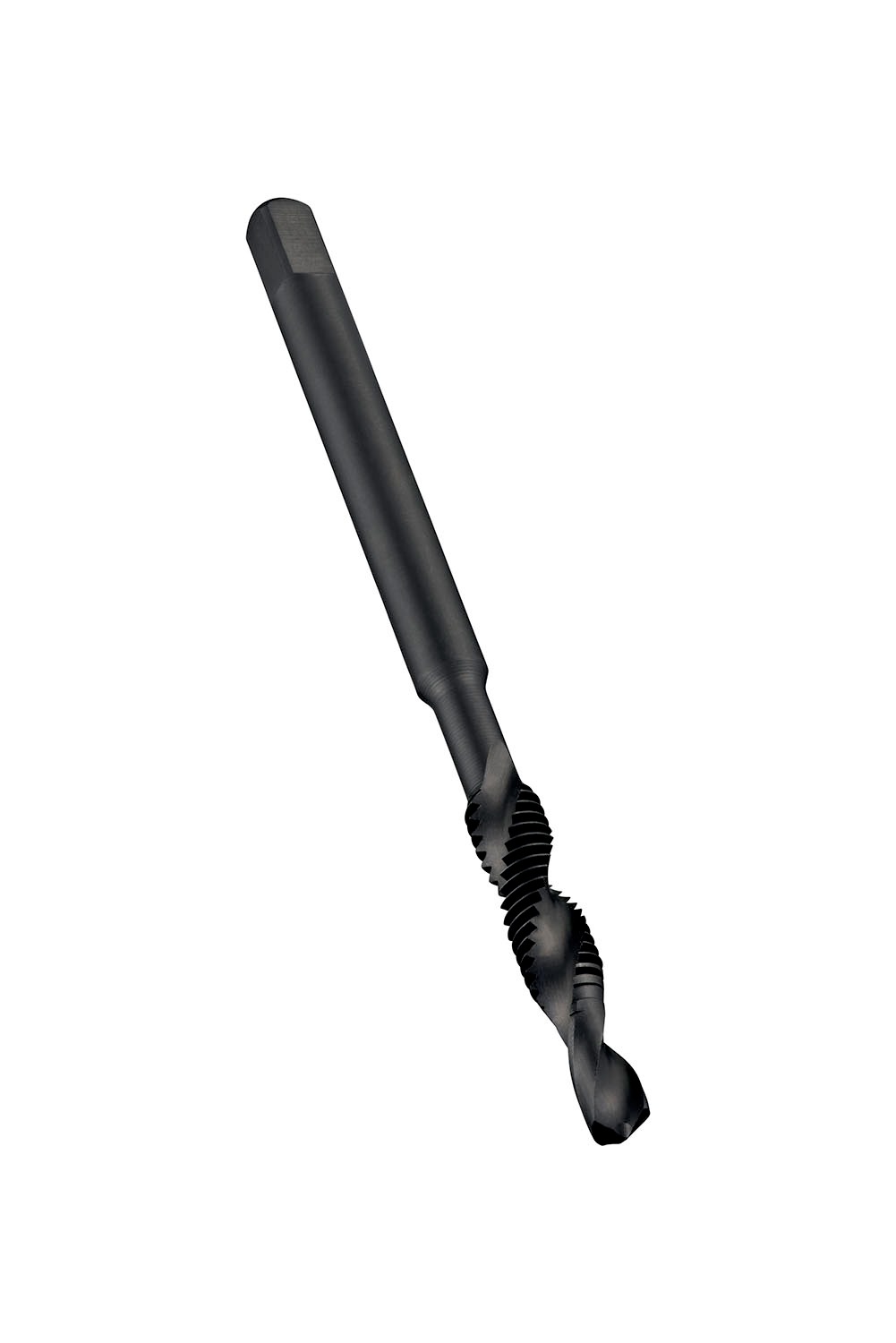

Combination drill-tap with a 30° spiral flute, for ISO-Metric thread M10 with 1.50 mm pitch and 6H class of fit, dimensions according to DORMER-ISO standard with 10.0mm shank and 8.0mm square drive, HSS with steam tempered surface finish and 30° helix angle for 1.5xD through hole threading in free machining steel

Additional information

Weight 0.1386 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760127513
Product number (SAP): 86017224
Ordering code ANSI: E650M10
Gross weight – grams: 52
Thread diameter size (TDZ): 10
Thread pitch – millimeter (TP): 1.5 mm
Thread diameter – millimeter (TD): 8.5 mm
Overall length – millimeter (OAL): 108 mm
Threading length – millimeter (THL): 22 mm
Drill Part Length – millimeter (LDP): 20 mm
Connection diameter – millimeter (DCON MS): 10 mm
Clamping width – millimeter (WSC): 8 mm
Clamping Length – millimeter (LSC): 11 mm
Flute count (NOF): 2
ISO: E650M10

Brand

DORMER
