DORMER E650M12 HSS / HSCo DIN Taps

Product Code: E650M12

$183.55$166.86 Ex. GST

Product Code: E650M12 SKU E650M12 Categories , ,

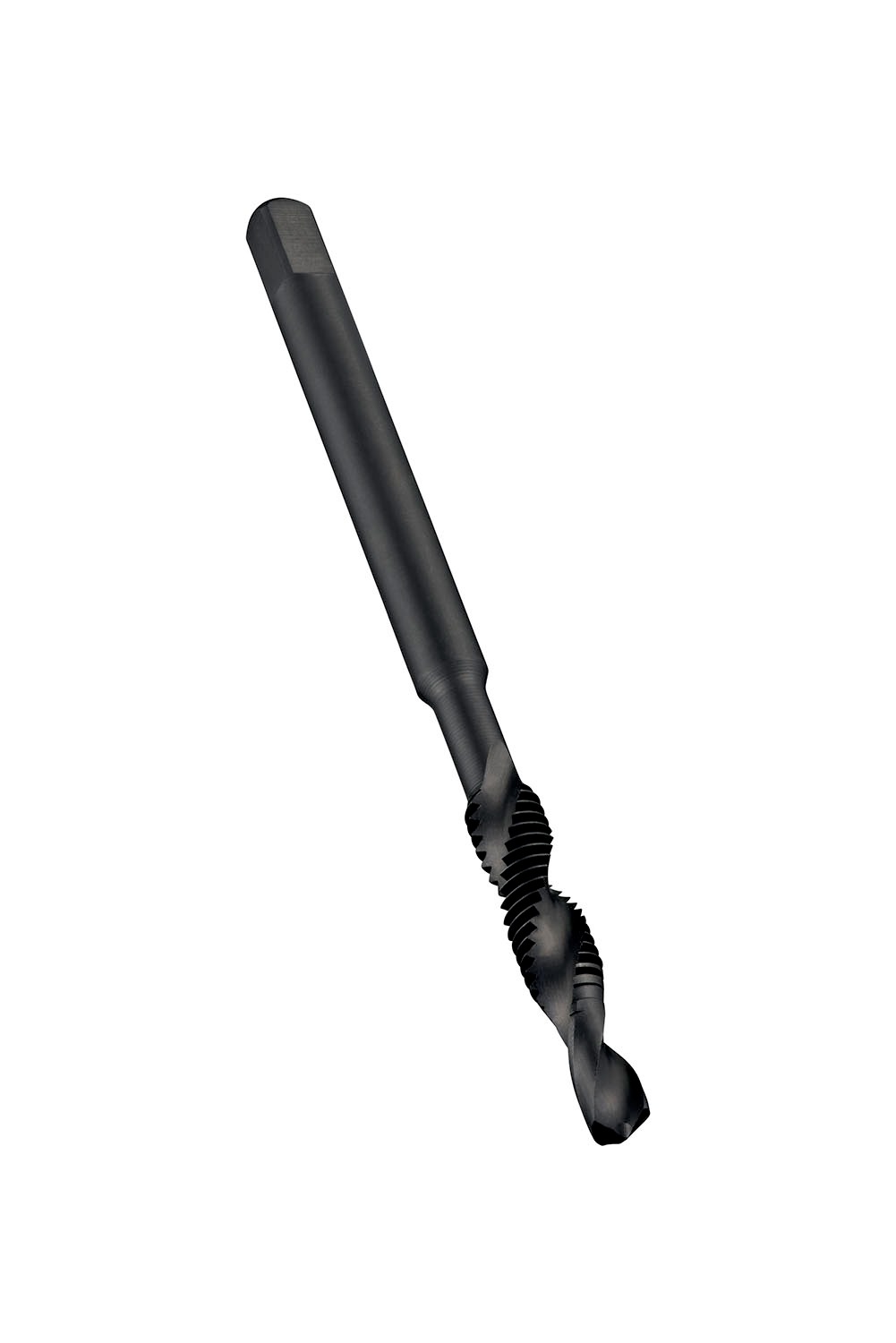

DORMER E650M12 HSS / HSCo DIN Taps

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

Combination drill-tap with a 30° spiral flute, for ISO-Metric thread M12 with 1.75 mm pitch and 6H class of fit, dimensions according to DORMER-ISO standard with 9.0mm shank and 7.1mm square drive, HSS with steam tempered surface finish and 30° helix angle for 1.5xD through hole threading in free machining steel

Additional information

Weight 0.1782 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760127520
Product number (SAP): 86017225
Ordering code ANSI: E650M12
Gross weight – grams: 58
Thread diameter size (TDZ): 12
Thread pitch – millimeter (TP): 1.75 mm
Thread diameter – millimeter (TD): 10.2 mm
Overall length – millimeter (OAL): 113 mm
Threading length – millimeter (THL): 29 mm
Drill Part Length – millimeter (LDP): 24 mm
Connection diameter – millimeter (DCON MS): 9 mm
Clamping width – millimeter (WSC): 7.1 mm
Clamping Length – millimeter (LSC): 10 mm
Flute count (NOF): 2
ISO: E650M12

Brand

DORMER
