DORMER E650M14 HSS / HSCo DIN Taps

Product Code: E650M14

$256.06$232.78 Ex. GST

Product Code: E650M14 SKU E650M14 Categories , ,
DORMER E650M14 HSS / HSCo DIN Taps

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

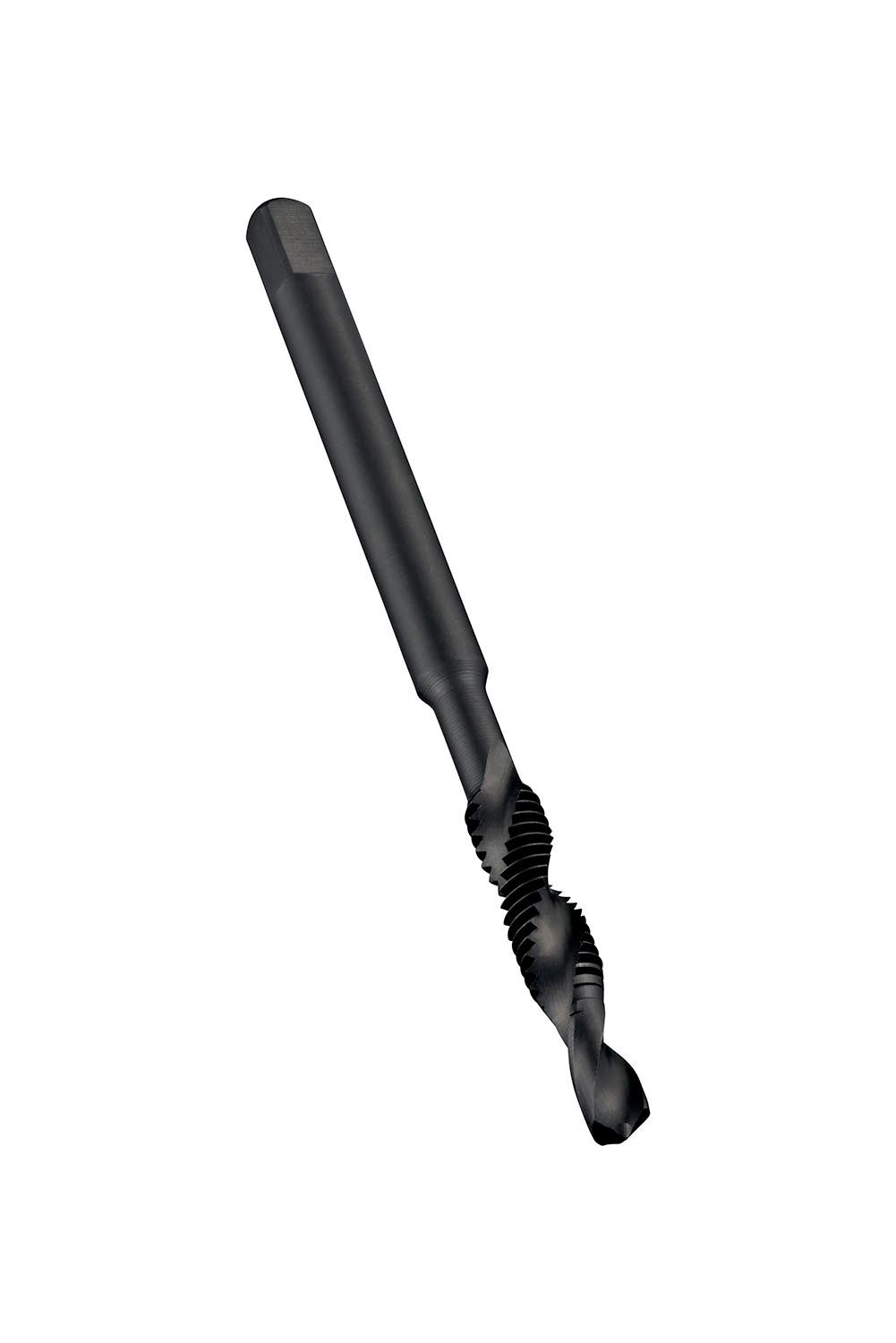

Combination drill-tap with a 30° spiral flute, for ISO-Metric thread M14 with 2.00 mm pitch and 6H class of fit, dimensions according to DORMER-ISO standard with 11.2mm shank and 9.0mm square drive, HSS with steam tempered surface finish and 30° helix angle for 1.5xD through hole threading in free machining steel

Additional information

Weight 0.2486 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760127537
Product number (SAP): 86017226
Ordering code ANSI: E650M14
Gross weight – grams: 88.9
Thread diameter size (TDZ): 14
Thread pitch – millimeter (TP): 2 mm
Thread diameter – millimeter (TD): 12 mm
Overall length – millimeter (OAL): 123 mm
Threading length – millimeter (THL): 30 mm
Drill Part Length – millimeter (LDP): 28 mm
Connection diameter – millimeter (DCON MS): 11.2 mm
Clamping width – millimeter (WSC): 9 mm
Clamping Length – millimeter (LSC): 12 mm
Flute count (NOF): 2
ISO: E650M14

Brand

DORMER
