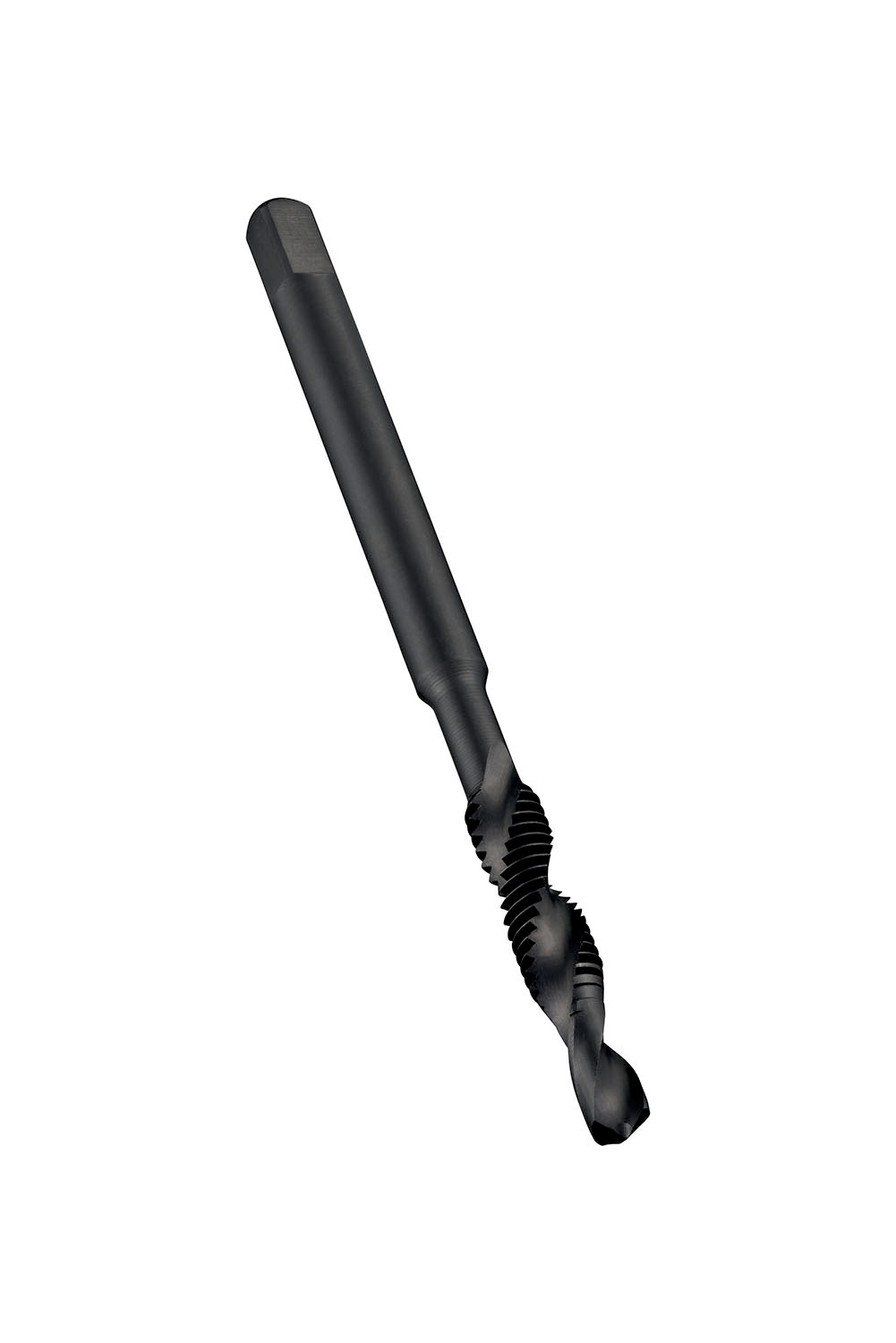

DORMER E650M3 HSS / HSCo DIN Taps

Product Code: E650M3

$95.17$86.52 Ex. GST

Product Code: E650M3 SKU E650M3 Categories , ,
DORMER E650M3 HSS / HSCo DIN Taps

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

Combination drill-tap with a 30° spiral flute, for ISO-Metric thread M3 with 0.50 mm pitch and 6H class of fit, dimensions according to DORMER-ISO standard with 3.15mm shank and 2.5mm square drive, HSS with steam tempered surface finish and 30° helix angle for 1.5xD through hole threading in free machining steel

Additional information

Weight 0.0924 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760167861
Product number (SAP): 86017228
Ordering code ANSI: E650M3
Gross weight – grams: 6
Thread diameter size (TDZ): 3
Thread pitch – millimeter (TP): 0.5 mm
Thread diameter – millimeter (TD): 2.5 mm
Overall length – millimeter (OAL): 56 mm
Threading length – millimeter (THL): 10 mm
Drill Part Length – millimeter (LDP): 6 mm
Connection diameter – millimeter (DCON MS): 3.15 mm
Clamping width – millimeter (WSC): 2.5 mm
Clamping Length – millimeter (LSC): 5 mm
Flute count (NOF): 2
ISO: E650M3

Brand

DORMER
