DORMER E650M4 HSS / HSCo DIN Taps

Description

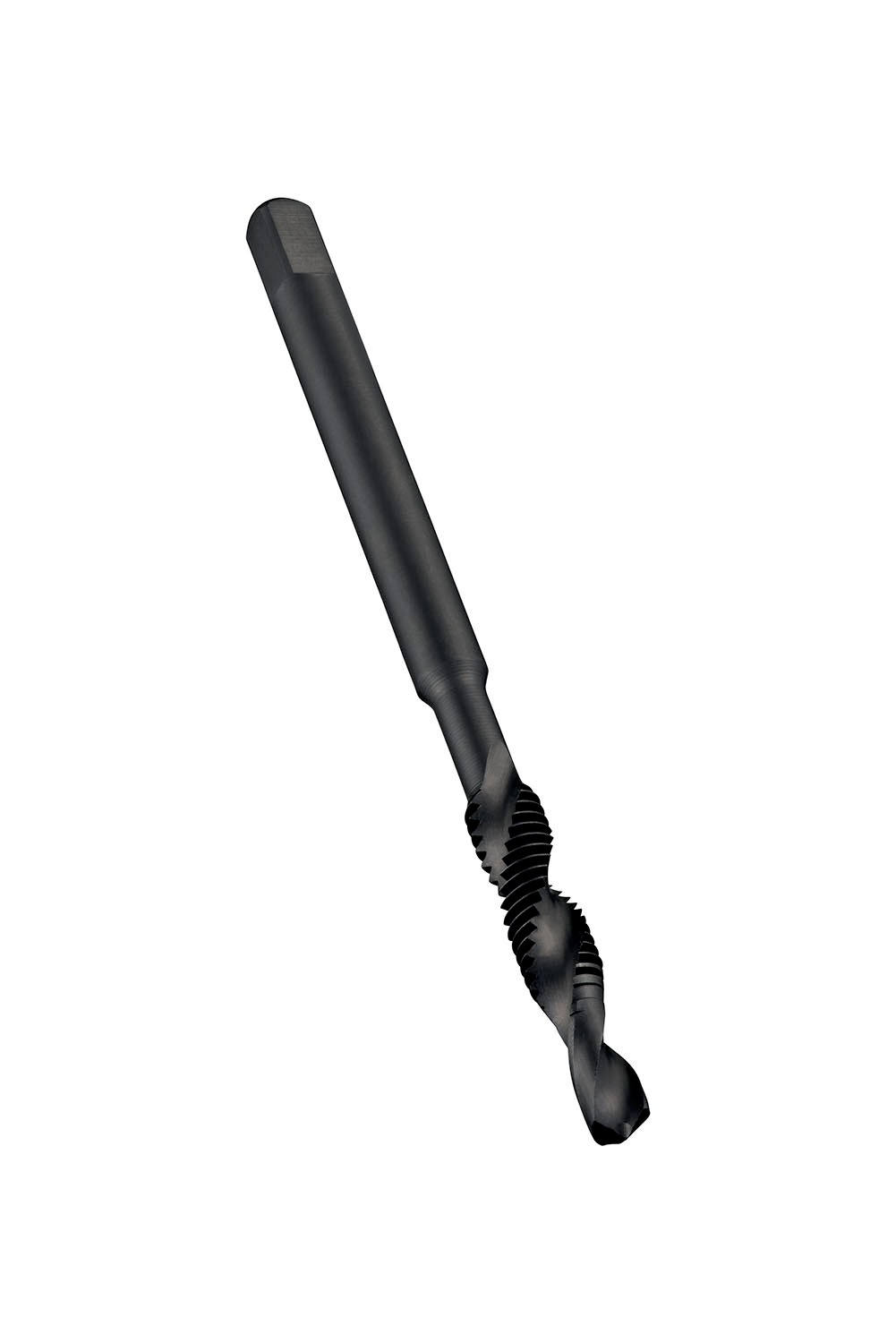

Combination drill-tap with a 30° spiral flute, for ISO-Metric thread M4 with 0.70 mm pitch and 6H class of fit, dimensions according to DORMER-ISO standard with 4.0mm shank and 3.15mm square drive, HSS with steam tempered surface finish and 30° helix angle for 1.5xD through hole threading in free machining steel

Additional information

Weight	0.0946 kg
Dimensions
barcode
Additional Information	Description: Value EAN number: 7320760127551 Product number (SAP): 86017229 Ordering code ANSI: E650M4 Gross weight – grams: 8 Thread diameter size (TDZ): 4 Thread pitch – millimeter (TP): 0.7 mm Thread diameter – millimeter (TD): 3.3 mm Overall length – millimeter (OAL): 65 mm Threading length – millimeter (THL): 12 mm Drill Part Length – millimeter (LDP): 8 mm Connection diameter – millimeter (DCON MS): 4 mm Clamping width – millimeter (WSC): 3.15 mm Clamping Length – millimeter (LSC): 6 mm Flute count (NOF): 2 ISO: E650M4

Need Technical Advice?

Description

Additional information

Brand

DORMER
