DORMER E650M5 HSS / HSCo DIN Taps

Product Code: E650M5

$102.54$93.22 Ex. GST

Product Code: E650M5 SKU E650M5 Categories , ,
DORMER E650M5 HSS / HSCo DIN Taps

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

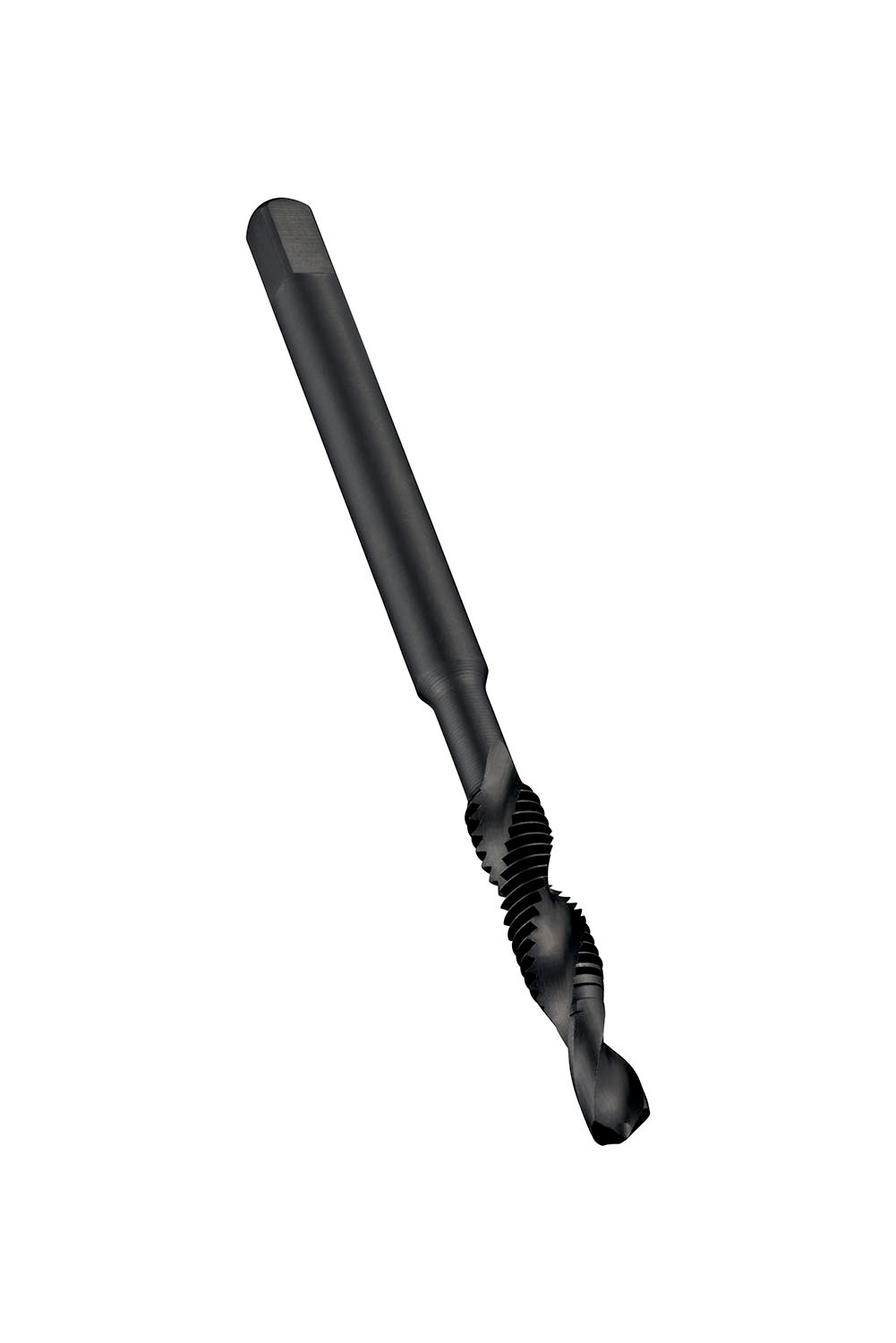

Combination drill-tap with a 30° spiral flute, for ISO-Metric thread M5 with 0.80 mm pitch and 6H class of fit, dimensions according to DORMER-ISO standard with 5.0mm shank and 4.0mm square drive, HSS with steam tempered surface finish and 30° helix angle for 1.5xD through hole threading in free machining steel

Additional information

Weight 0.0996 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760127568
Product number (SAP): 86017230
Ordering code ANSI: E650M5
Gross weight – grams: 10
Thread diameter size (TDZ): 5
Thread pitch – millimeter (TP): 0.8 mm
Thread diameter – millimeter (TD): 4.2 mm
Overall length – millimeter (OAL): 69 mm
Threading length – millimeter (THL): 15 mm
Drill Part Length – millimeter (LDP): 10 mm
Connection diameter – millimeter (DCON MS): 5 mm
Clamping width – millimeter (WSC): 4 mm
Clamping Length – millimeter (LSC): 7 mm
Flute count (NOF): 2
ISO: E650M5

Brand

DORMER
