DORMER E6511/4 HSS / HSCo DIN Taps

Product Code: E6511/4

$147.29$133.90 Ex. GST

Product Code: E6511/4 SKU E6511/4 Categories , ,
DORMER E6511/4 HSS / HSCo DIN Taps

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

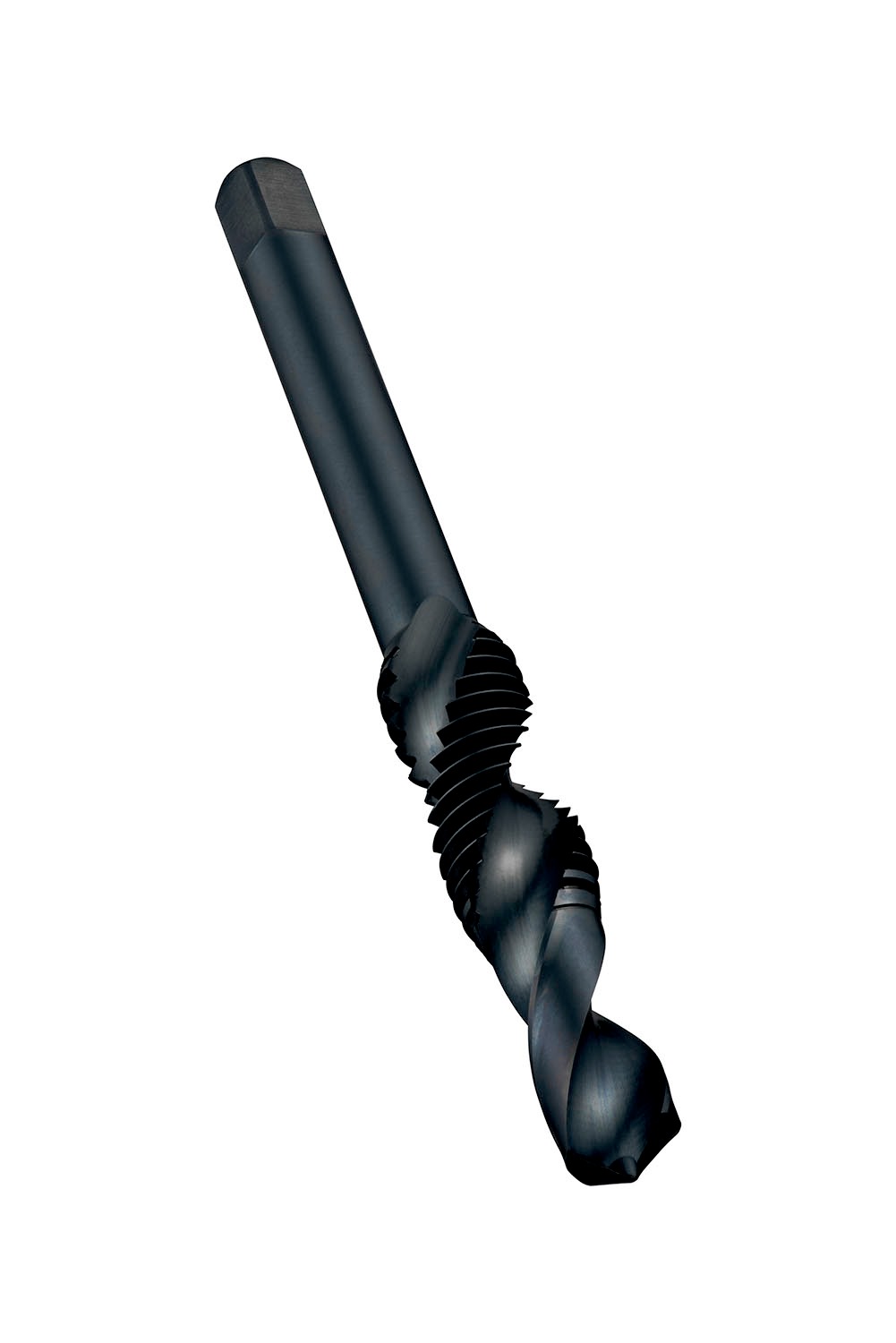

Combination drill-tap with a 30° spiral flute, for Unified National Coarse thread UNC 1/4″ with 20 TPI and 2B class of fit, dimensions according to DORMER-DIN standard with 6.3mm shank and 5.0mm square drive, HSS with steam tempered surface finish and 30° helix angle for 1.5xD through hole threading in free machining steel

Additional information

Weight 0.1430 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760273227
Product number (SAP): 86017234
Ordering code ANSI: E6511/4
Gross weight – grams: 20
Thread diameter size (TDZ): 1/4
Threads per inch (TPI): 20
Thread diameter – millimeter (TD): 5.1 mm
Overall length – millimeter (OAL): 83 mm
Threading length – millimeter (THL): 17 mm
Drill Part Length – millimeter (LDP): 13 mm
Connection diameter – millimeter (DCON MS): 6.3 mm
Clamping width – millimeter (WSC): 5 mm
Flute count (NOF): 2
ISO: E6511/4

Brand

DORMER
