DORMER E6517/16 HSS / HSCo DIN Taps

Product Code: E6517/16

$265.12$241.02 Ex. GST

Product Code: E6517/16 SKU E6517/16 Categories , ,
DORMER E6517/16 HSS / HSCo DIN Taps

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

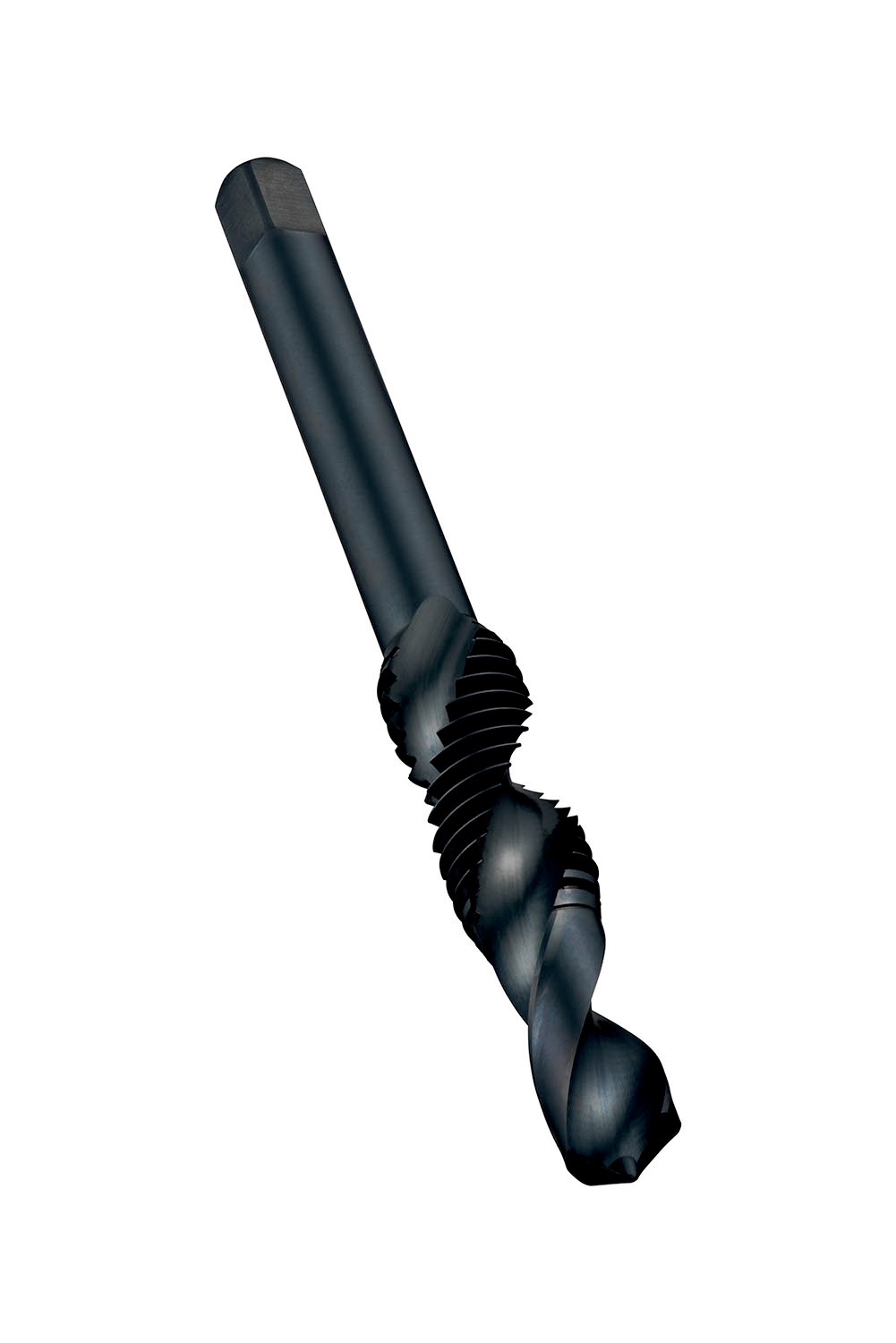

Combination drill-tap with a 30° spiral flute, for Unified National Coarse thread UNC 7/16″ with 14 TPI and 2B class of fit, dimensions according to DORMER-DIN standard with 8.0mm shank and 6.3mm square drive, HSS with steam tempered surface finish and 30° helix angle for 1.5xD through hole threading in free machining steel

Additional information

Weight 0.2574 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760273265
Product number (SAP): 86017241
Ordering code ANSI: E6517/16
Gross weight – grams: 46
Thread diameter size (TDZ): 7/16
Threads per inch (TPI): 14
Thread diameter – millimeter (TD): 9.4 mm
Overall length – millimeter (OAL): 107 mm
Threading length – millimeter (THL): 25 mm
Drill Part Length – millimeter (LDP): 22 mm
Connection diameter – millimeter (DCON MS): 8 mm
Clamping width – millimeter (WSC): 6.3 mm
Flute count (NOF): 2
ISO: E6517/16

Brand

DORMER
