DORMER E6531/2 HSS / HSCo DIN Taps

Product Code: E6531/2

$240.20$218.36 Ex. GST

Product Code: E6531/2 SKU E6531/2 Categories , ,
DORMER E6531/2 HSS / HSCo DIN Taps

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

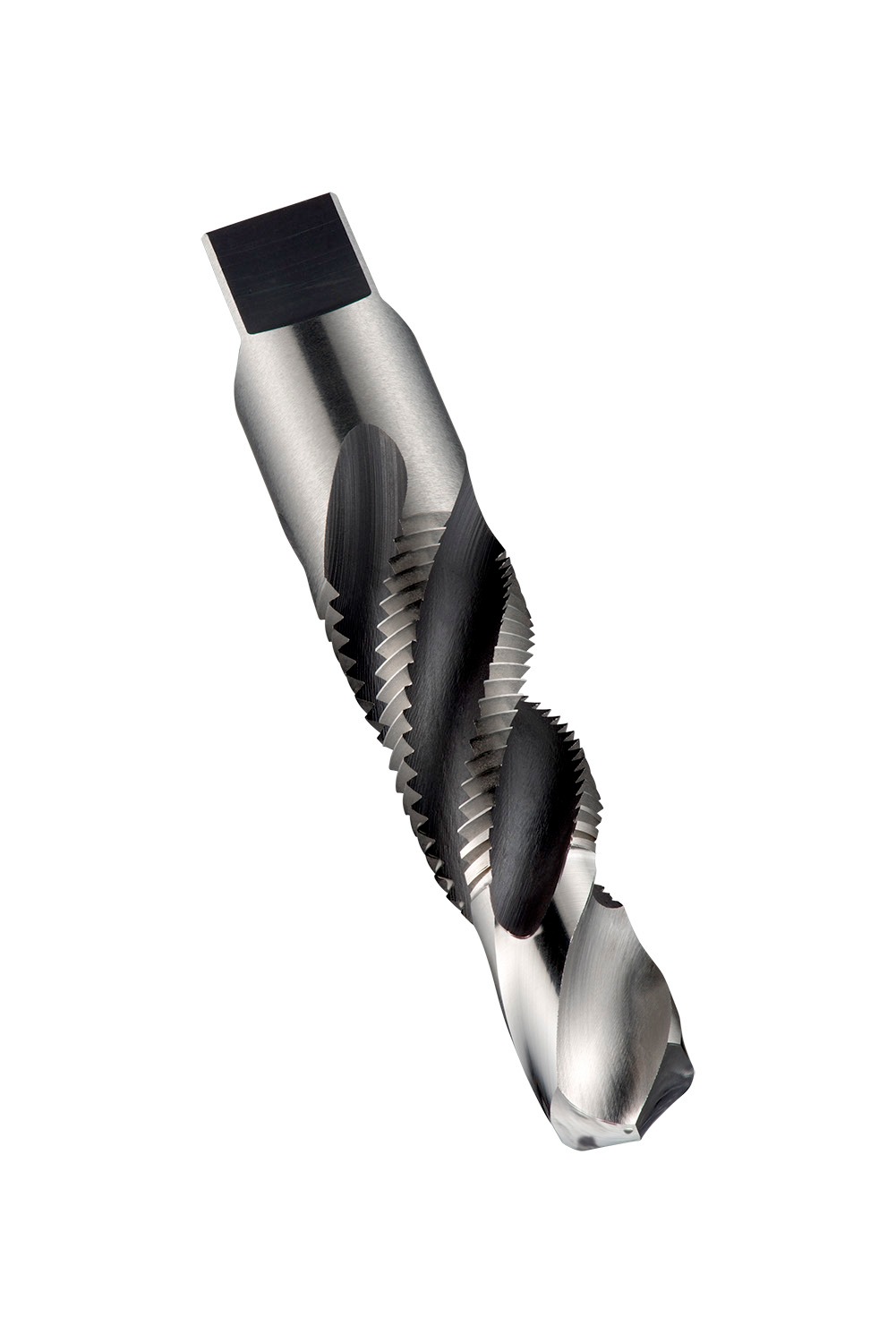

Combination drill-tap with a 27° spiral flute, for National Pipe Taper thread NPT 1/2″ with 14 TPI and Normal class of fit, dimensions according to ANSI standard with 0.6870″ shank and 0.6870″ square drive, HSS with bright finish and 27° helix angle for 1.5xD through or blind hole threading in free machining steel

Additional information

Weight 0.2332 kg
barcode
Additional Information

Description: Value
EAN number: 7320760297261
Product number (SAP): 86017246
Ordering code ANSI: E6531/2
Gross weight – grams: 155.3
Thread diameter size (TDZ): 1/2
Threads per inch (TPI): 14
Thread diameter – inch (TD): 0.7087 inch
Overall length – fractional inch (OAL): 4.3/8
Usable Length – fractional inch (LU): 1.3/8
Connection diameter – inch (DCON MS): 0.687 inch
Clamping width – inch (WSC): 0.515 inch
Flute count (NOF): 4
ISO: E6531/2

Brand

DORMER
