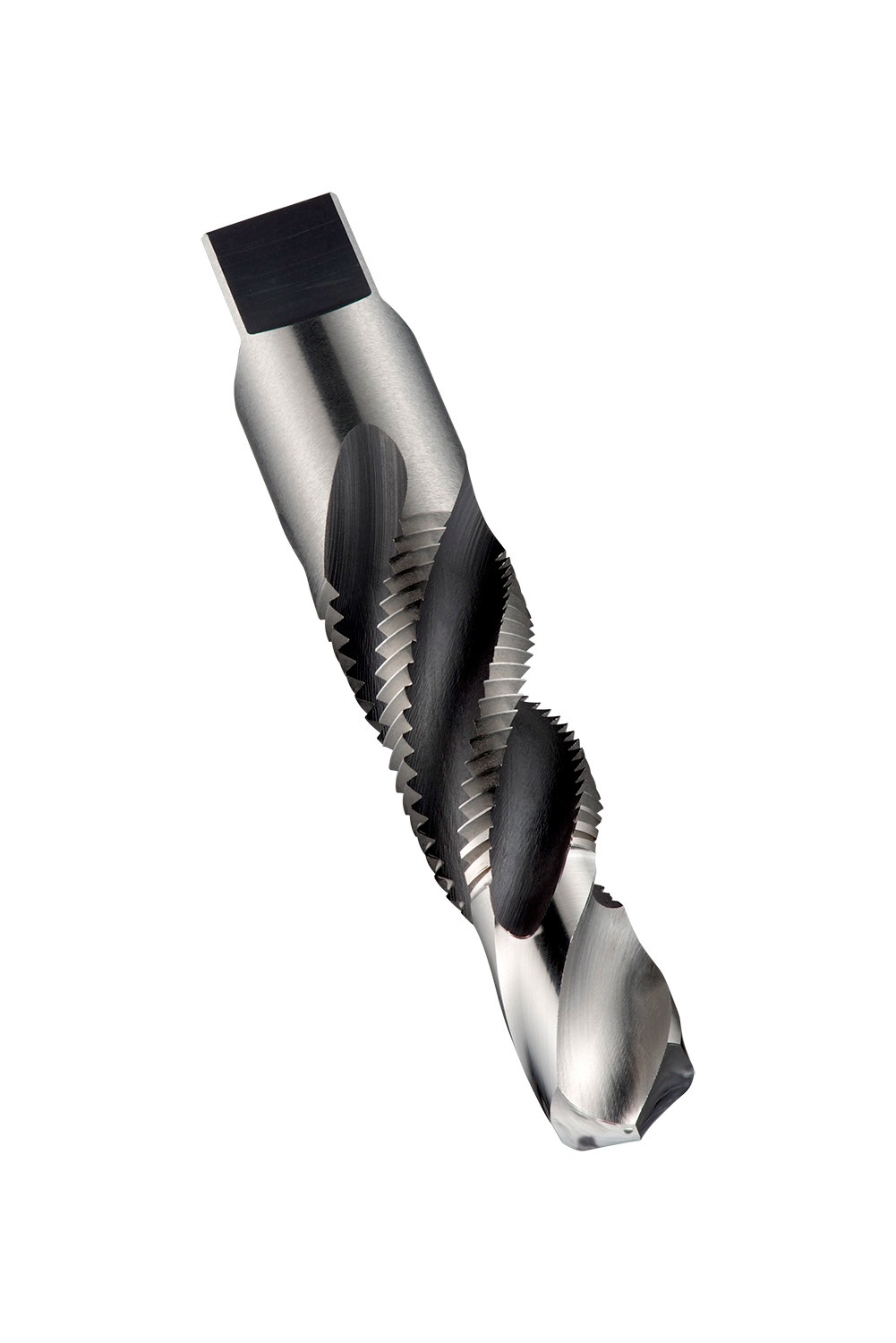

DORMER E6531/4 HSS / HSCo DIN Taps

Product Code: E6531/4

$114.43$104.03 Ex. GST

Product Code: E6531/4 SKU E6531/4 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Combination drill-tap with a 27° spiral flute, for National Pipe Taper thread NPT 1/4″ with 18 TPI and Normal class of fit, dimensions according to ANSI standard with 0.5620″ shank and 0.5620″ square drive, HSS with bright finish and 27° helix angle for 1.5xD through or blind hole threading in free machining steel

Additional information

Weight 0.1111 kg
barcode
Additional Information

Description: Value
EAN number: 7320760297278
Product number (SAP): 86017247
Ordering code ANSI: E6531/4
Gross weight – grams: 65.7
Thread diameter size (TDZ): 1/4
Threads per inch (TPI): 18
Thread diameter – inch (TD): 0.4331 inch
Overall length – fractional inch (OAL): 3.5/16
Usable Length – fractional inch (LU): 1.1/16
Connection diameter – inch (DCON MS): 0.562 inch
Clamping width – inch (WSC): 0.421 inch
Flute count (NOF): 4
ISO: E6531/4

Brand

DORMER
