DORMER E6533/8 HSS / HSCo DIN Taps

Product Code: E6533/8

$169.95$154.50 Ex. GST

Product Code: E6533/8 SKU E6533/8 Categories , ,
DORMER E6533/8 HSS / HSCo DIN Taps

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

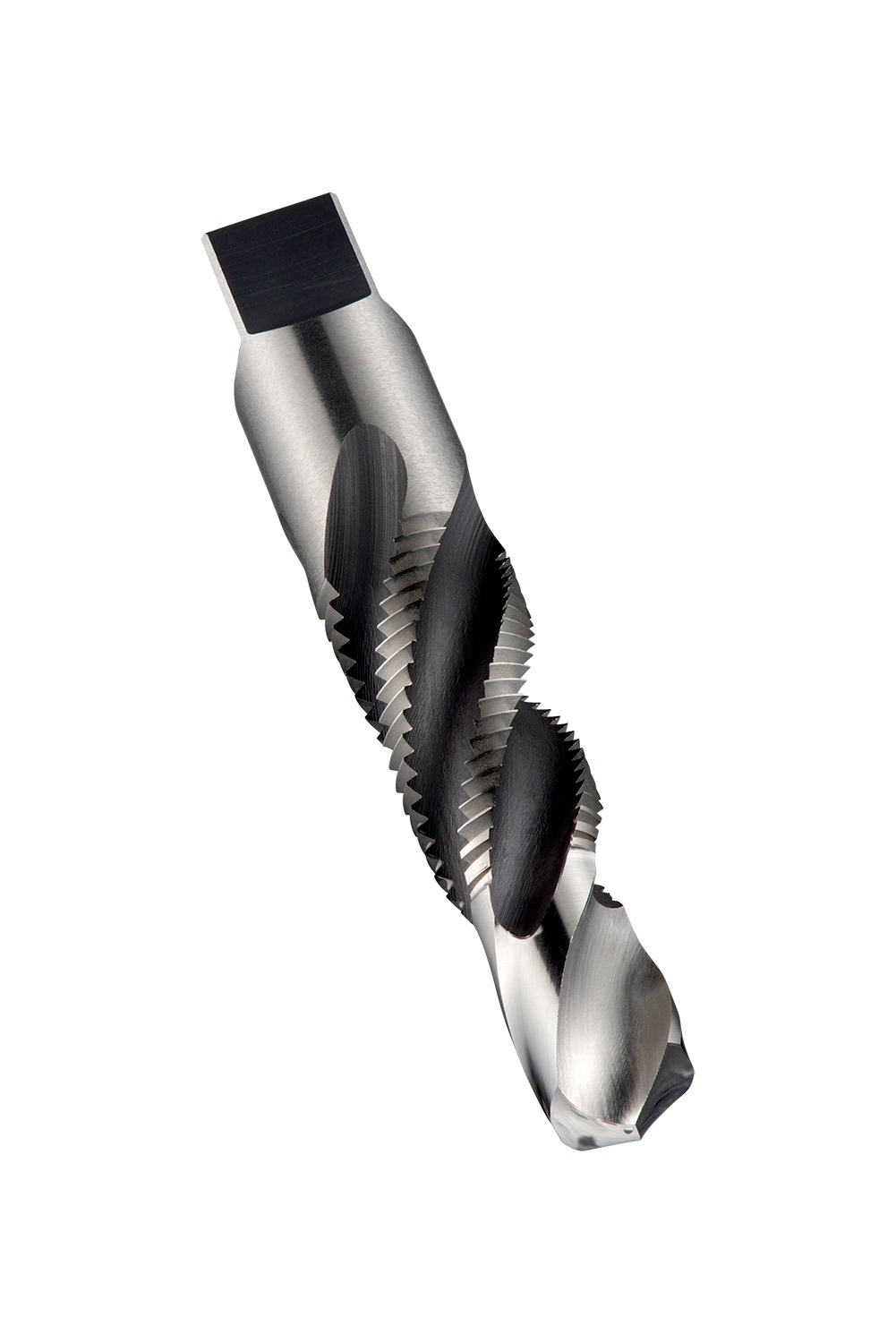

Combination drill-tap with a 27° spiral flute, for National Pipe Taper thread NPT 3/8″ with 18 TPI and Normal class of fit, dimensions according to ANSI standard with 0.7000″ shank and 0.7000″ square drive, HSS with bright finish and 27° helix angle for 1.5xD through or blind hole threading in free machining steel

Additional information

Weight 0.1650 kg
barcode
Additional Information

Description: Value
EAN number: 7320760297308
Product number (SAP): 86017250
Ordering code ANSI: E6533/8
Gross weight – grams: 105.9
Thread diameter size (TDZ): 3/8
Threads per inch (TPI): 18
Thread diameter – inch (TD): 0.5709 inch
Overall length – fractional inch (OAL): 3.1/2
Usable Length – fractional inch (LU): 1.1/16
Connection diameter – inch (DCON MS): 0.7 inch
Clamping width – inch (WSC): 0.531 inch
Flute count (NOF): 4
ISO: E6533/8

Brand

DORMER
