DORMER E6541/2 HSS / HSCo DIN Taps

Product Code: E6541/2

$122.36$111.24 Ex. GST

Product Code: E6541/2 SKU E6541/2 Categories , ,
DORMER E6541/2 HSS / HSCo DIN Taps

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

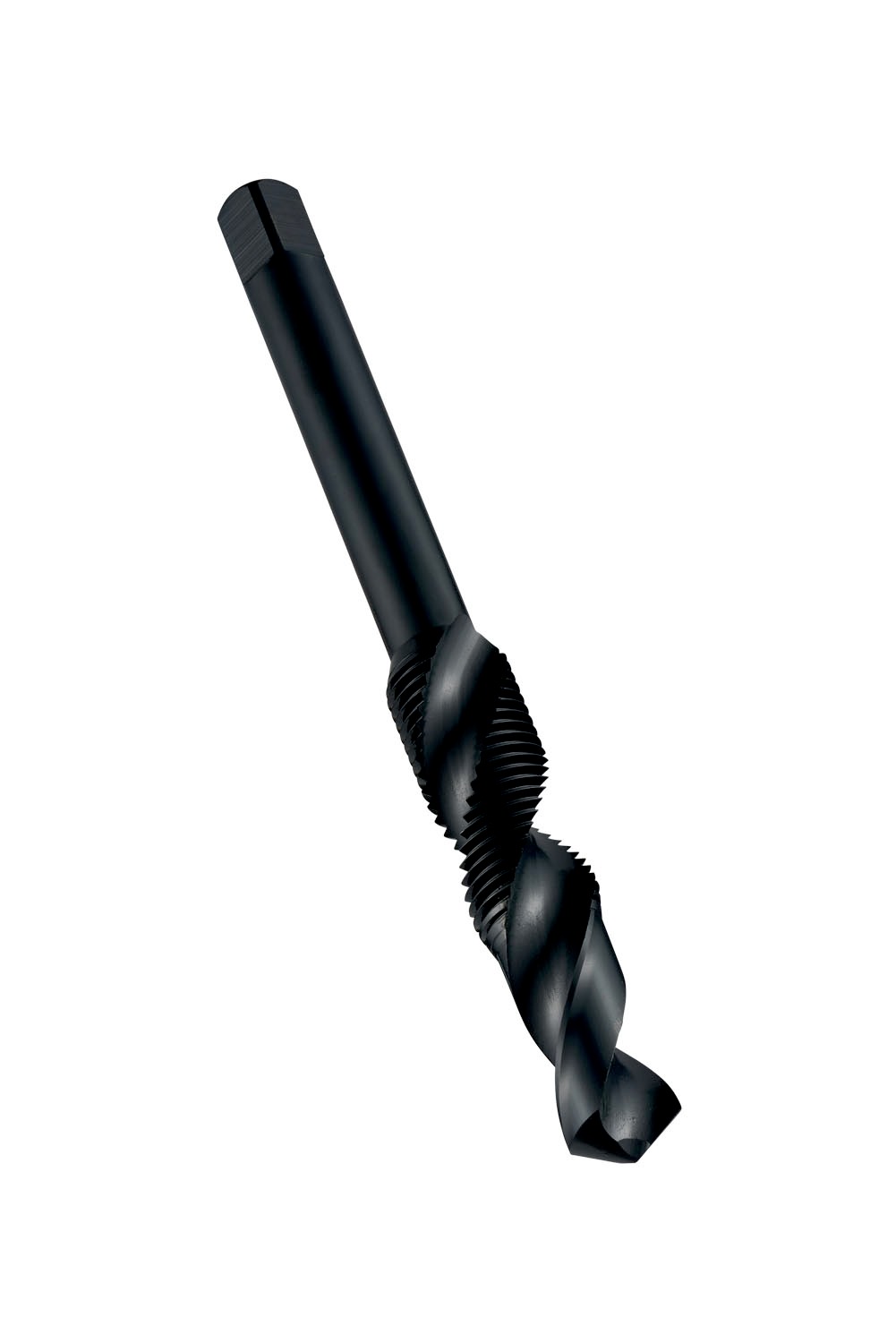

Combination drill-tap with a 30° spiral flute, for Unified National Fine thread UNF 1/2″ with 20 TPI and Medium class of fit, dimensions according to DORMER-DIN standard with 9.0mm shank and 7.1mm square drive, HSS with steam tempered surface finish and 30° helix angle for 1.5xD through hole threading in free machining steel

Additional information

Weight 0.1188 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760338988
Product number (SAP): 86017251
Ordering code ANSI: E6541/2
Gross weight – grams: 60
Thread diameter size (TDZ): 1/2
Threads per inch (TPI): 20
Thread diameter – millimeter (TD): 11.5 mm
Overall length – millimeter (OAL): 114 mm
Threading length – millimeter (THL): 29 mm
Drill Part Length – millimeter (LDP): 25 mm
Connection diameter – millimeter (DCON MS): 9 mm
Clamping width – millimeter (WSC): 7.1 mm
Flute count (NOF): 2
ISO: E6541/2

Brand

DORMER
