DORMER E65412-28 HSS / HSCo DIN Taps

Product Code: E65412-28

$67.98$61.80 Ex. GST

Product Code: E65412-28 SKU E65412-28 Categories , ,
DORMER E65412-28 HSS / HSCo DIN Taps

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

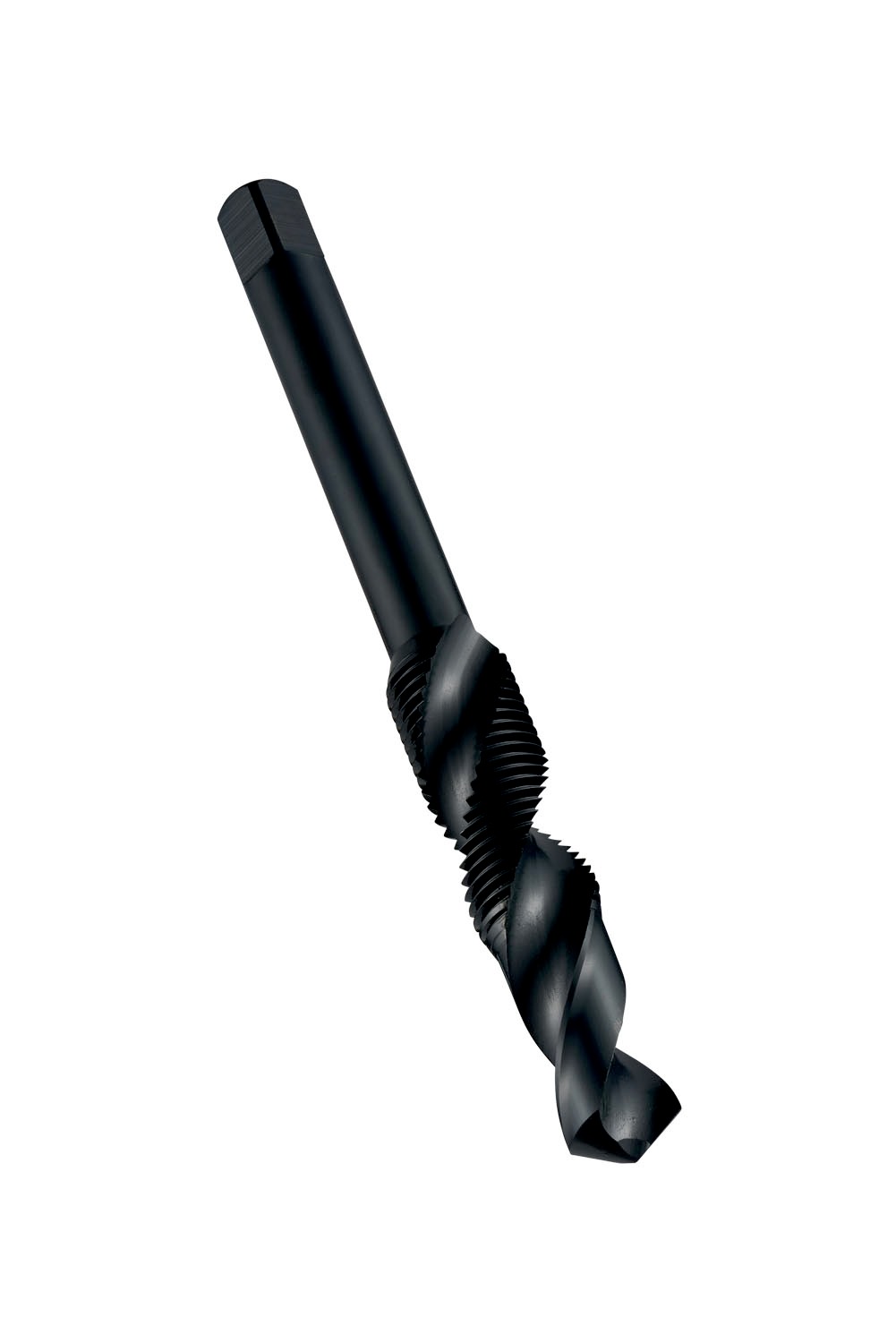

Combination drill-tap with a 30° spiral flute, for Unified National Fine thread UNF 12 with 28 TPI and Medium class of fit, dimensions according to DORMER-DIN standard with 5.6mm shank and 4.5mm square drive, HSS with steam tempered surface finish and 30° helix angle for 1.5xD through hole threading in free machining steel

Additional information

Weight 0.0660 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760338995
Product number (SAP): 86017254
Ordering code ANSI: E65412-28
Gross weight – grams: 14
Thread diameter size (TDZ): 12
Threads per inch (TPI): 28
Thread diameter – millimeter (TD): 4.7 mm
Overall length – millimeter (OAL): 77 mm
Threading length – millimeter (THL): 17 mm
Drill Part Length – millimeter (LDP): 11 mm
Connection diameter – millimeter (DCON MS): 5.6 mm
Clamping width – millimeter (WSC): 4.5 mm
Flute count (NOF): 2
ISO: E65412-28

Brand

DORMER
