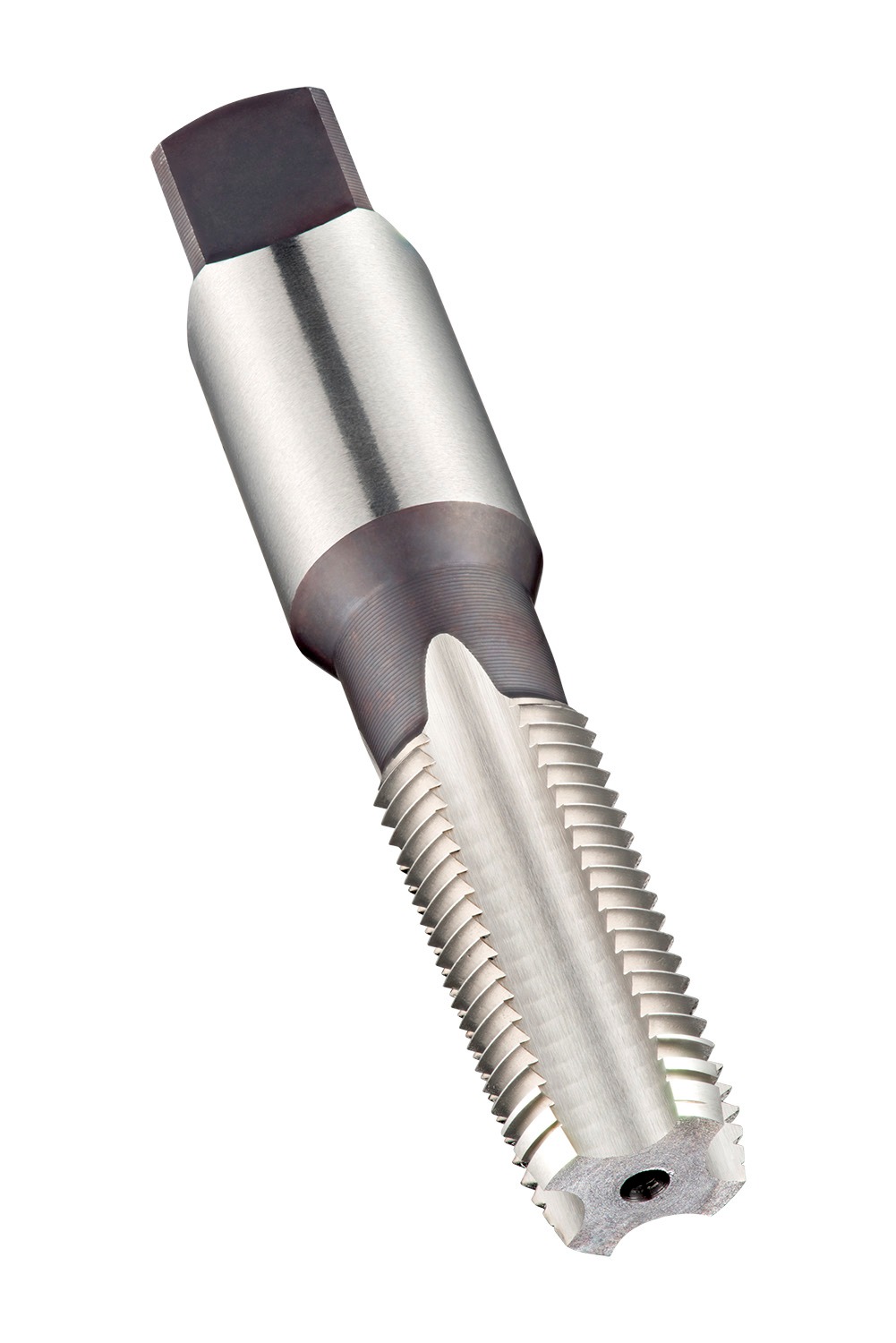

DORMER E7081/4 NPT Taps

Description: Value
Product name: E7081/4
Product number (SAP): 86017263
EAN number: 7320760099742
Thread diameter size (TDZ): 1/4
Thread diameter – millimeter (TD): 13.72 mm
Threads per inch (TPI): 18
Overall length – millimeter (OAL): 75 mm
Overall length – inch (OAL): 2.9528 inch
Threading length – millimeter (THL): 27 mm
Threading length – inch (THL): 1.063 inch
Connection diameter – inch (DCON MS): 0.563 inch
Connection diameter – millimeter (DCON MS): 14.3 mm
Flute count (NOF): 4
Usable Length – inch (LU): 1.063 inch
Usable Length – millimeter (LU): 27 mm
Clamping width – inch (WSC): 0.4213 inch
Clamping width – millimeter (WSC): 10.7 mm
Clamping Length – inch (LCS): 0.4331 inch
Clamping Length – millimeter (LSC): 11 mm
Premachined hole diameter – inch (PHD): 0.4724 inch
Premachined hole diameter – millimeter (PHD): 12 mm
Gross weight – grams: 72
ISO: E7081/4
Ordering code ANSI: E7081/4
