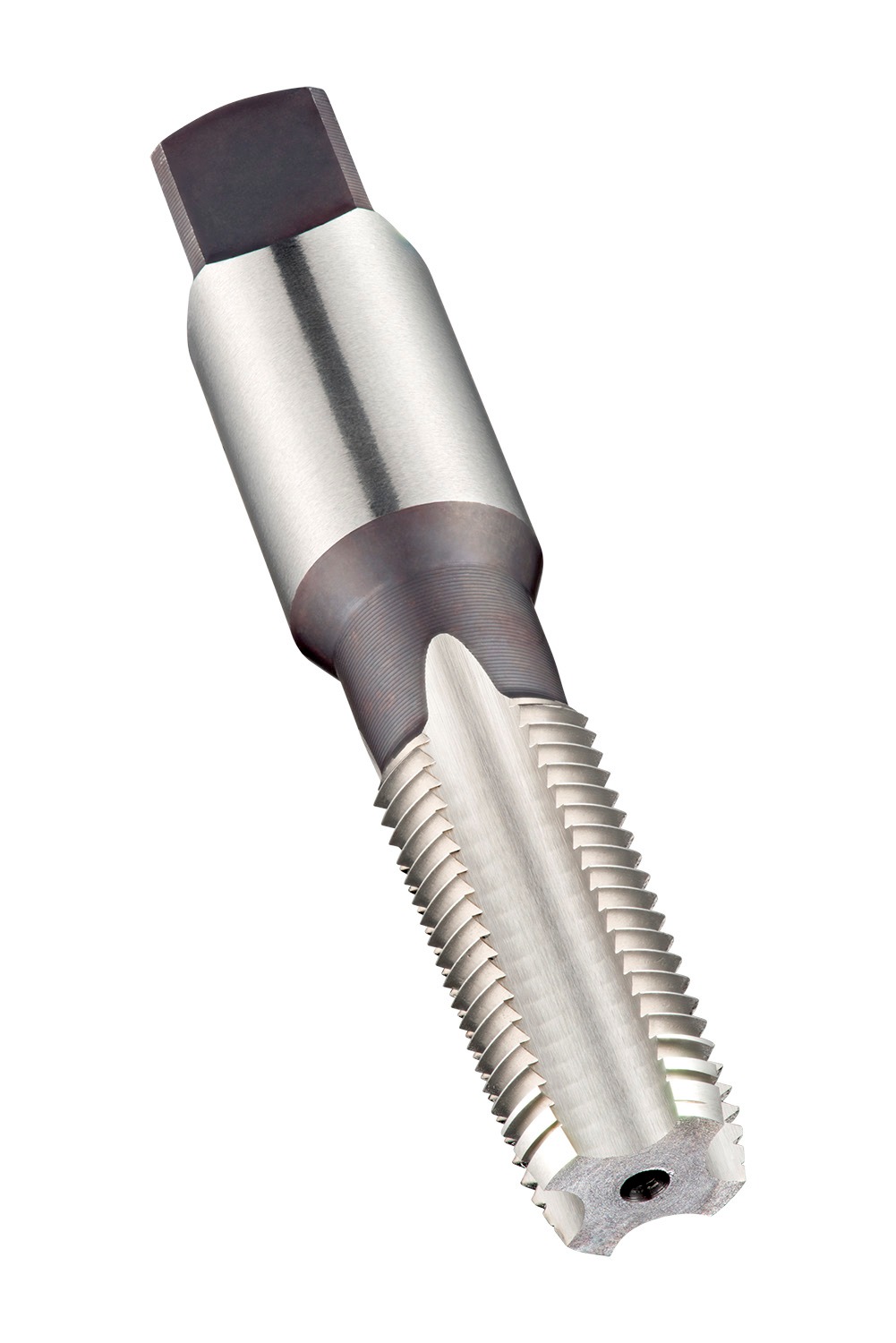

DORMER E7093/8 NPT Taps

Description: Value
Product name: E7093/8
Product number (SAP): 86017274
EAN number: 7320760099827
Thread diameter size (TDZ): 3/8
Thread diameter – millimeter (TD): 17.15 mm
Threads per inch (TPI): 18
Overall length – millimeter (OAL): 80 mm
Overall length – inch (OAL): 3.1496 inch
Threading length – millimeter (THL): 27 mm
Threading length – inch (THL): 1.063 inch
Connection diameter – inch (DCON MS): 0.7008 inch
Connection diameter – millimeter (DCON MS): 17.8 mm
Flute count (NOF): 4
Usable Length – inch (LU): 1.063 inch
Usable Length – millimeter (LU): 27 mm
Clamping width – inch (WSC): 0.5315 inch
Clamping width – millimeter (WSC): 13.5 mm
Clamping Length – inch (LCS): 0.5118 inch
Clamping Length – millimeter (LSC): 13 mm
Premachined hole diameter – inch (PHD): 0.5807 inch
Premachined hole diameter – millimeter (PHD): 14.75 mm
Gross weight – grams: 123
ISO: E7093/8
Ordering code ANSI: E7093/8
