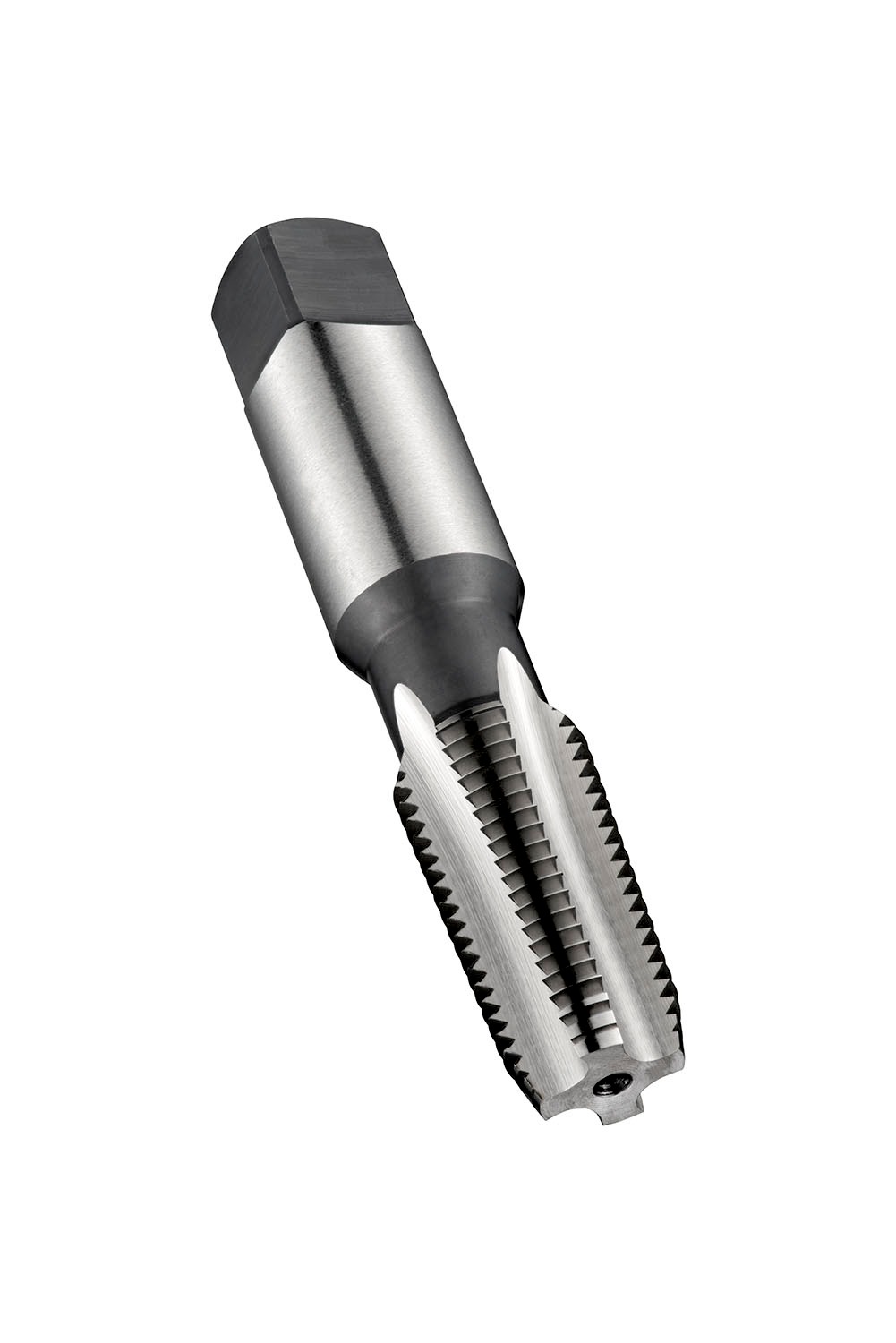

DORMER E7101/2NO7 NPT Taps

Description

Set of straight flute hand taps NO7 for National Pipe Taper thread NPT 1/2″ with 14 TPI and Normal class of fit, consisting of 1 tap with a 4-6xP second lead and 1 tap with a 2-3xP plug lead, dimensions according to ~ANSI B94.9 standard with 17.5mm shank and 13.1mm square drive, HSS with bright finish for 1.5xD through or blind hole threading in free machining and plain carbon steel and copper or copper alloys

Additional information

Weight	0.4026 kg
Dimensions
barcode
Additional Information	Description: Value Product name: E7101/2NO7 Product number (SAP): 86017281 EAN number: 7320760210345 Thread diameter size (TDZ): 1/2 Thread diameter – millimeter (TD): 21.34 mm Threads per inch (TPI): 14 Overall length – millimeter (OAL): 100 mm Overall length – inch (OAL): 3.937 inch Threading length – millimeter (THL): 35 mm Threading length – inch (THL): 1.378 inch Connection diameter – inch (DCON MS): 0.689 inch Connection diameter – millimeter (DCON MS): 17.5 mm Flute count (NOF): 4 Tap chamfer length – millimeter (TCL): 22.7 mm Clamping width – inch (WSC): 0.5157 inch Clamping width – millimeter (WSC): 13.1 mm Clamping Length – inch (LCS): 0.6299 inch Clamping Length – millimeter (LSC): 16 mm Premachined hole diameter – inch (PHD): 0.7087 inch Premachined hole diameter – millimeter (PHD): 18 mm Gross weight – grams: 389.5 ISO: E7101/2NO7 Ordering code ANSI: E7101/2NO7
