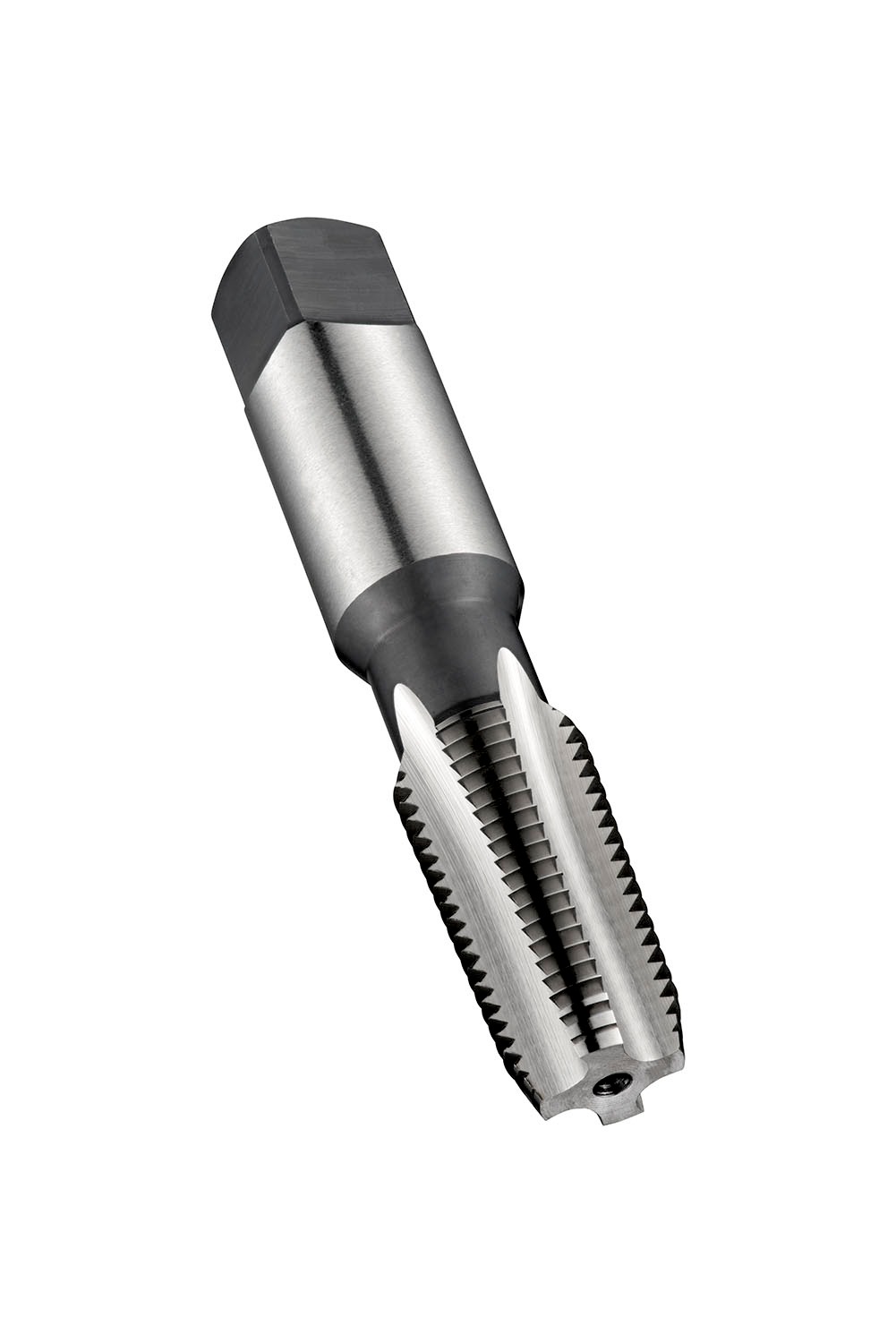

DORMER E7101/4NO7 NPT Taps

Description

Set of straight flute hand taps NO7 for National Pipe Taper thread NPT 1/4″ with 18 TPI and Normal class of fit, consisting of 1 tap with a 4-6xP second lead and 1 tap with a 2-3xP plug lead, dimensions according to ~ANSI B94.9 standard with 14.3mm shank and 10.7mm square drive, HSS with bright finish for 1.5xD through or blind hole threading in free machining and plain carbon steel and copper or copper alloys

Additional information

Weight	0.1914 kg
Dimensions
barcode
Additional Information	Description: Value Product name: E7101/4NO7 Product number (SAP): 86017283 EAN number: 7320760210321 Thread diameter size (TDZ): 1/4 Thread diameter – millimeter (TD): 13.72 mm Threads per inch (TPI): 18 Overall length – millimeter (OAL): 75 mm Overall length – inch (OAL): 2.9528 inch Threading length – millimeter (THL): 27 mm Threading length – inch (THL): 1.063 inch Connection diameter – inch (DCON MS): 0.563 inch Connection diameter – millimeter (DCON MS): 14.3 mm Flute count (NOF): 4 Tap chamfer length – millimeter (TCL): 17.6 mm Clamping width – inch (WSC): 0.4213 inch Clamping width – millimeter (WSC): 10.7 mm Clamping Length – inch (LCS): 0.4331 inch Clamping Length – millimeter (LSC): 11 mm Premachined hole diameter – inch (PHD): 0.4331 inch Premachined hole diameter – millimeter (PHD): 11 mm Gross weight – grams: 168.4 ISO: E7101/4NO7 Ordering code ANSI: E7101/4NO7

Need Technical Advice?

Description

Additional information

Brand

DORMER
