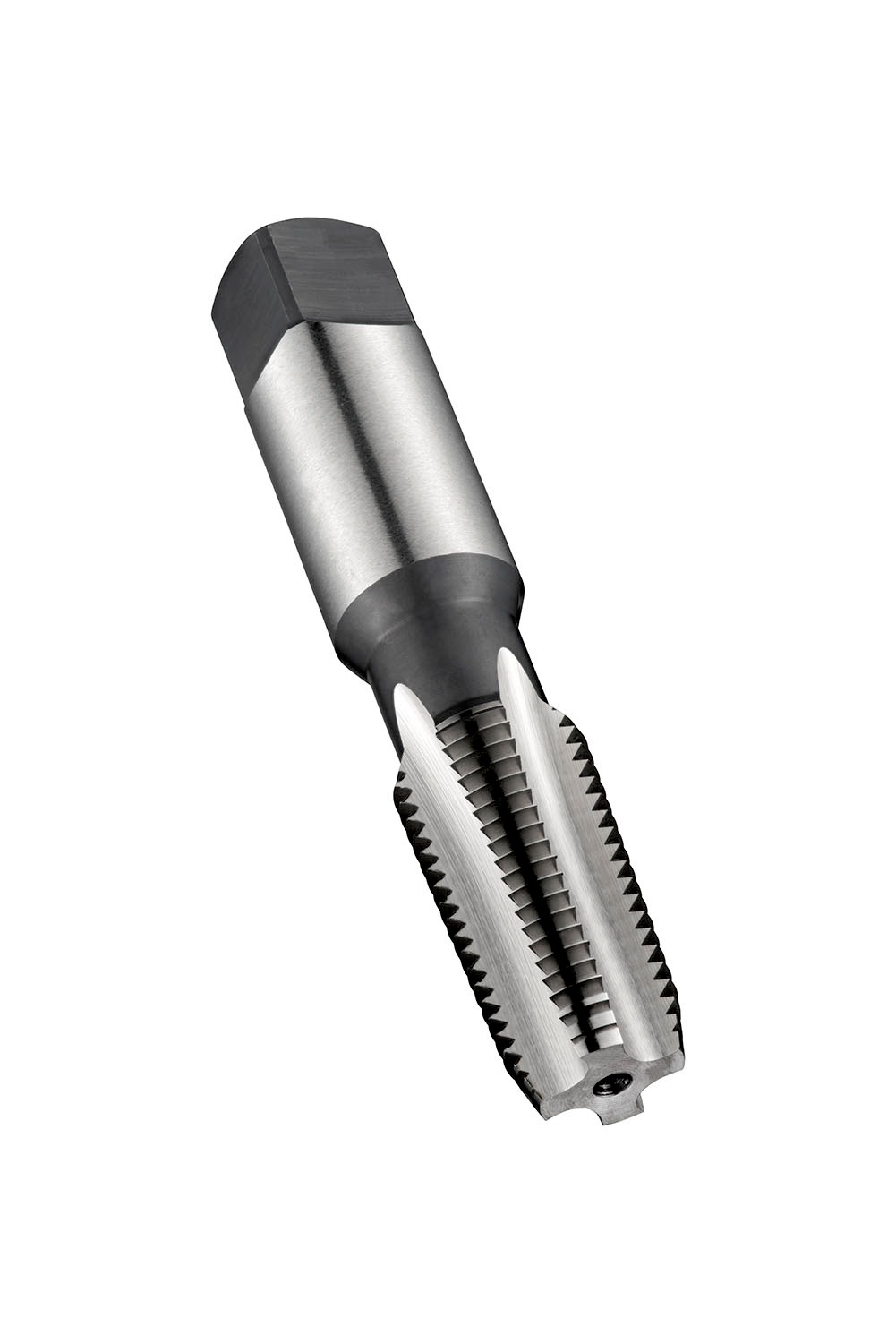

DORMER E7101/8NO7 NPT Taps

Description

Set of straight flute hand taps NO7 for National Pipe Taper thread NPT 1/8″ with 27 TPI and Normal class of fit, consisting of 1 tap with a 4-6xP second lead and 1 tap with a 2-3xP plug lead, dimensions according to ~ANSI B94.9 standard with 11.1mm shank and 8.3mm square drive, HSS with bright finish for 1.5xD through or blind hole threading in free machining and plain carbon steel and copper or copper alloys

Additional information

Weight	0.1430 kg
Dimensions
barcode
Additional Information	Description: Value Product name: E7101/8NO7 Product number (SAP): 86017285 EAN number: 7320760210314 Thread diameter size (TDZ): 1/8 Thread diameter – millimeter (TD): 10.29 mm Threads per inch (TPI): 27 Overall length – millimeter (OAL): 70 mm Overall length – inch (OAL): 2.7559 inch Threading length – millimeter (THL): 19 mm Threading length – inch (THL): 0.748 inch Connection diameter – inch (DCON MS): 0.437 inch Connection diameter – millimeter (DCON MS): 11.1 mm Flute count (NOF): 4 Tap chamfer length – millimeter (TCL): 11.9 mm Clamping width – inch (WSC): 0.3268 inch Clamping width – millimeter (WSC): 8.3 mm Clamping Length – inch (LCS): 0.3937 inch Clamping Length – millimeter (LSC): 10 mm Premachined hole diameter – inch (PHD): 0.3346 inch Premachined hole diameter – millimeter (PHD): 8.5 mm Gross weight – grams: 96.5 ISO: E7101/8NO7 Ordering code ANSI: E7101/8NO7

Need Technical Advice?

Description

Additional information

Brand

DORMER
