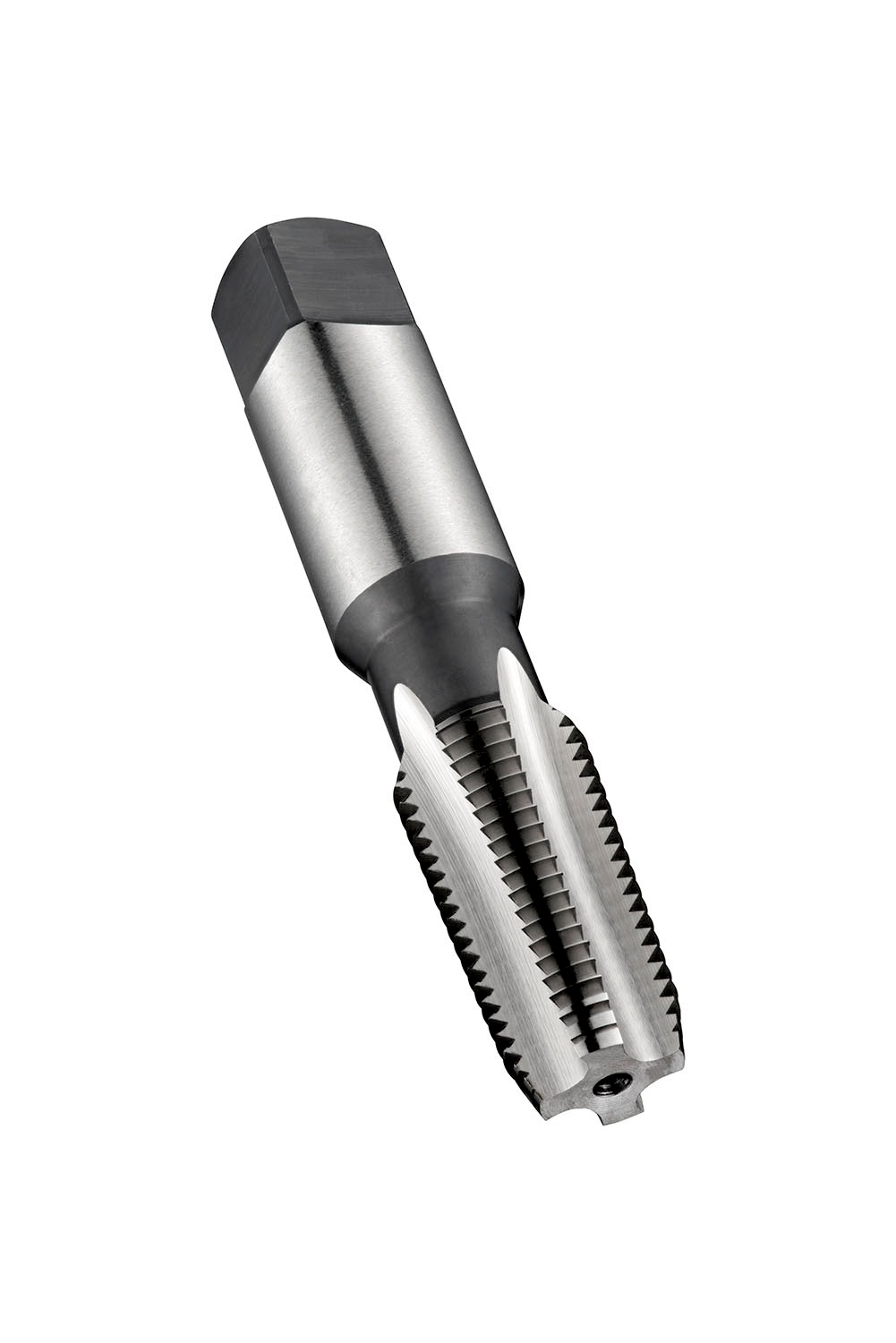

DORMER E7101 NPT Taps

Description: Value
Product name: E7101
Product number (SAP): 86017276
EAN number: 7320760099834
Thread diameter size (TDZ): 1"
Thread diameter – millimeter (TD): 33.4 mm
Threads per inch (TPI): 11.5
Overall length – millimeter (OAL): 115 mm
Overall length – inch (OAL): 4.5276 inch
Threading length – millimeter (THL): 43 mm
Threading length – inch (THL): 1.6929 inch
Connection diameter – inch (DCON MS): 1.126 inch
Connection diameter – millimeter (DCON MS): 28.6 mm
Flute count (NOF): 5
Tap chamfer length – millimeter (TCL): 29.4 mm
Clamping width – inch (WSC): 0.8425 inch
Clamping width – millimeter (WSC): 21.4 mm
Clamping Length – inch (LCS): 0.8268 inch
Clamping Length – millimeter (LSC): 21 mm
Premachined hole diameter – inch (PHD): 1.1417 inch
Premachined hole diameter – millimeter (PHD): 29 mm
Gross weight – grams: 487.8
ISO: E7101
Ordering code ANSI: E7101
