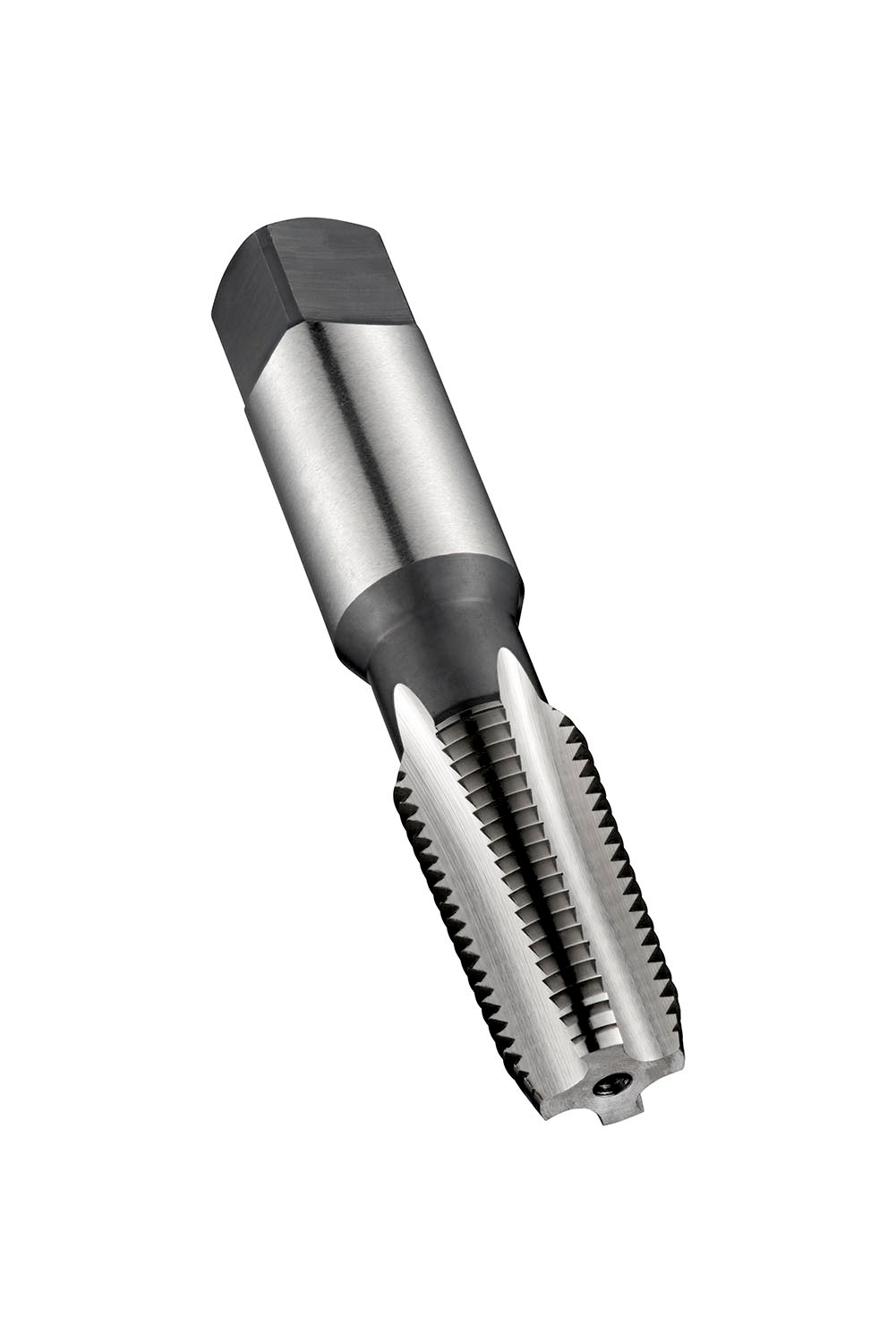

DORMER E7102 NPT Taps

Description: Value
Product name: E7102
Product number (SAP): 86017286
EAN number: 7320760099896
Thread diameter size (TDZ): 2"
Thread diameter – millimeter (TD): 60.33 mm
Threads per inch (TPI): 11.5
Overall length – millimeter (OAL): 145 mm
Overall length – inch (OAL): 5.7087 inch
Threading length – millimeter (THL): 43 mm
Threading length – inch (THL): 1.6929 inch
Connection diameter – inch (DCON MS): 1.874 inch
Connection diameter – millimeter (DCON MS): 47.6 mm
Flute count (NOF): 7
Tap chamfer length – millimeter (TCL): 26.6 mm
Clamping width – inch (WSC): 1.4055 inch
Clamping width – millimeter (WSC): 35.7 mm
Clamping Length – inch (LCS): 1.1417 inch
Clamping Length – millimeter (LSC): 29 mm
Premachined hole diameter – inch (PHD): 2.2047 inch
Premachined hole diameter – millimeter (PHD): 56 mm
Gross weight – grams: 2026.6
ISO: E7102
Ordering code ANSI: E7102
