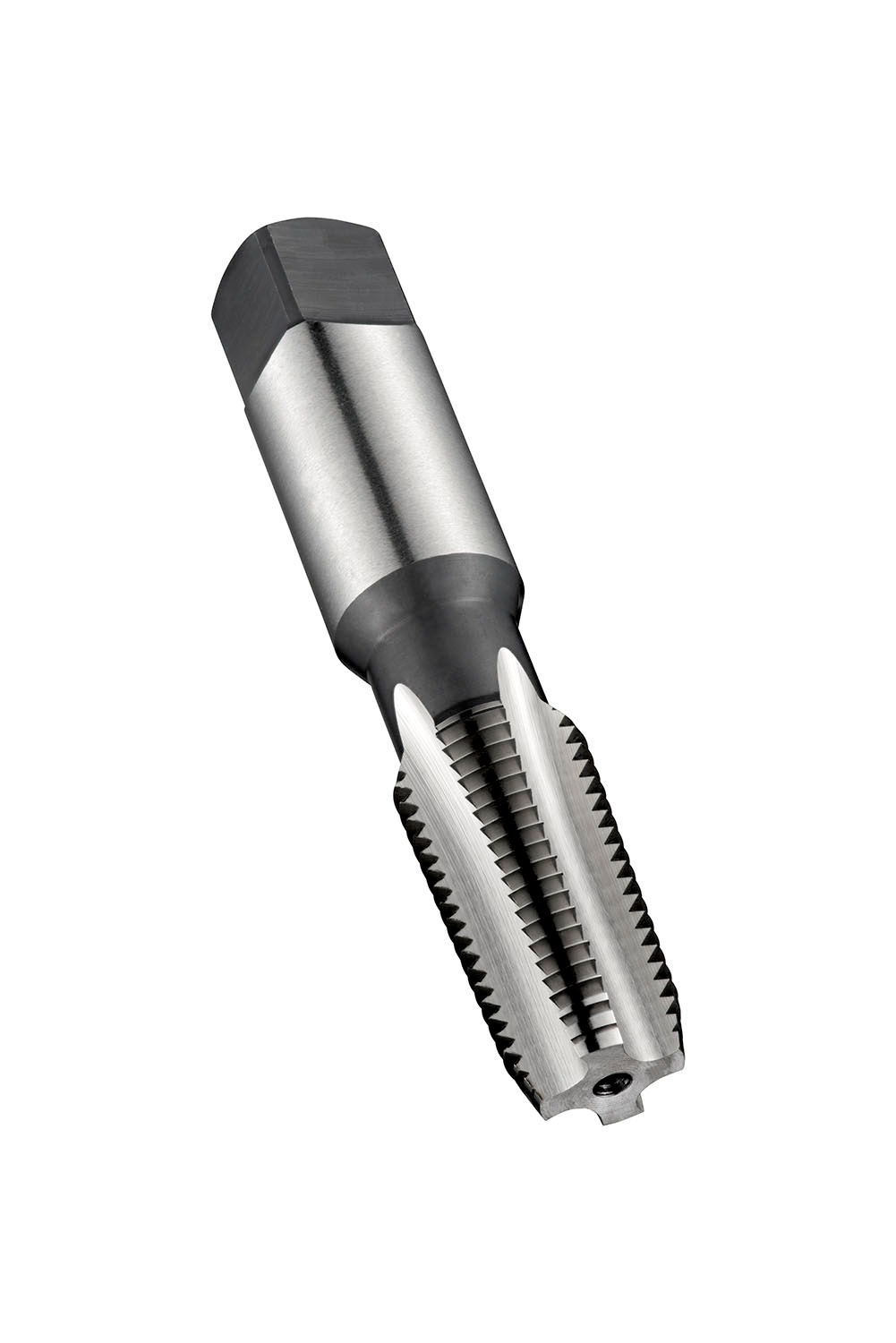

DORMER E7103/4 NPT Taps

Description: Value
Product name: E7103/4
Product number (SAP): 86017287
EAN number: 7320760099902
Thread diameter size (TDZ): 3/4
Thread diameter – millimeter (TD): 26.67 mm
Threads per inch (TPI): 14
Overall length – millimeter (OAL): 105 mm
Overall length – inch (OAL): 4.1339 inch
Threading length – millimeter (THL): 35 mm
Threading length – inch (THL): 1.378 inch
Connection diameter – inch (DCON MS): 0.9055 inch
Connection diameter – millimeter (DCON MS): 23 mm
Flute count (NOF): 5
Tap chamfer length – millimeter (TCL): 24.4 mm
Clamping width – inch (WSC): 0.6772 inch
Clamping width – millimeter (WSC): 17.2 mm
Clamping Length – inch (LCS): 0.6693 inch
Clamping Length – millimeter (LSC): 17 mm
Premachined hole diameter – inch (PHD): 0.9055 inch
Premachined hole diameter – millimeter (PHD): 23 mm
Gross weight – grams: 297.7
ISO: E7103/4
Ordering code ANSI: E7103/4
