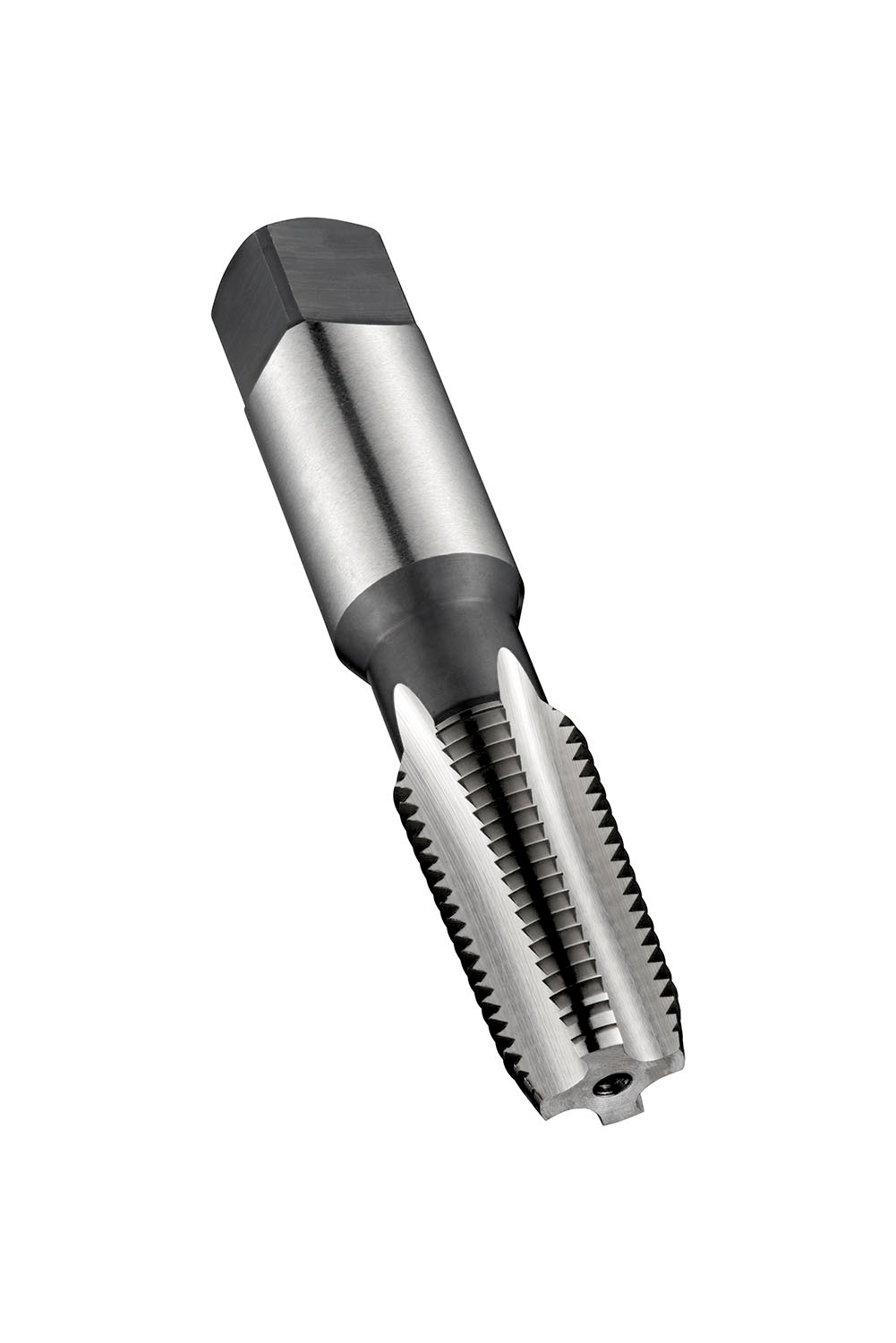

DORMER E7103/8 NPT Taps

Description: Value
Product name: E7103/8
Product number (SAP): 86017289
EAN number: 7320760099919
Thread diameter size (TDZ): 3/8
Thread diameter – millimeter (TD): 17.15 mm
Threads per inch (TPI): 18
Overall length – millimeter (OAL): 80 mm
Overall length – inch (OAL): 3.1496 inch
Threading length – millimeter (THL): 27 mm
Threading length – inch (THL): 1.063 inch
Connection diameter – inch (DCON MS): 0.7008 inch
Connection diameter – millimeter (DCON MS): 17.8 mm
Flute count (NOF): 4
Tap chamfer length – millimeter (TCL): 19.5 mm
Clamping width – inch (WSC): 0.5315 inch
Clamping width – millimeter (WSC): 13.5 mm
Clamping Length – inch (LCS): 0.5118 inch
Clamping Length – millimeter (LSC): 13 mm
Premachined hole diameter – inch (PHD): 0.5709 inch
Premachined hole diameter – millimeter (PHD): 14.5 mm
Gross weight – grams: 122.7
ISO: E7103/8
Ordering code ANSI: E7103/8
