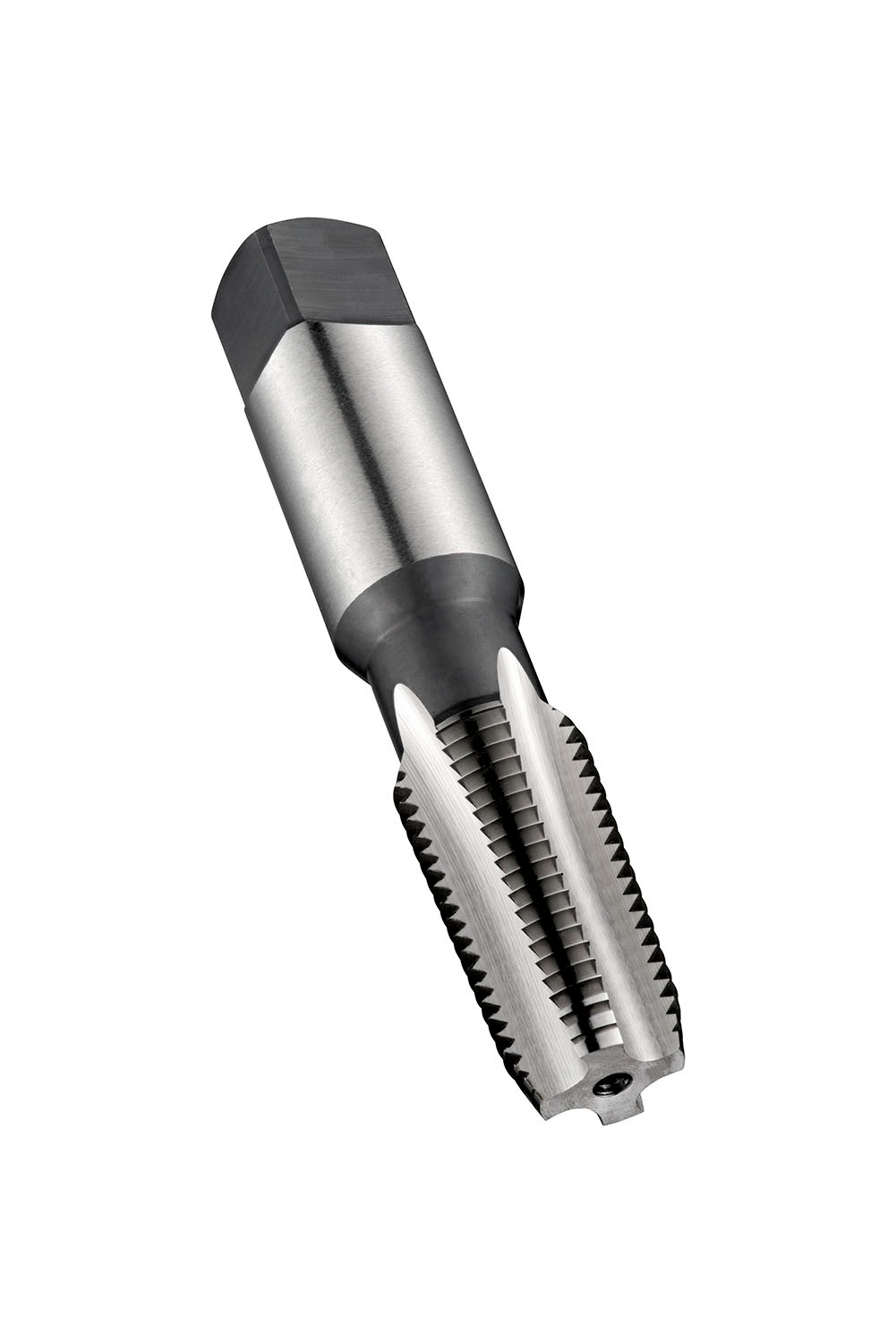

DORMER E7103/8NO7 NPT Taps

Description

Set of straight flute hand taps NO7 for National Pipe Taper thread NPT 3/8″ with 18 TPI and Normal class of fit, consisting of 1 tap with a 4-6xP second lead and 1 tap with a 2-3xP plug lead, dimensions according to ~ANSI B94.9 standard with 17.8mm shank and 13.5mm square drive, HSS with bright finish for 1.5xD through or blind hole threading in free machining and plain carbon steel and copper or copper alloys

Additional information

Weight	0.2849 kg
Dimensions
barcode
Additional Information	Description: Value Product name: E7103/8NO7 Product number (SAP): 86017290 EAN number: 7320760210338 Thread diameter size (TDZ): 3/8 Thread diameter – millimeter (TD): 17.15 mm Threads per inch (TPI): 18 Overall length – millimeter (OAL): 80 mm Overall length – inch (OAL): 3.1496 inch Threading length – millimeter (THL): 27 mm Threading length – inch (THL): 1.063 inch Connection diameter – inch (DCON MS): 0.7008 inch Connection diameter – millimeter (DCON MS): 17.8 mm Flute count (NOF): 4 Tap chamfer length – millimeter (TCL): 19.5 mm Clamping width – inch (WSC): 0.5315 inch Clamping width – millimeter (WSC): 13.5 mm Clamping Length – inch (LCS): 0.5118 inch Clamping Length – millimeter (LSC): 13 mm Premachined hole diameter – inch (PHD): 0.5709 inch Premachined hole diameter – millimeter (PHD): 14.5 mm Gross weight – grams: 266.4 ISO: E7103/8NO7 Ordering code ANSI: E7103/8NO7
