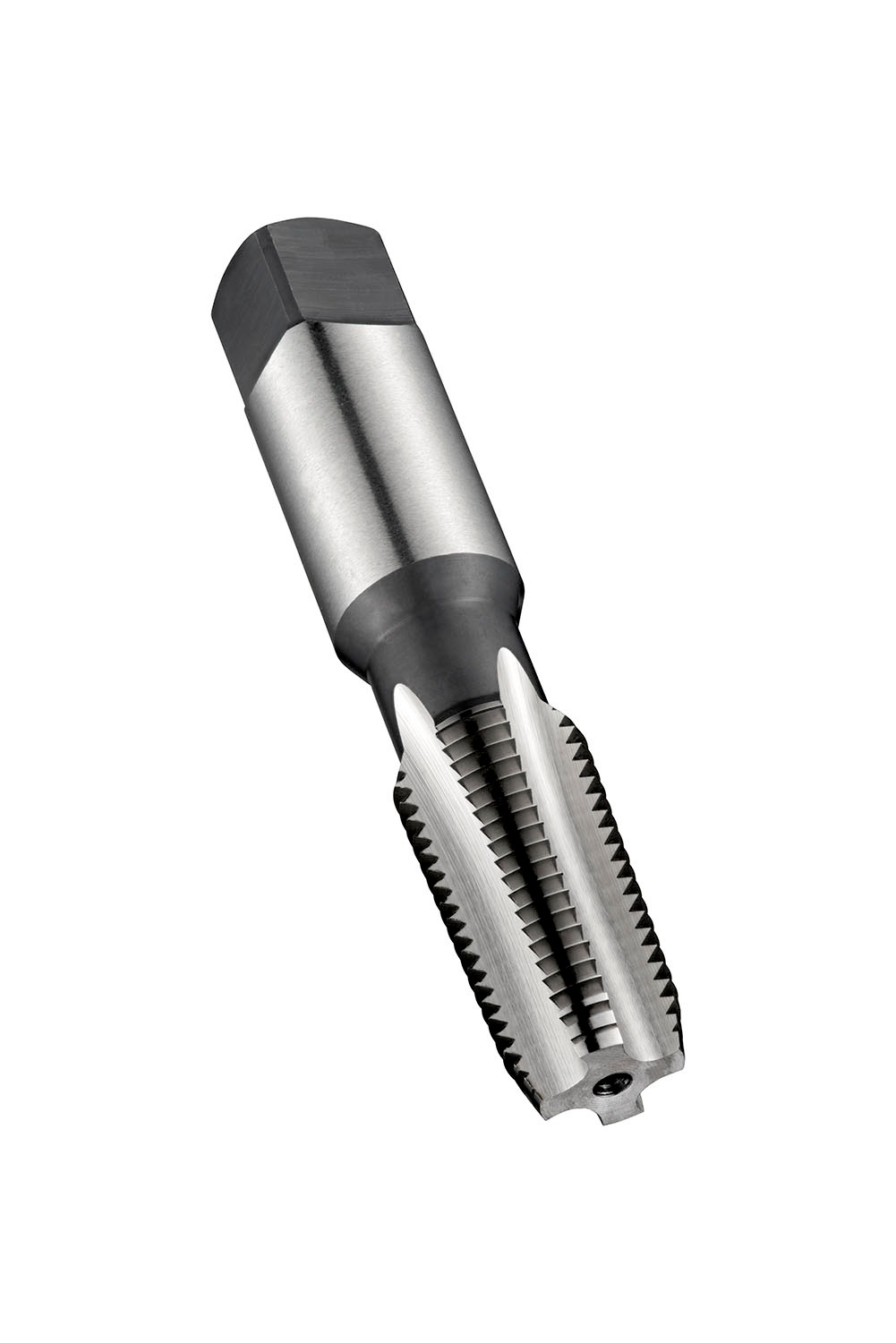

DORMER E7121/16 NPT Taps

Description: Value
Product name: E7121/16
Product number (SAP): 86017300
EAN number: 7320760100004
Thread diameter size (TDZ): 1/16
Thread diameter – millimeter (TD): 7.94 mm
Threads per inch (TPI): 27
Overall length – millimeter (OAL): 65 mm
Overall length – inch (OAL): 2.5591 inch
Threading length – millimeter (THL): 17 mm
Threading length – inch (THL): 0.6693 inch
Connection diameter – inch (DCON MS): 0.3189 inch
Connection diameter – millimeter (DCON MS): 8.1 mm
Flute count (NOF): 4
Tap chamfer length – millimeter (TCL): 11.7 mm
Clamping width – inch (WSC): 0.2362 inch
Clamping width – millimeter (WSC): 6 mm
Clamping Length – inch (LCS): 0.315 inch
Clamping Length – millimeter (LSC): 8 mm
Premachined hole diameter – inch (PHD): 0.2441 inch
Premachined hole diameter – millimeter (PHD): 6.2 mm
Gross weight – grams: 24.8
ISO: E7121/16
Ordering code ANSI: E7121/16
