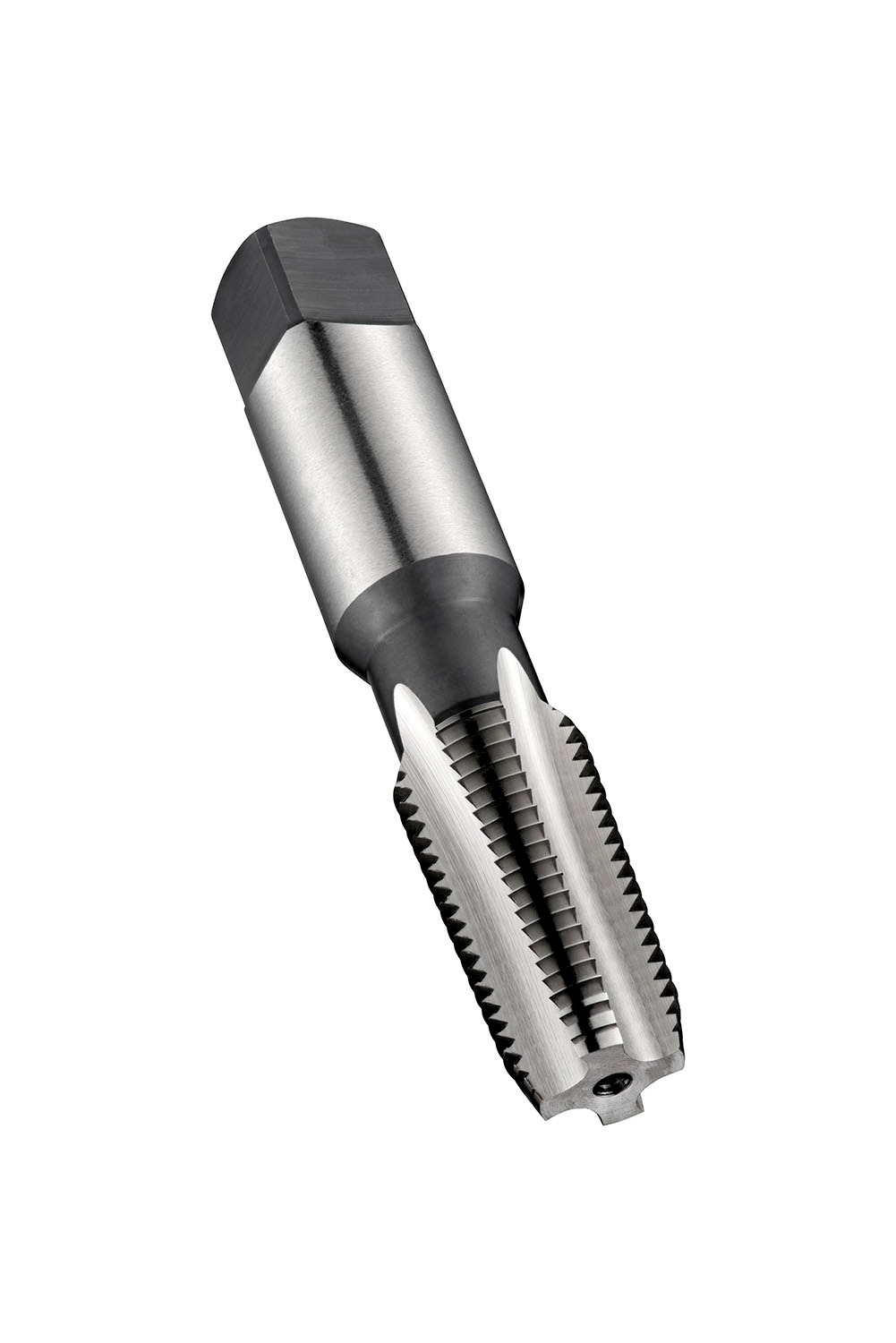

DORMER E7121/4 NPT Taps

Description

Straight flute tap with chamfer form C with a 2-3xP plug lead, for (Dryseal) National Pipe Taper thread for Fuel lines NPTF 1/4″ with 18 TPI and Normal class of fit, dimensions according to ~ANSI B94.9 standard with 14.3mm shank and 10.7mm square drive, HSS with bright finish for 1.5xD through or blind hole threading in free machining and plain carbon steel and copper or copper alloys

Additional information

Weight	0.1166 kg
Dimensions
barcode
Additional Information	Description: Value Product name: E7121/4 Product number (SAP): 86017302 EAN number: 7320760100028 Thread diameter size (TDZ): 1/4 Thread diameter – millimeter (TD): 13.72 mm Threads per inch (TPI): 18 Overall length – millimeter (OAL): 75 mm Overall length – inch (OAL): 2.9528 inch Threading length – millimeter (THL): 27 mm Threading length – inch (THL): 1.063 inch Connection diameter – inch (DCON MS): 0.563 inch Connection diameter – millimeter (DCON MS): 14.3 mm Flute count (NOF): 4 Tap chamfer length – millimeter (TCL): 17.6 mm Clamping width – inch (WSC): 0.4213 inch Clamping width – millimeter (WSC): 10.7 mm Clamping Length – inch (LCS): 0.4331 inch Clamping Length – millimeter (LSC): 11 mm Premachined hole diameter – inch (PHD): 0.4291 inch Premachined hole diameter – millimeter (PHD): 10.9 mm Gross weight – grams: 71.3 ISO: E7121/4 Ordering code ANSI: E7121/4

Need Technical Advice?

Description

Additional information

Brand

DORMER
