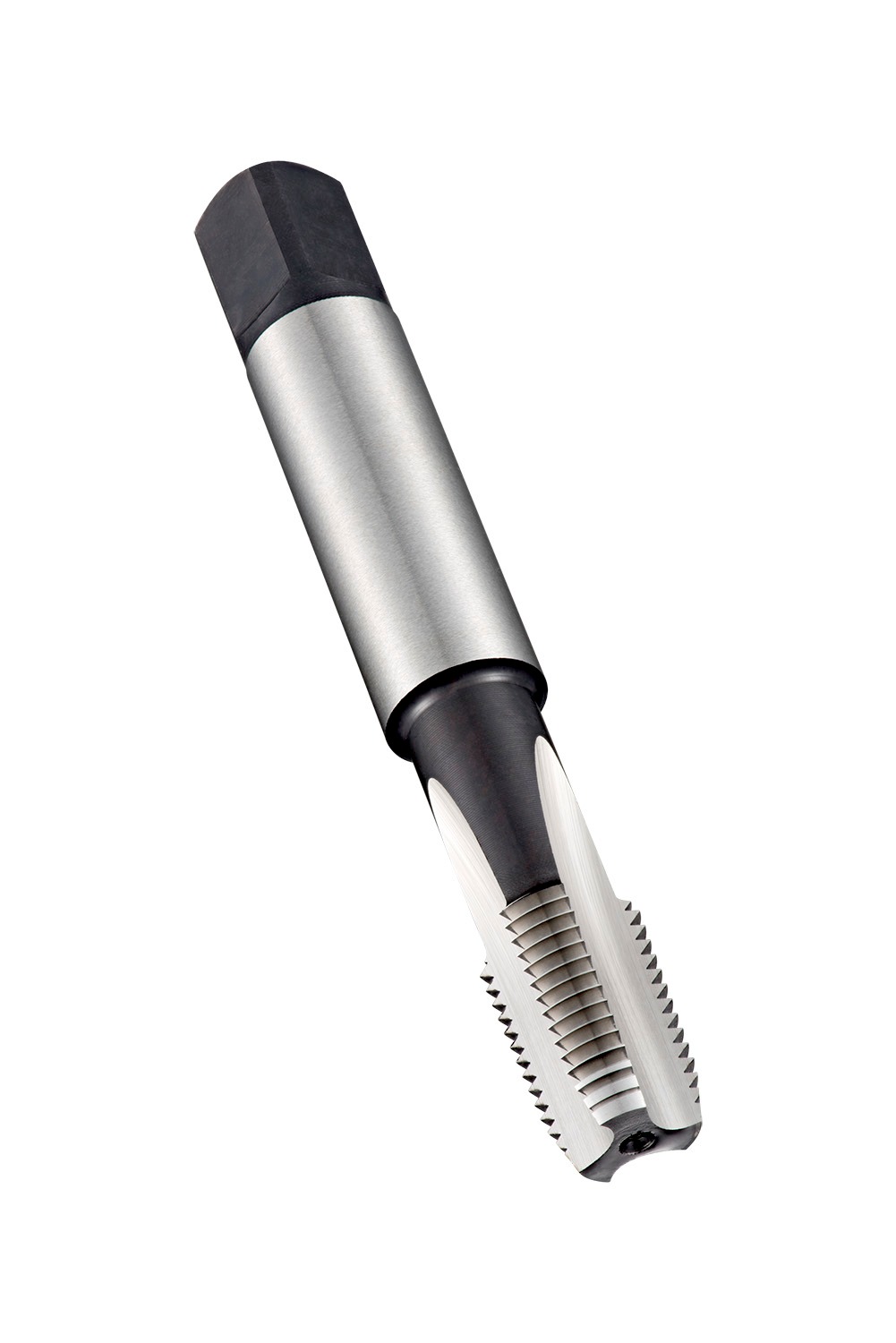

DORMER E7141 HSS / HSCo DIN Taps

Description

Straight flute tap with chamfer form C with a 2-3xP plug lead, for National Pipe Taper thread NPT 1″ with 11.5 TPI and Normal class of fit, dimensions according to DORMER-ANSI standard with 28.0mm shank and 22.0mm square drive, powder metallurgical HSS-E with bright finish for 1.5xD through or blind hole threading in free machining, plain carbon and alloy steel and copper or copper alloys

Additional information

Weight	0.5522 kg
Dimensions
barcode
Additional Information	Description: Value Product name: E7141 Product number (SAP): 86017306 EAN number: 7320760127599 Thread diameter size (TDZ): 1" Thread diameter – millimeter (TD): 33.2 mm Threads per inch (TPI): 11.5 Overall length – millimeter (OAL): 150 mm Overall length – inch (OAL): 5.9055 inch Threading length – millimeter (THL): 31 mm Threading length – inch (THL): 1.2205 inch Connection diameter – inch (DCON MS): 1.1024 inch Connection diameter – millimeter (DCON MS): 28 mm Flute count (NOF): 5 Clamping width – inch (WSC): 0.8661 inch Clamping width – millimeter (WSC): 22 mm Clamping Length – inch (LCS): 0.9843 inch Clamping Length – millimeter (LSC): 25 mm Premachined hole diameter – inch (PHD): 1.1417 inch Premachined hole diameter – millimeter (PHD): 29 mm Gross weight – grams: 679 ISO: E7141 Ordering code ANSI: E7141

Need Technical Advice?

Description

Additional information

Brand

DORMER
