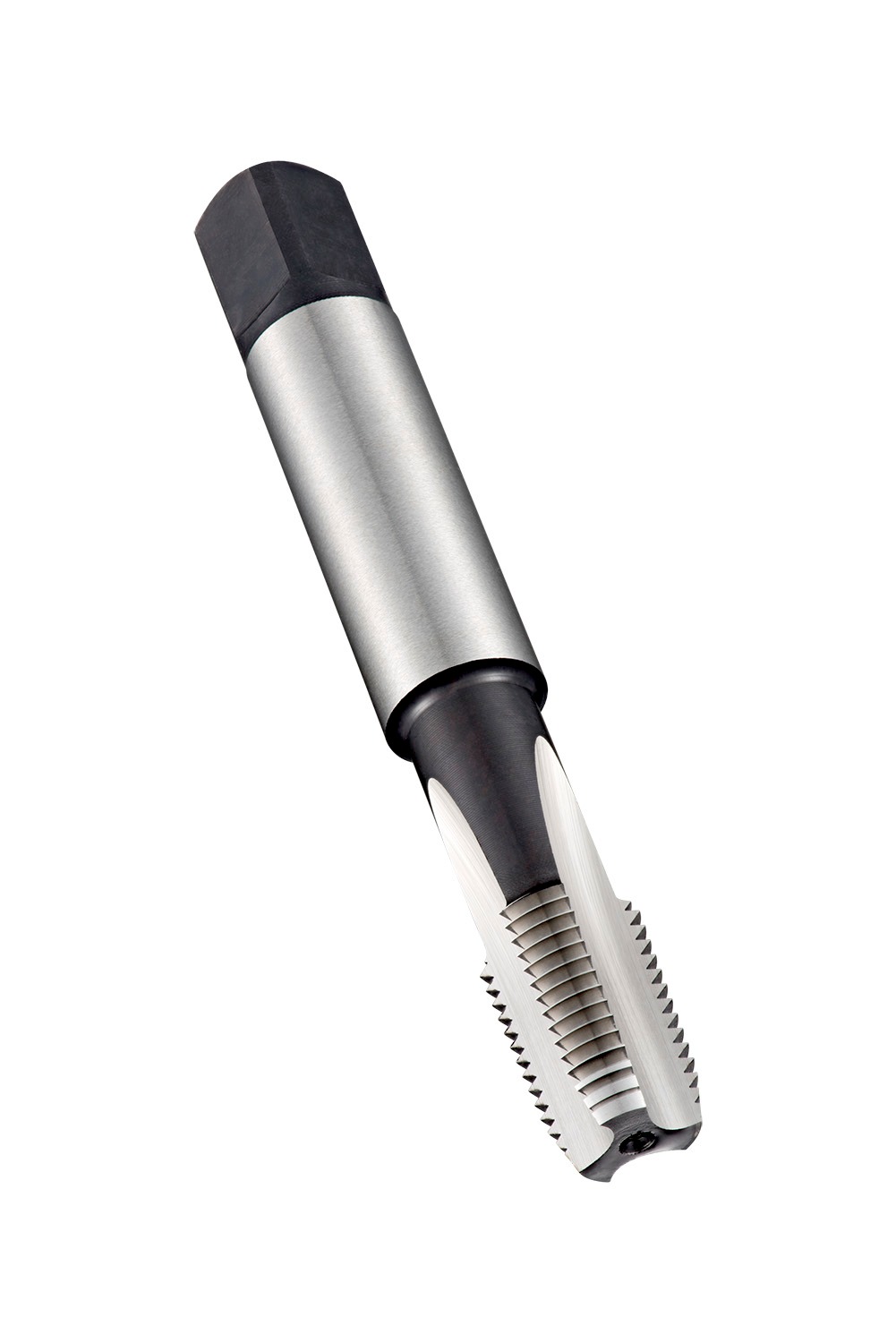

DORMER E7143/4 HSS / HSCo DIN Taps

Description: Value
Product name: E7143/4
Product number (SAP): 86017310
EAN number: 7320760127681
Thread diameter size (TDZ): 3/4
Thread diameter – millimeter (TD): 26.54 mm
Threads per inch (TPI): 14
Overall length – millimeter (OAL): 140 mm
Overall length – inch (OAL): 5.5118 inch
Threading length – millimeter (THL): 26 mm
Threading length – inch (THL): 1.0236 inch
Connection diameter – inch (DCON MS): 0.8661 inch
Connection diameter – millimeter (DCON MS): 22 mm
Flute count (NOF): 5
Clamping width – inch (WSC): 0.7087 inch
Clamping width – millimeter (WSC): 18 mm
Clamping Length – inch (LCS): 0.8268 inch
Clamping Length – millimeter (LSC): 21 mm
Premachined hole diameter – inch (PHD): 0.9055 inch
Premachined hole diameter – millimeter (PHD): 23 mm
Gross weight – grams: 400.1
ISO: E7143/4
Ordering code ANSI: E7143/4
