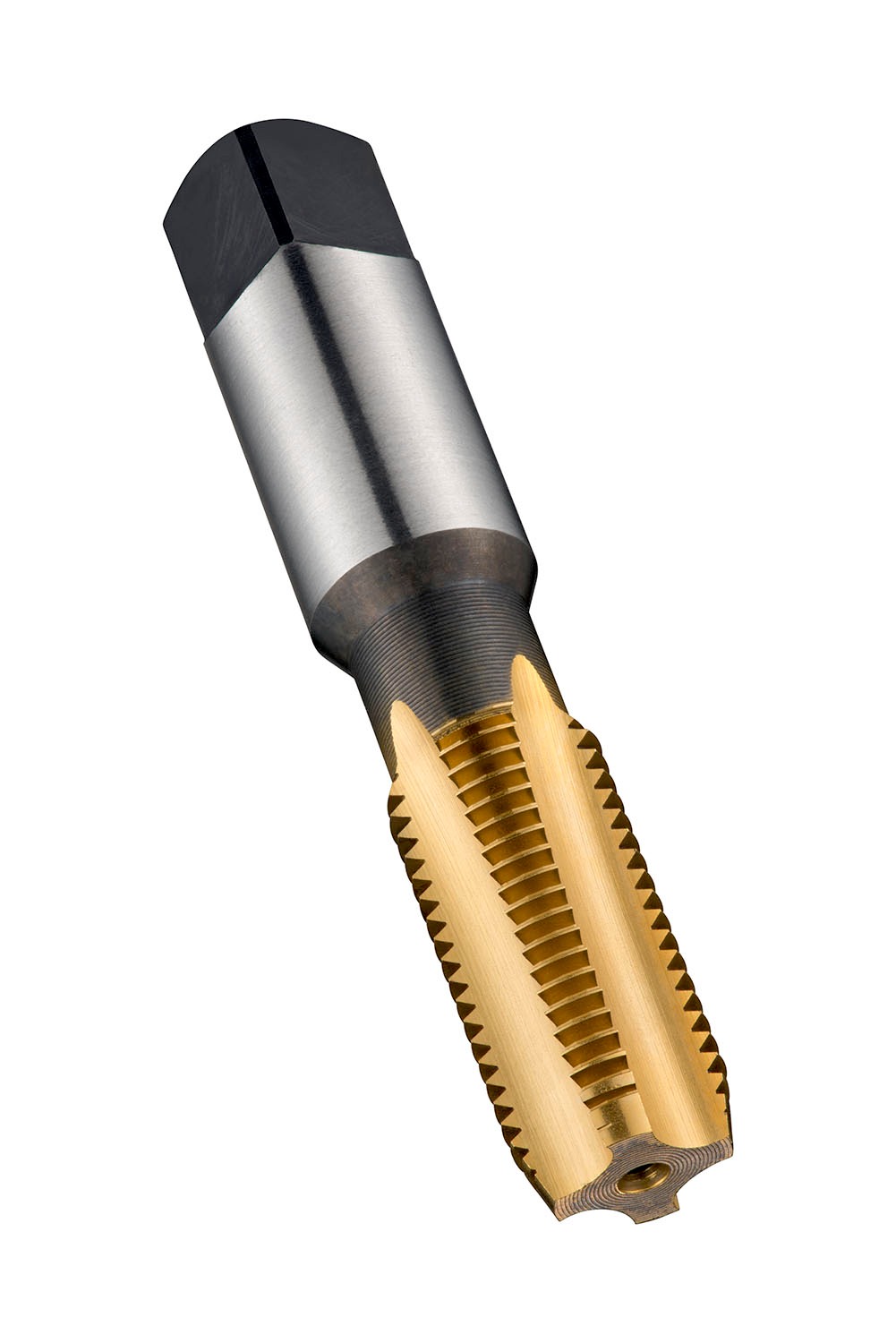

DORMER E7201/8NO3 NPT Taps

Description: Value
Product name: E7201/8NO3
Product number (SAP): 86017314
EAN number: 7320760161524
Thread diameter size (TDZ): 1/8
Thread diameter – millimeter (TD): 10.29 mm
Threads per inch (TPI): 27
Overall length – millimeter (OAL): 70 mm
Overall length – inch (OAL): 2.7559 inch
Threading length – millimeter (THL): 19 mm
Threading length – inch (THL): 0.748 inch
Connection diameter – inch (DCON MS): 0.437 inch
Connection diameter – millimeter (DCON MS): 11.1 mm
Flute count (NOF): 4
Usable Length – inch (LU): 0.748 inch
Usable Length – millimeter (LU): 19 mm
Clamping width – inch (WSC): 0.3268 inch
Clamping width – millimeter (WSC): 8.3 mm
Clamping Length – inch (LCS): 0.3937 inch
Clamping Length – millimeter (LSC): 10 mm
Premachined hole diameter – inch (PHD): 0.3425 inch
Premachined hole diameter – millimeter (PHD): 8.7 mm
Gross weight – grams: 45.5
ISO: E7201/8NO3
Ordering code ANSI: E7201/8NO3
