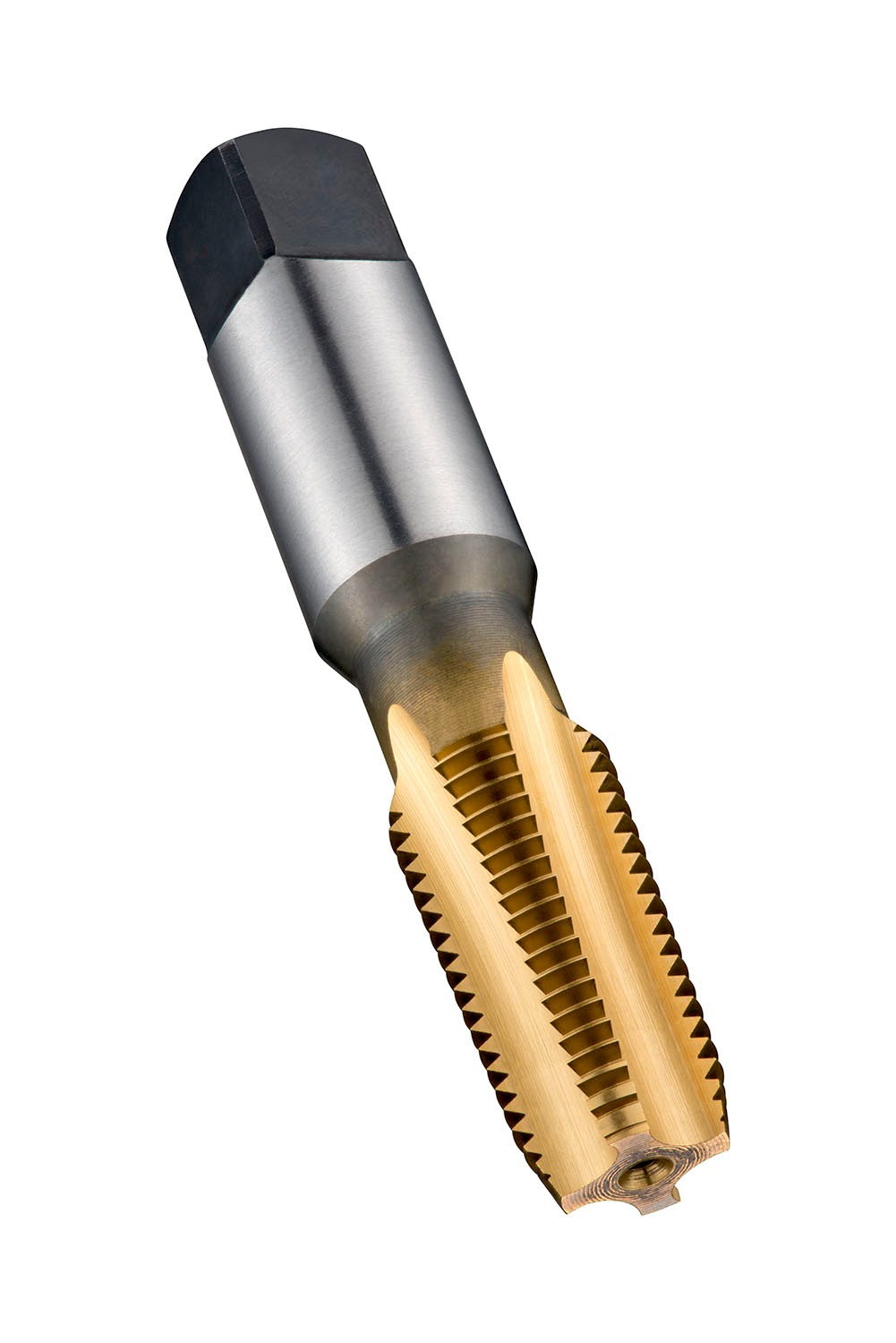

DORMER E7211 NPT Taps

Description

Straight flute tap with chamfer form C with a 2-3xP plug lead, for National Pipe Taper thread NPT 1″ with 11.5 TPI and Normal class of fit, dimensions according to ~ANSI B94.9 standard with 28.6mm shank and 21.4mm square drive, HSS with TiN coating for 1.5xD through or blind hole threading in free machining and tool steel, cast-iron and copper or copper alloys

Additional information

Weight	0.7040 kg
Dimensions
barcode
Additional Information	Description: Value Product name: E7211 Product number (SAP): 86017317 EAN number: 7320760161517 Thread diameter size (TDZ): 1" Thread diameter – millimeter (TD): 33.4 mm Threads per inch (TPI): 11.5 Overall length – millimeter (OAL): 115 mm Overall length – inch (OAL): 4.5276 inch Threading length – millimeter (THL): 43 mm Threading length – inch (THL): 1.6929 inch Connection diameter – inch (DCON MS): 1.126 inch Connection diameter – millimeter (DCON MS): 28.6 mm Flute count (NOF): 5 Tap chamfer length – millimeter (TCL): 29.4 mm Clamping width – inch (WSC): 0.8425 inch Clamping width – millimeter (WSC): 21.4 mm Clamping Length – inch (LCS): 0.8268 inch Clamping Length – millimeter (LSC): 21 mm Premachined hole diameter – inch (PHD): 1.1417 inch Premachined hole diameter – millimeter (PHD): 29 mm Gross weight – grams: 505 ISO: E7211 Ordering code ANSI: E7211

Need Technical Advice?

Description

Additional information

Brand

DORMER
