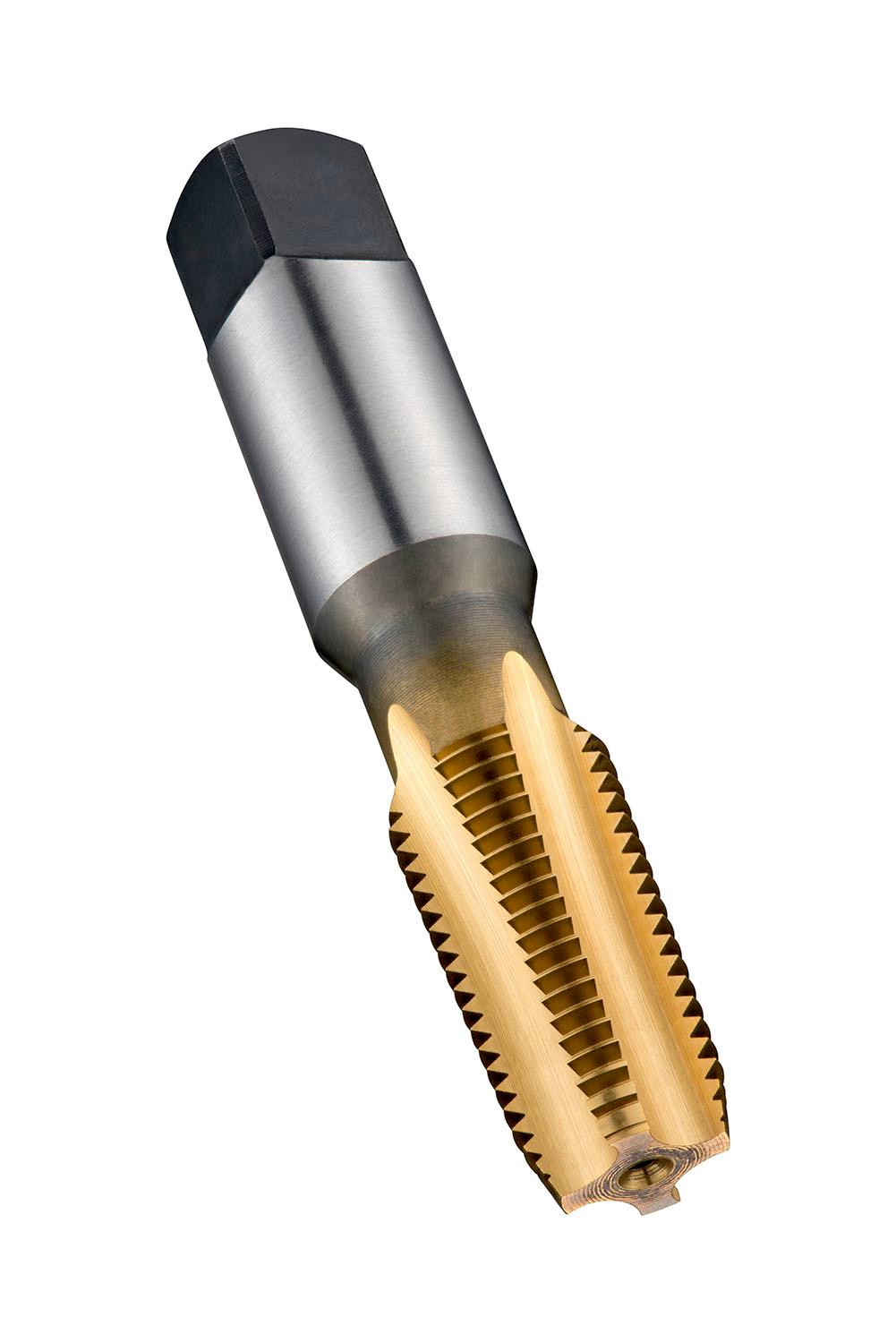

DORMER E7213/4 NPT Taps

Description

Straight flute tap with chamfer form C with a 2-3xP plug lead, for National Pipe Taper thread NPT 3/4″ with 14 TPI and Normal class of fit, dimensions according to ~ANSI B94.9 standard with 23.0mm shank and 17.2mm square drive, HSS with TiN coating for 1.5xD through or blind hole threading in free machining and tool steel, cast-iron and copper or copper alloys

Additional information

Weight	0.4213 kg
Dimensions
barcode
Additional Information	Description: Value Product name: E7213/4 Product number (SAP): 86017321 EAN number: 7320760161500 Thread diameter size (TDZ): 3/4 Thread diameter – millimeter (TD): 26.67 mm Threads per inch (TPI): 14 Overall length – millimeter (OAL): 105 mm Overall length – inch (OAL): 4.1339 inch Threading length – millimeter (THL): 35 mm Threading length – inch (THL): 1.378 inch Connection diameter – inch (DCON MS): 0.9055 inch Connection diameter – millimeter (DCON MS): 23 mm Flute count (NOF): 5 Tap chamfer length – millimeter (TCL): 24.4 mm Clamping width – inch (WSC): 0.6772 inch Clamping width – millimeter (WSC): 17.2 mm Clamping Length – inch (LCS): 0.6693 inch Clamping Length – millimeter (LSC): 17 mm Premachined hole diameter – inch (PHD): 0.9055 inch Premachined hole diameter – millimeter (PHD): 23 mm Gross weight – grams: 294.1 ISO: E7213/4 Ordering code ANSI: E7213/4

Need Technical Advice?

Description

Additional information

Brand

DORMER
