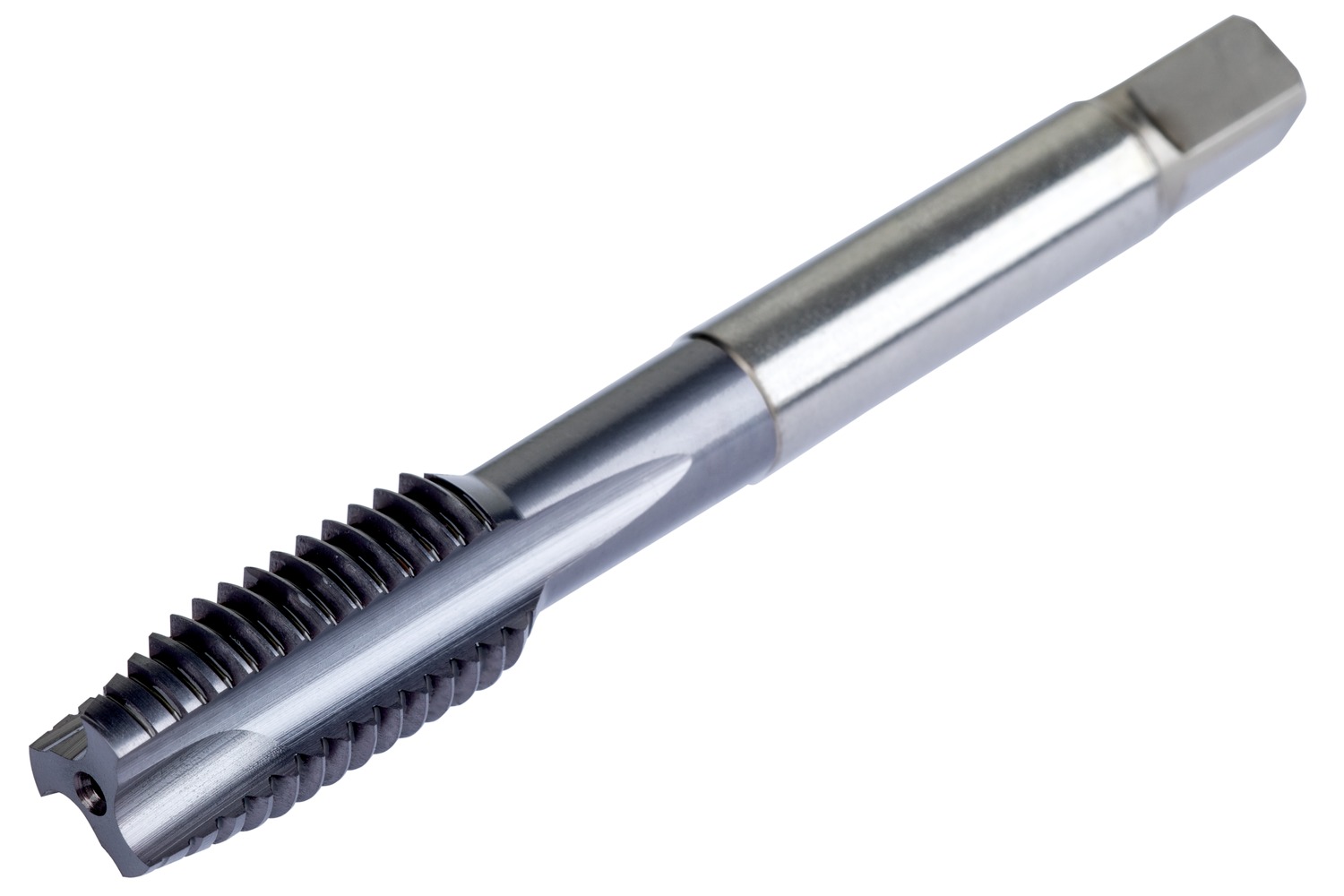

DORMER E897M12 HSS / HSCo DIN Taps

Description

Thread size M12 mm x 1.75 mm, with thread tolerance class 93707, and maximum threading depth 30 mm.

Weight	0.0450 kg
Dimensions
barcode	3603607096536
Additional Information	Description: Value Product name: E897M12 Product number (SAP): 86046900 EAN number: 3603607096536 Thread diameter size (TDZ): 12 Thread diameter – millimeter (TD): 12 mm Thread pitch – millimeter (TP): 1.75 mm Overall length – millimeter (OAL): 82 mm Overall length – inch (OAL): 3.228 inch Threading length – millimeter (THL): 23 mm Threading length – inch (THL): 0.906 inch Connection diameter – inch (DCON MS): 0.335 inch Connection diameter – millimeter (DCON MS): 8.5 mm Flute count (NOF): 4 Tolerance limit: OH5 Clamping width – inch (WSC): 0.256 inch Clamping width – millimeter (WSC): 6.5 mm Clamping Length – inch (LCS): 0.354 inch Clamping Length – millimeter (LSC): 9 mm Premachined hole diameter – inch (PHD): 0.406 inch Premachined hole diameter – millimeter (PHD): 10.3 mm Gross weight – grams: 45 ISO: E897M12
