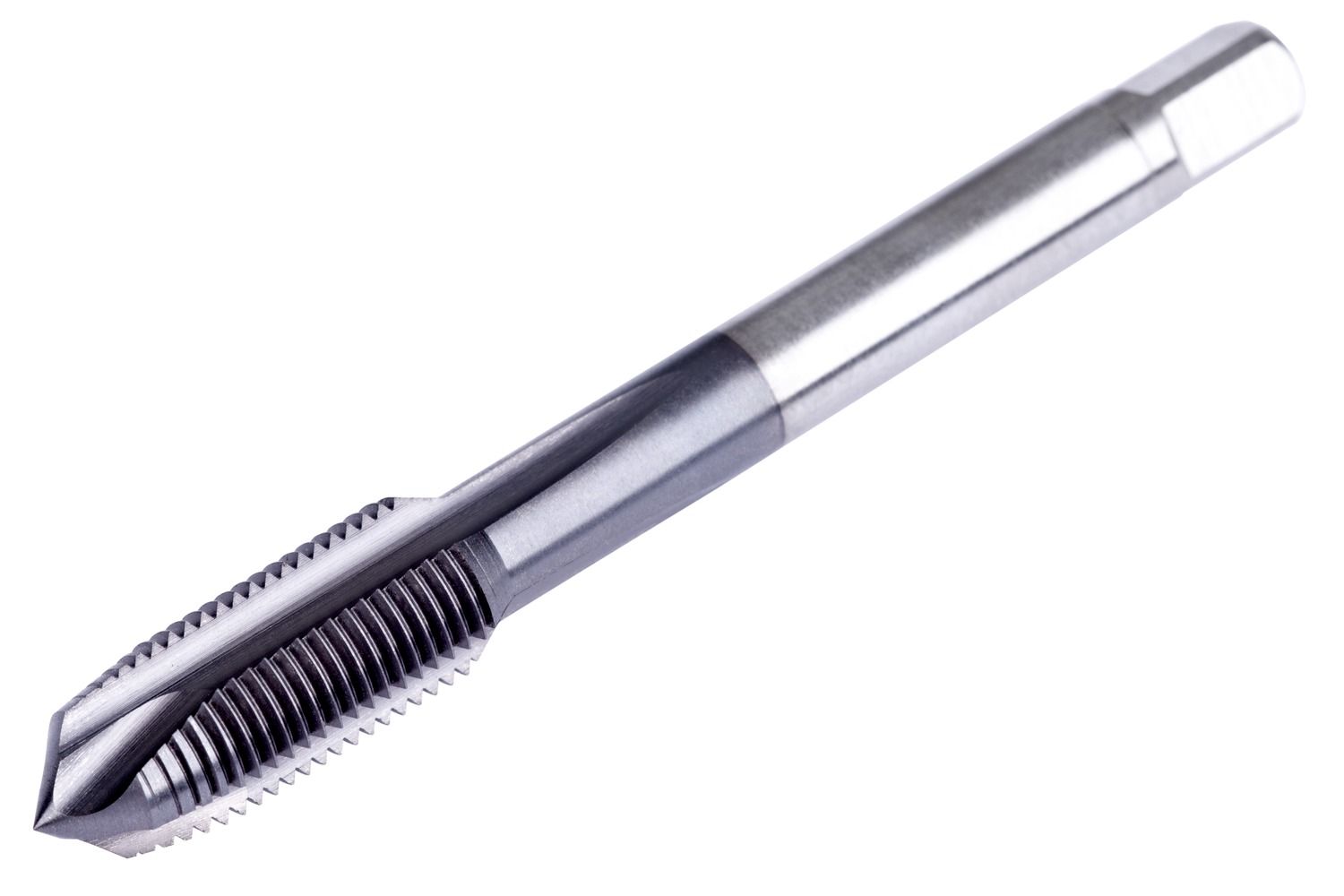

DORMER E897M14X1.5 HSS / HSCo DIN Taps

Description

Thread size MF14 mm x 1.5 mm, with thread tolerance class 93707, and maximum threading depth 35 mm.

Weight	0.0570 kg
Dimensions
barcode	3603607096703
Additional Information	Description: Value Product name: E897M14X1.5 Product number (SAP): 86046917 EAN number: 3603607096703 Thread diameter size (TDZ): 14 Thread diameter – millimeter (TD): 14 mm Thread pitch – millimeter (TP): 1.5 mm Overall length – millimeter (OAL): 88 mm Overall length – inch (OAL): 3.465 inch Threading length – millimeter (THL): 21 mm Threading length – inch (THL): 0.827 inch Connection diameter – inch (DCON MS): 0.413 inch Connection diameter – millimeter (DCON MS): 10.5 mm Flute count (NOF): 4 Tolerance limit: OH5 Clamping width – inch (WSC): 0.315 inch Clamping width – millimeter (WSC): 8 mm Clamping Length – inch (LCS): 0.433 inch Clamping Length – millimeter (LSC): 11 mm Premachined hole diameter – inch (PHD): 0.492 inch Premachined hole diameter – millimeter (PHD): 12.5 mm Gross weight – grams: 63.9 ISO: E897M14X1.5
