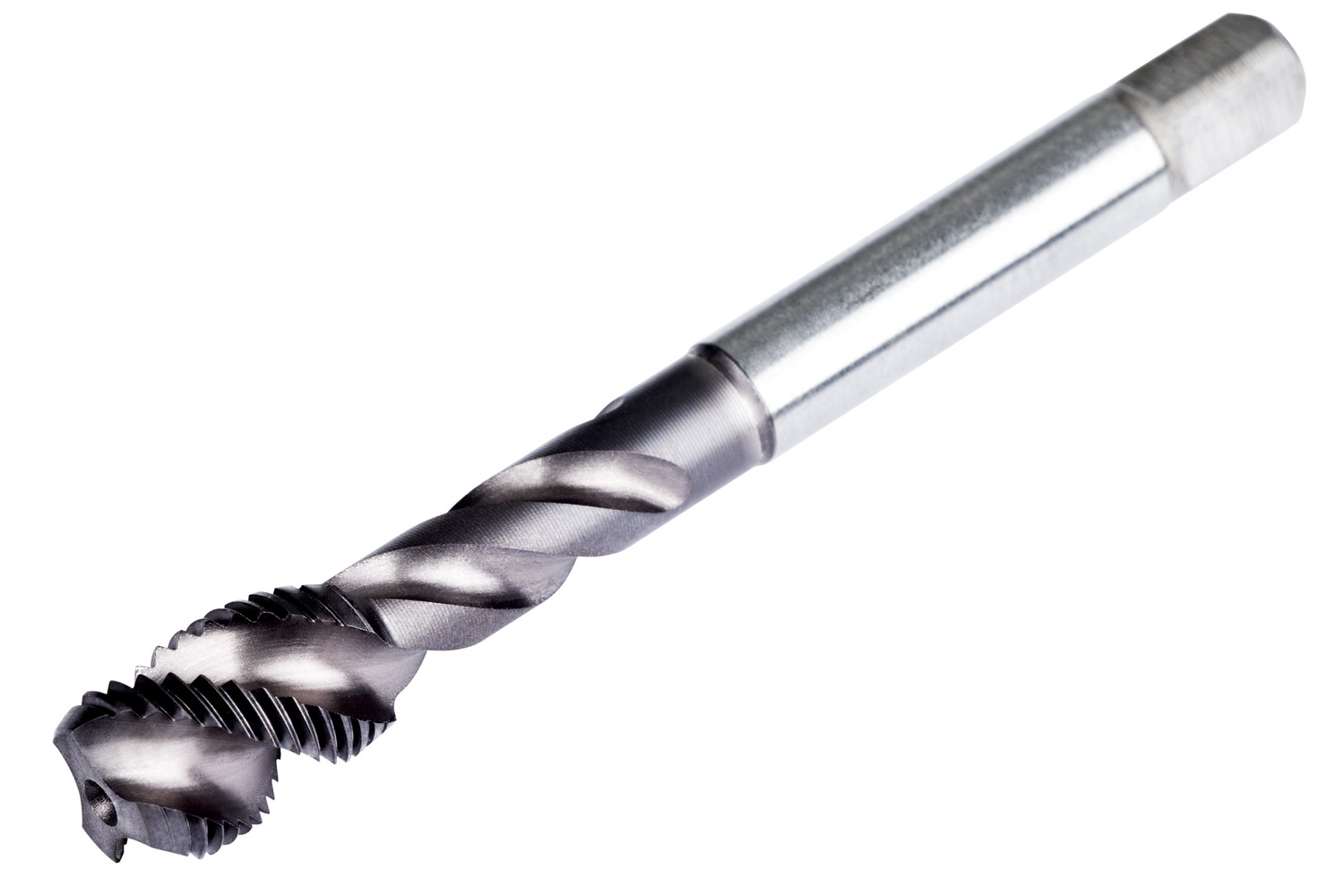

Home » Shop » CUTTING TOOLS (HSS & Carbide) » Threading » DORMER E898M10X1.25 HSS / HSCo DIN Taps
$106.50$96.82 Ex. GST
Thread size MF10 mm x 1.25 mm, with thread tolerance class 93707, and maximum threading depth 25 mm.
3603607096741
Description: Value Product name: E898M10X1.25 Product number (SAP): 86046921 EAN number: 3603607096741 Thread diameter size (TDZ): 10 Thread diameter – millimeter (TD): 10 mm Thread pitch – millimeter (TP): 1.25 mm Overall length – millimeter (OAL): 75 mm Overall length – inch (OAL): 2.953 inch Threading length – millimeter (THL): 15 mm Threading length – inch (THL): 0.591 inch Connection diameter – inch (DCON MS): 0.276 inch Connection diameter – millimeter (DCON MS): 7 mm Flute count (NOF): 3 Tolerance limit: OH4 Clamping width – inch (WSC): 0.217 inch Clamping width – millimeter (WSC): 5.5 mm Clamping Length – inch (LCS): 0.315 inch Clamping Length – millimeter (LSC): 8 mm Premachined hole diameter – inch (PHD): 0.346 inch Premachined hole diameter – millimeter (PHD): 8.8 mm Gross weight – grams: 26 ISO: E898M10X1.25
