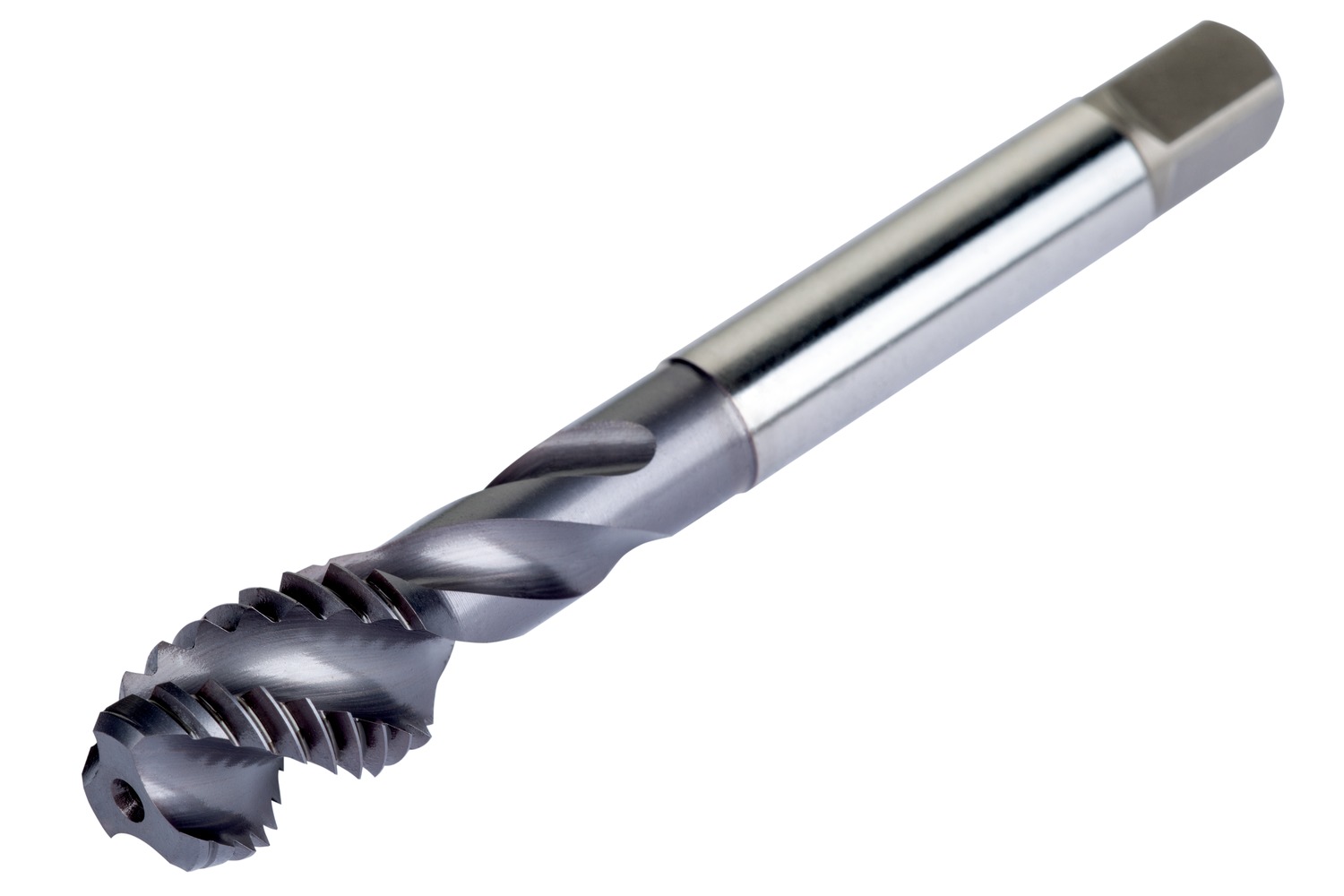

Home » Shop » CUTTING TOOLS (HSS & Carbide) » Threading » DORMER E898M20 HSS / HSCo DIN Taps
$260.59$236.90 Ex. GST
Thread size M20 mm x 2.5 mm, with thread tolerance class 93707, and maximum threading depth 50 mm.
3603607096642
Description: Value Product name: E898M20 Product number (SAP): 86046911 EAN number: 3603607096642 Thread diameter size (TDZ): 20 Thread diameter – millimeter (TD): 20 mm Thread pitch – millimeter (TP): 2.5 mm Overall length – millimeter (OAL): 105 mm Overall length – inch (OAL): 4.134 inch Threading length – millimeter (THL): 25 mm Threading length – inch (THL): 0.984 inch Connection diameter – inch (DCON MS): 0.591 inch Connection diameter – millimeter (DCON MS): 15 mm Flute count (NOF): 4 Tolerance limit: OH6 Clamping width – inch (WSC): 0.472 inch Clamping width – millimeter (WSC): 12 mm Clamping Length – inch (LCS): 0.591 inch Clamping Length – millimeter (LSC): 15 mm Premachined hole diameter – inch (PHD): 0.689 inch Premachined hole diameter – millimeter (PHD): 17.5 mm Gross weight – grams: 143.5 ISO: E898M20
