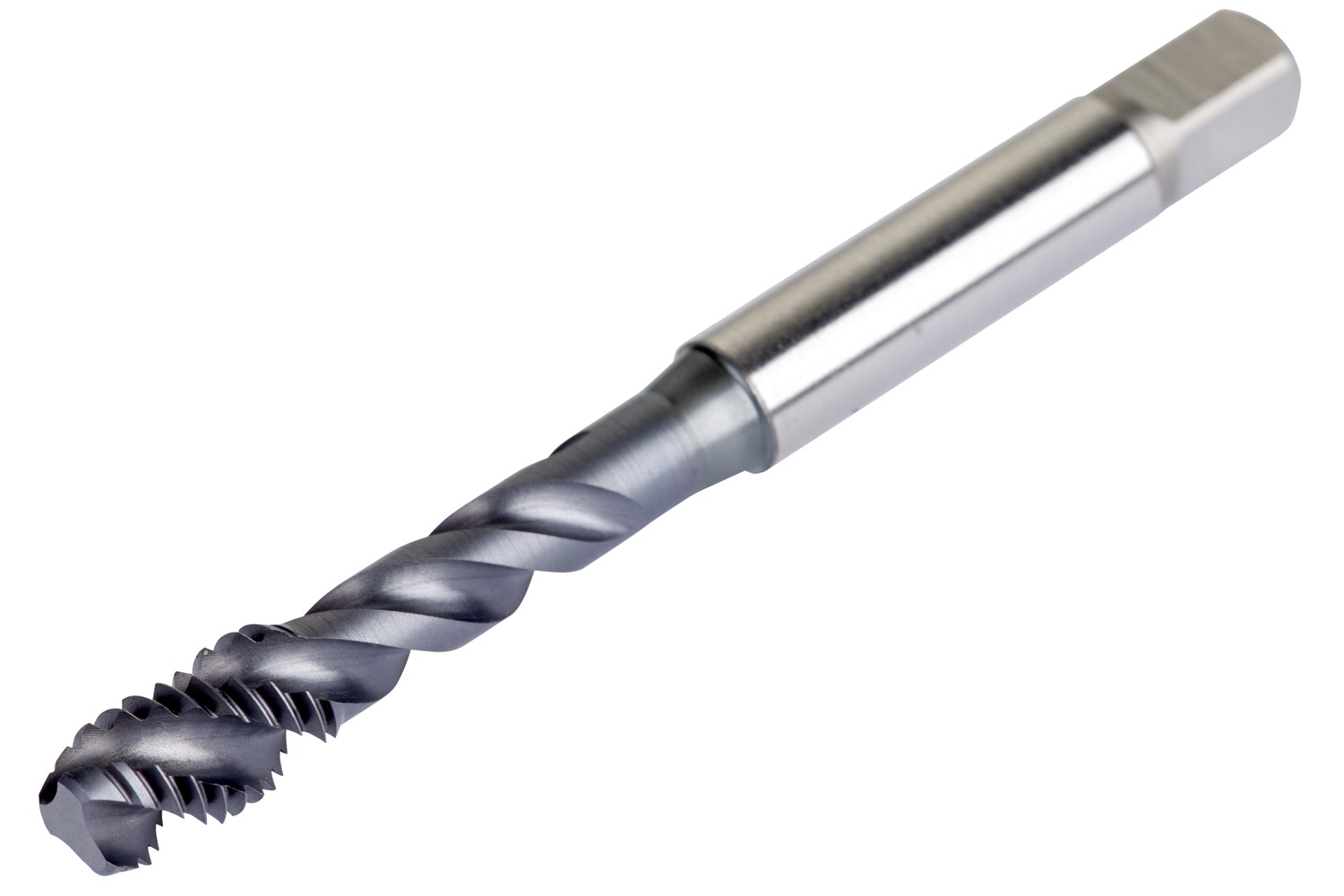

Home » Shop » CUTTING TOOLS (HSS & Carbide) » Threading » DORMER E898M5 HSS / HSCo DIN Taps
$66.29$60.26 Ex. GST
Thread size M5 mm x 0.8 mm, with thread tolerance class 93707, and maximum threading depth 12.5 mm.
3603607096581
Description: Value Product name: E898M5 Product number (SAP): 86046905 EAN number: 3603607096581 Thread diameter size (TDZ): 5 Thread diameter – millimeter (TD): 5 mm Thread pitch – millimeter (TP): 0.8 mm Overall length – millimeter (OAL): 60 mm Overall length – inch (OAL): 2.362 inch Threading length – millimeter (THL): 8 mm Threading length – inch (THL): 0.315 inch Connection diameter – inch (DCON MS): 0.217 inch Connection diameter – millimeter (DCON MS): 5.5 mm Flute count (NOF): 3 Tolerance limit: OH3 Usable Length – inch (LU): 0.984 inch Usable Length – millimeter (LU): 25 mm Clamping width – inch (WSC): 0.177 inch Clamping width – millimeter (WSC): 4.5 mm Clamping Length – inch (LCS): 0.276 inch Clamping Length – millimeter (LSC): 7 mm Premachined hole diameter – inch (PHD): 0.165 inch Premachined hole diameter – millimeter (PHD): 4.2 mm Gross weight – grams: 11.3 ISO: E898M5
